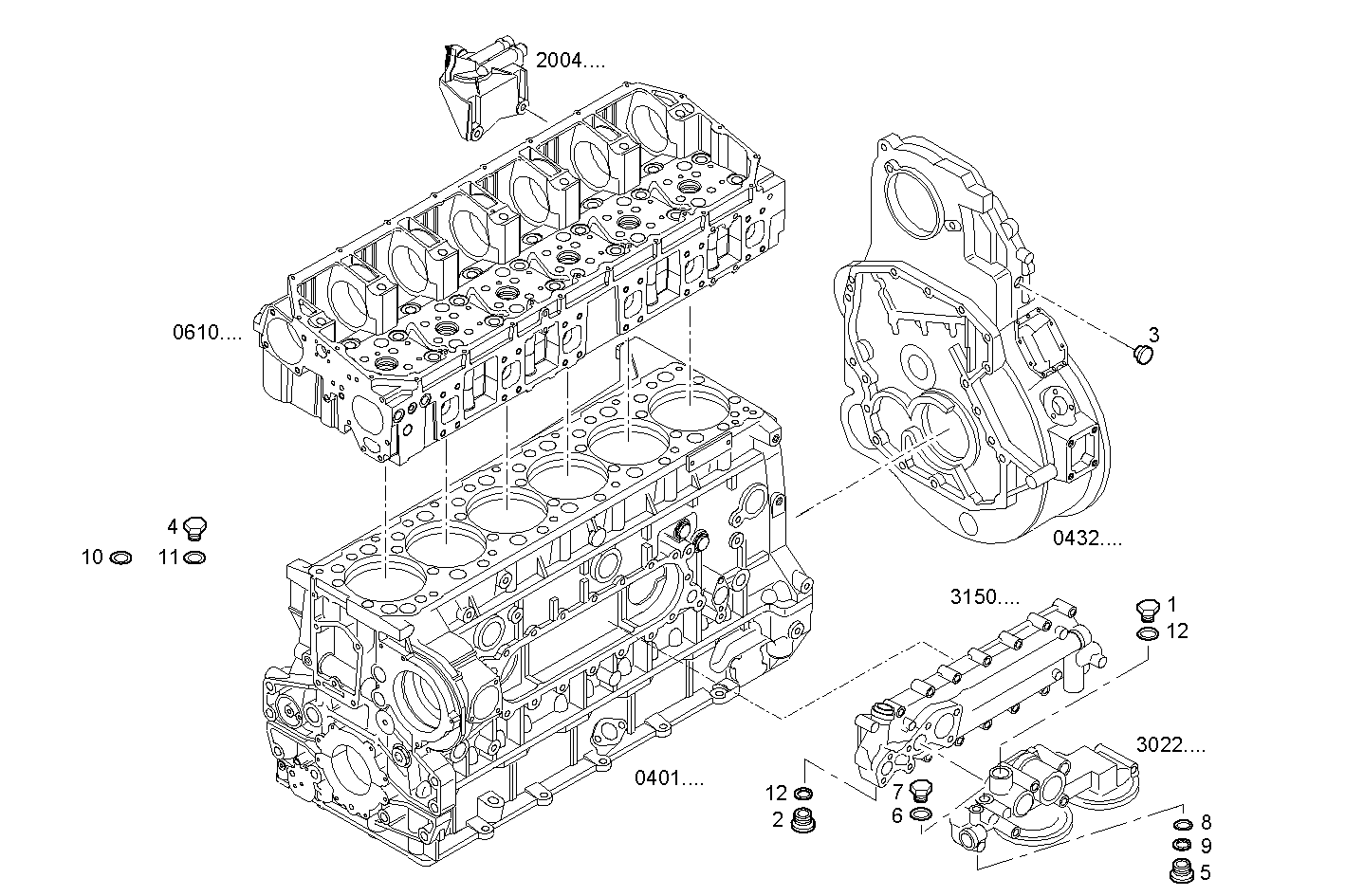

SENSORS

Assembly ID: 1712.026

SENSORS

Parts

# Part number Description Note Quantity
1 504084571 THREADED PLUG 1
2 10300611 LOCK PLUG 1
3 504051237 THREADED PLUG 1
4 16992211 THREADED PLUG 1
5 500337200 THREADED PLUG 1
6 99489019 WASHER 1
7 16992415 THREADED PLUG 1
8 17278181 O-RING 1
9 500337199 O-RING 1
10 17277881 O-RING 1
11 99489017 SEAL GASKET 1
12 99489018 SEAL GASKET 2

Applies to engines

Engine Family
F3BE0685A*B101 CURSOR 13 - 2002/88/CE view
C13ENTA60.00 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A001 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.S550 CURSOR 13 - 2002/88/CE view
GECURSOR400EA.A001 GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.R990 GECURSOR 13 - 2002/88/CE view
C13ENTA61.00 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A001 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A004 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.S550 CURSOR 13 - 2002/88/CE view
GECURSOR350EA.A001 GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.R990 GECURSOR 13 - 2002/88/CE view
F3AE0687A*B302 CURSOR 10 - TIER 2 view
C10ENTD20.20 CURSOR 10 - TIER 2 view
F3BE0687A*B302 CURSOR 13 - TIER 2 view
C13ENTD20.20 CURSOR 13 - TIER 2 view
PUC13ENTD20.20A100 CURSOR 13 - TIER 2 view
