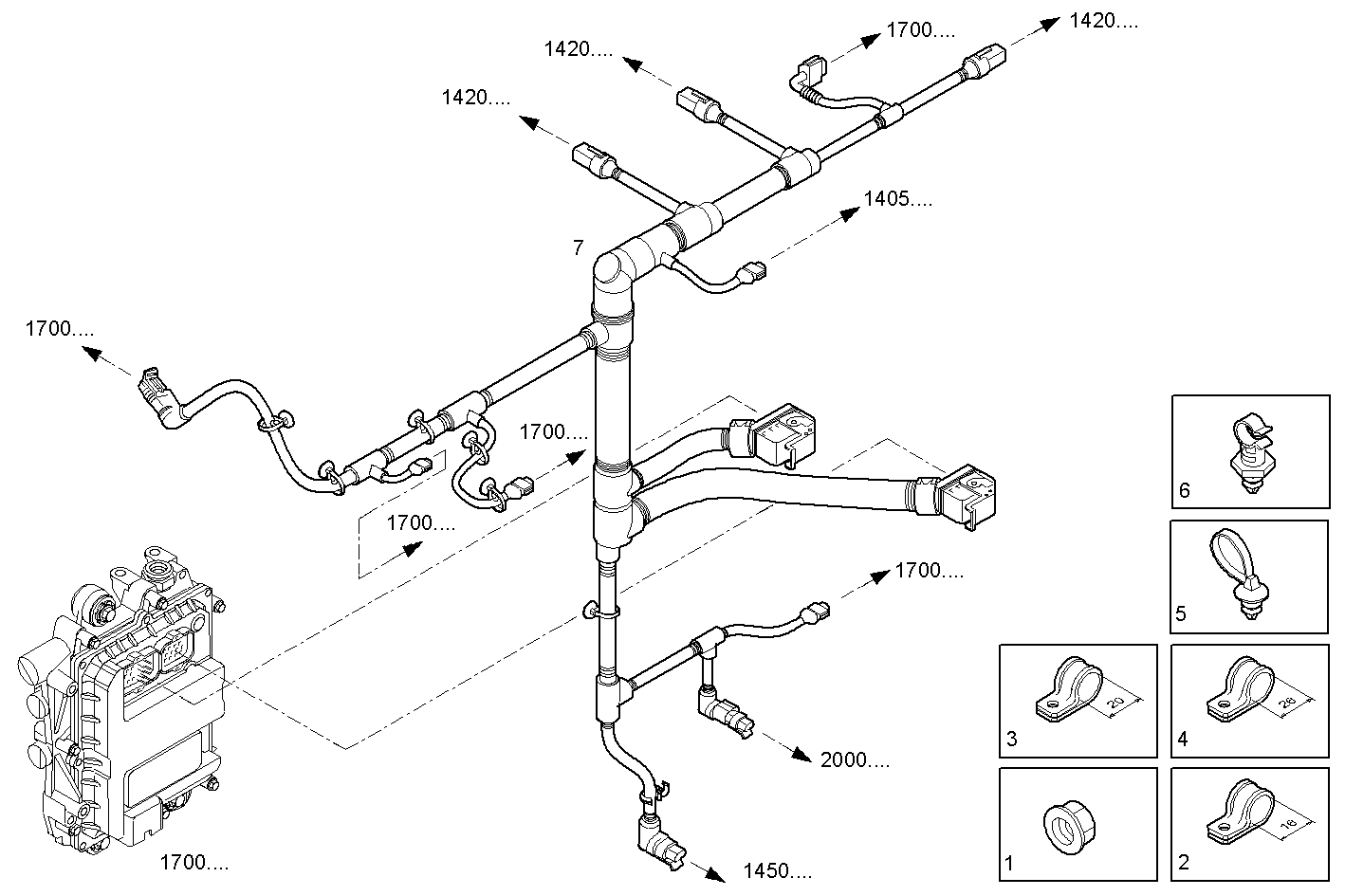

ENGINE CABLE
Assembly ID: 1730.029
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 17044625 | HEXAGON NUT | 3 | ||
| 2 | 17315192 | FASTENING BRACKET | 1 | ||
| 3 | 17315390 | FASTENING BRACKET | 1 | ||
| 4 | 17315690 | FASTENING BRACKET | 1 | ||
| 5 | 17316592 | PIPE CLIP | 1 | ||
| 6 | 504063553 | SPRING CLAMP | 1 | ||
| 7 | 504152576 | ENGINE HARNESS | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4HE9684A*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684X*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687E*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687B*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684A*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J102 | NEF 6 electron. - TIER 3 | view |
