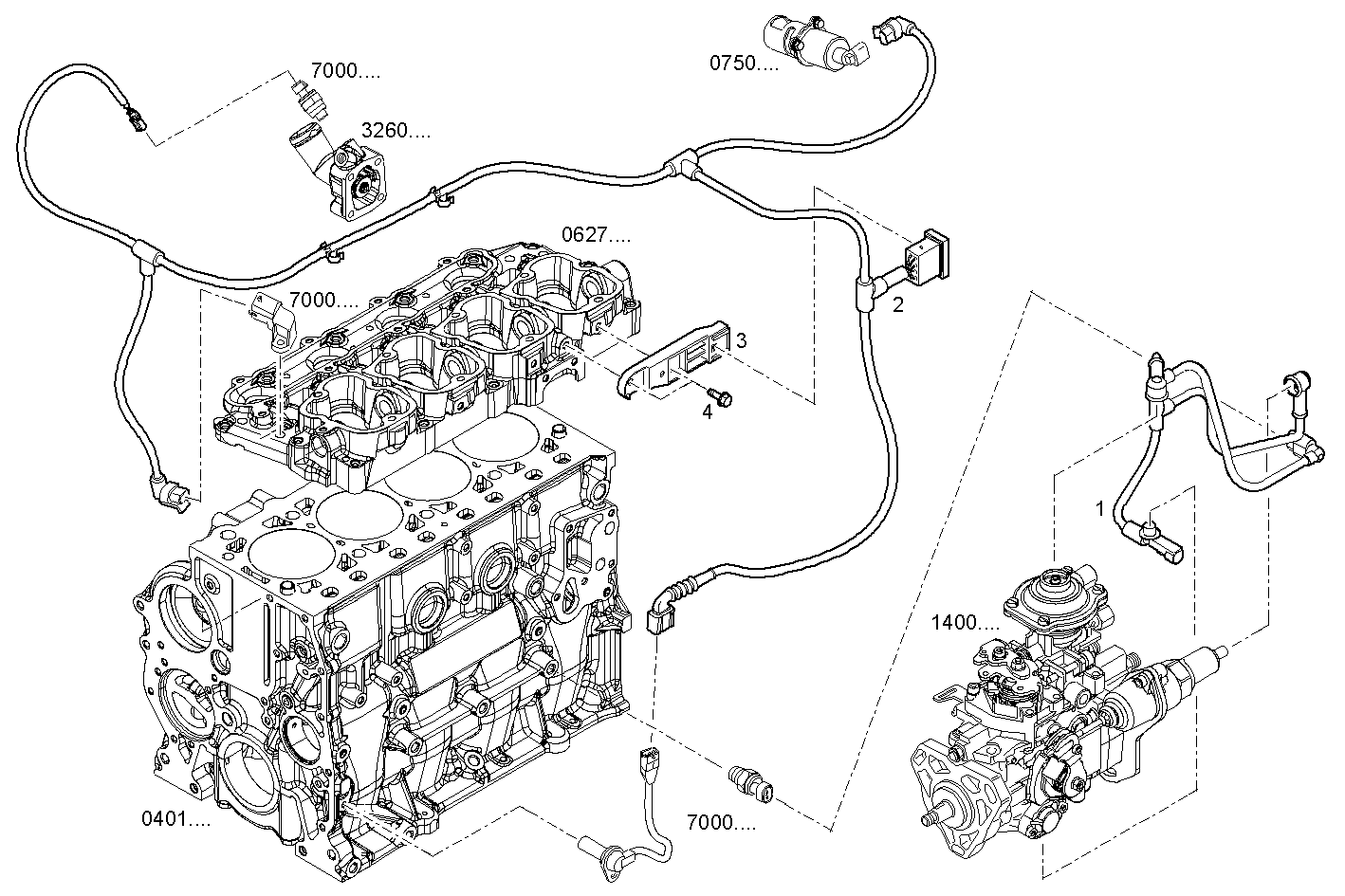

ENGINE CABLE
Assembly ID: 1730.040
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504264648 | WIRE/CABLE | 1 | ||
| 2 | 504324386 | ENGINE HARNESS | 1 | ||
| 3 | 504284210 | RETAINER | 1 | ||
| 4 | 16597924 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F32MNSX01.00A800 | F32 mechanic. - TIER 3 | view |
| F5CE5454B*A001 | F32 mechanic. - TIER 3 | view |
| F5CE5454B*A003 | F32 mechanic. - TIER 3 | view |
| F5CE5454B*A002 | F32 mechanic. - TIER 3 | view |
| F5AE5454F*A001 | F5A mechanic. - TIER 3 | view |
| F5CE5454B*A004 | F32 mechanic. - TIER 3 | view |
| F32MNSX01.00 | F32 mechanic. - TIER 3 | view |
