ENGINE CABLE
Assembly ID: 1730.047

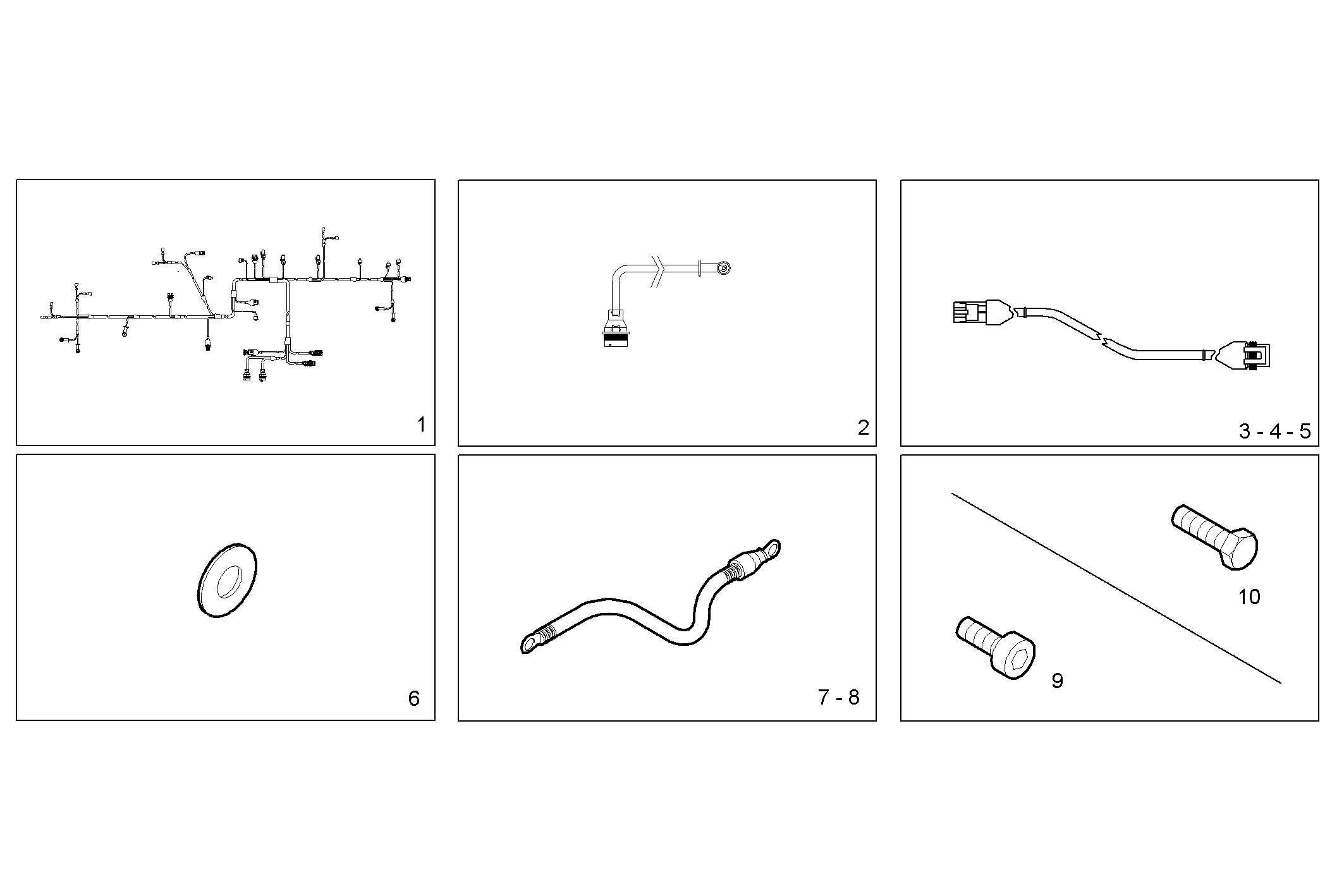

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8039276 | ENGINE HARNESS | 1 | ||
| 2 | 8039193 | WIRE/CABLE | 1 | ||
| 3 | 8039200 | WIRE/CABLE | 1 | ||
| 4 | 8039269 | WIRE/CABLE | 2 | ||
| 5 | 8039271 | WIRE/CABLE | 1 | ||
| 6 | 17094724 | WASHER | 1 | ||
| 7 | 8031723 | EARTH WIRE | 5 | ||
| 8 | 8031281 | EARTH WIRE | 1 | ||
| 9 | 16688924 | CYLIND-HEAD SCREW | 4 | ||
| 10 | 16603524 | SCREW | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
