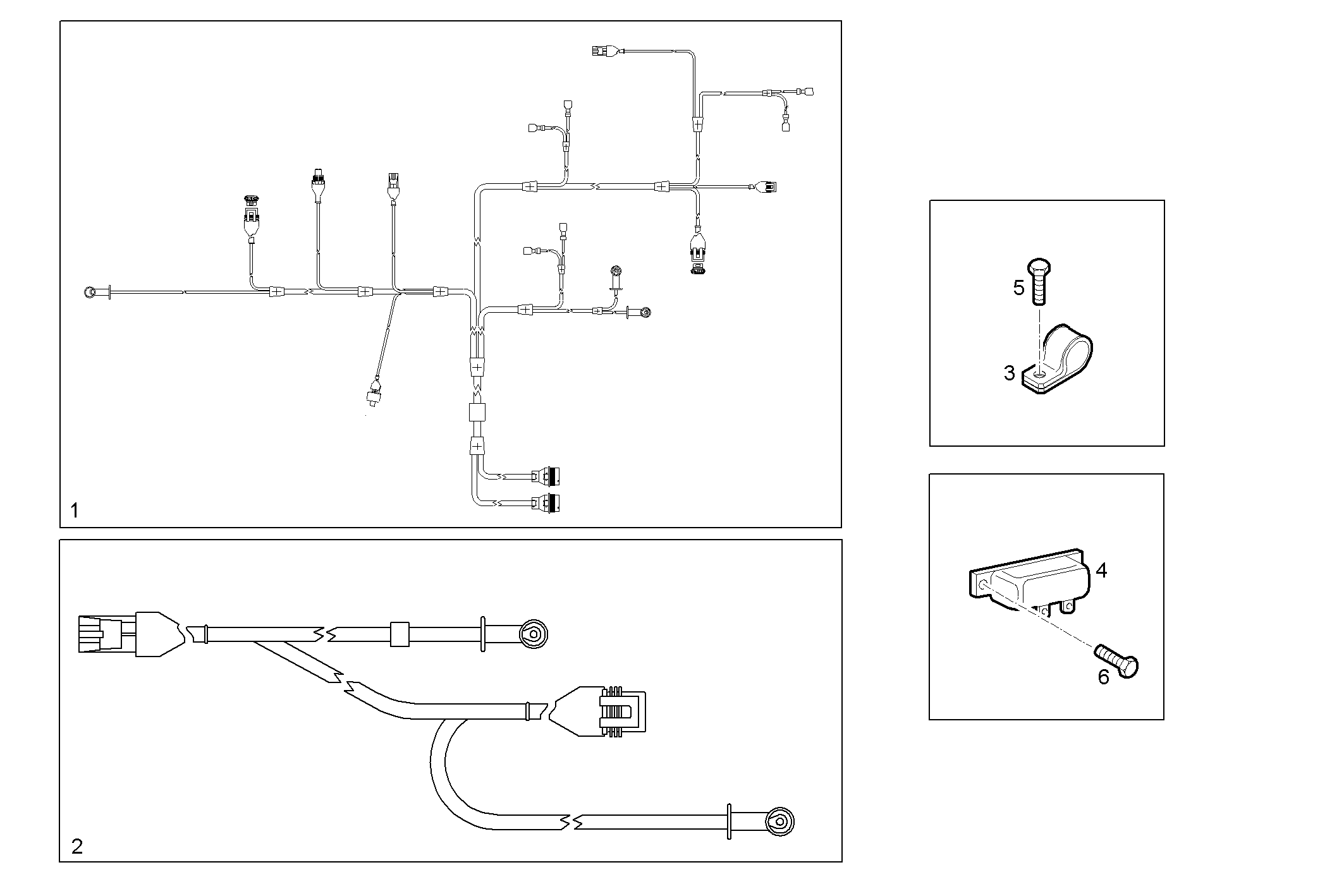

ENGINE CABLE
Assembly ID: 1730.054
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8043510 | ENGINE HARNESS | 1 | ||
| 2 | 8037858 | ENGINE HARNESS | 1 | ||
| 3 | 17316690 | FASTENING BRACKET | 5 | ||
| 4 | 8108574 | RELAY | 1 | ||
| 5 | 16605424 | SCREW | 2 | ||
| 6 | 16596924 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNTM28.11 | NEF 6 mechanic. | view |
| N67MNTM28.12 | NEF 6 mechanic. | view |
| GMNEF115M.A510 | GMNEF 6 mechanic. | view |
| GMNEF115M.A511 | GMNEF 6 mechanic. | view |
| GMNEF80M.A510 | GMNEF 6 mechanic. | view |
| GMNEF80M.A511 | GMNEF 6 mechanic. | view |
