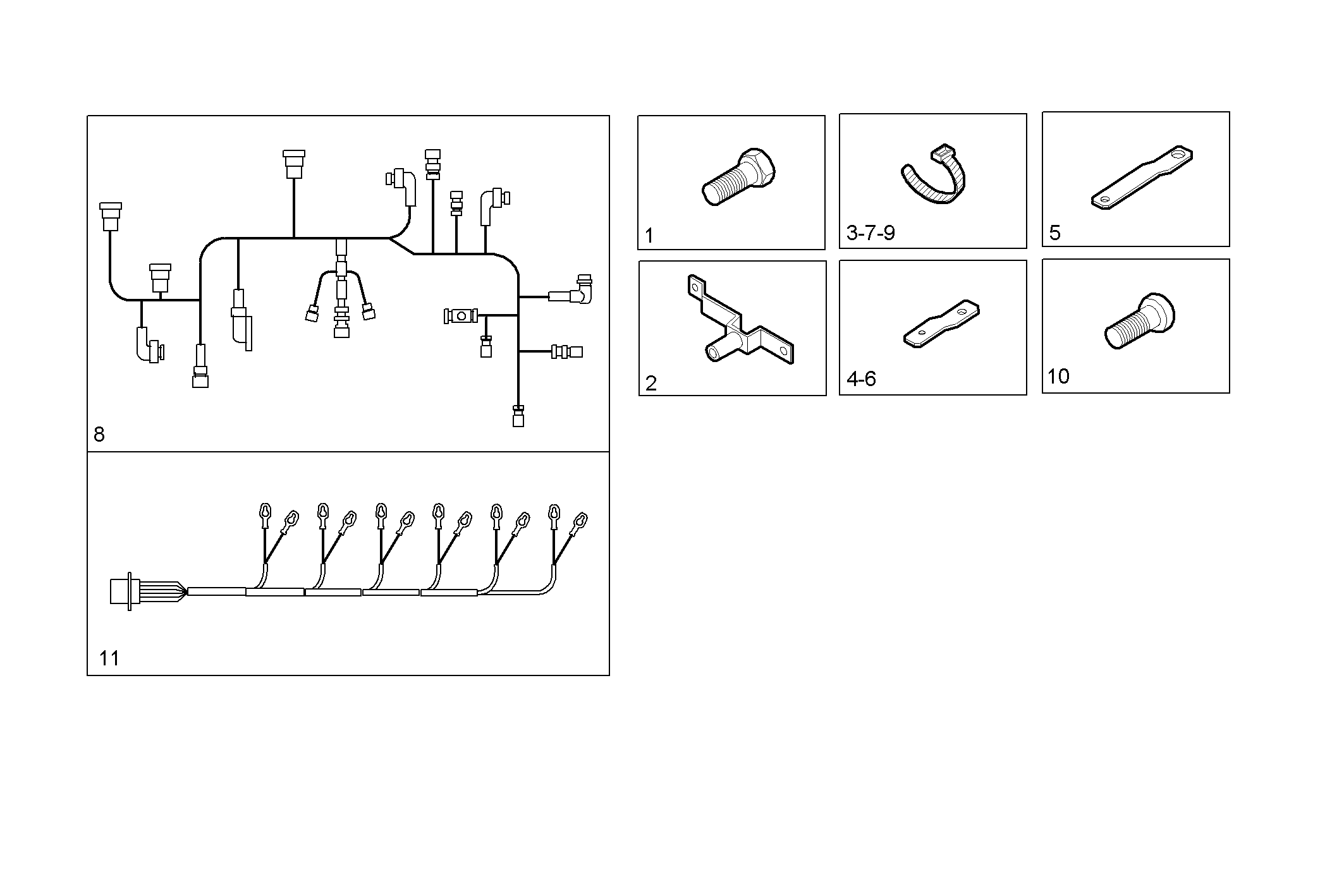

ENGINE CABLE
Assembly ID: 1730.057
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16592225 | HEXAGON BOLT | 1 | ||
| 2 | 500371778 | FASTENING BRACKET | 1 | ||
| 3 | 504023286 | CABLE STRAP | 4 | ||
| 4 | 504049754 | FASTENING BRACKET | 1 | ||
| 5 | 504060889 | RETAINER | 1 | ||
| 6 | 504067009 | RETAINER | 1 | ||
| 7 | 504099833 | CABLE STRAP | 1 | ||
| 8 | 504116158 | ENGINE HARNESS | 1 | ||
| 9 | 42099097 | CABLE STRAP | 5 | ||
| 10 | 16689424 | SOCKET-HEAD SCREW | 4 | ||
| 11 | 504060641 | WIRE/CABLE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0685A*B101 | CURSOR 13 - 2002/88/CE | view |
| C13ENTA60.00 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3A.A001 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3A.A002 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3A.A003 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3A.A559 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3A.S550 | CURSOR 13 - 2002/88/CE | view |
| GECURSOR400EA.A001 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR400EA.A551 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR400EA.A71M | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR400EA.R990 | GECURSOR 13 - 2002/88/CE | view |
| C13ENTA61.00 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2A.A001 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2A.A002 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2A.A003 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2A.A004 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2A.A559 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2A.S550 | CURSOR 13 - 2002/88/CE | view |
| GECURSOR350EA.A001 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350EA.A551 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350EA.A71M | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350EA.R990 | GECURSOR 13 - 2002/88/CE | view |
| F3BE0687A*B302 | CURSOR 13 - TIER 2 | view |
| C13ENTD20.20 | CURSOR 13 - TIER 2 | view |
| PUC13ENTD20.20A100 | CURSOR 13 - TIER 2 | view |
