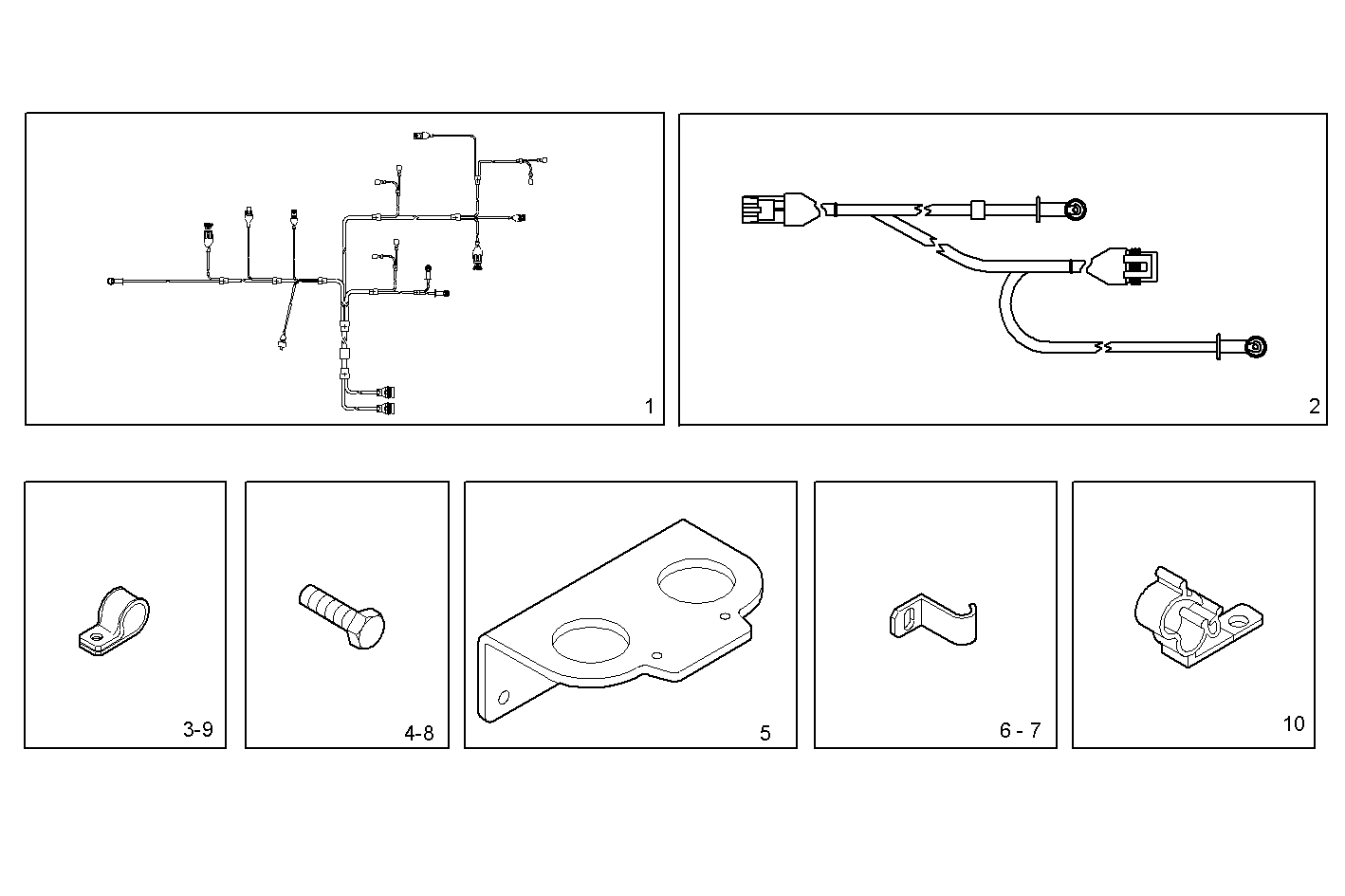

ENGINE CABLE
Assembly ID: 1730.073
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8036996 | ENGINE HARNESS | 1 | ||
| 2 | 8039724 | WIRE/CABLE | 1 | ||
| 3 | 10450590 | PIPE CLIP | 1 | ||
| 4 | 16605424 | SCREW | 3 | ||
| 5 | 8039482 | PLATE | 1 | ||
| 6 | 17316699 | PIPE CLIP | 1 | ||
| 7 | 17316690 | FASTENING BRACKET | 3 | ||
| 8 | 16677735 | HEXAGON BOLT | 2 | ||
| 9 | 10450090 | PIPE CLIP | 3 | ||
| 10 | 99453771 | RETAINER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNAM15.00 | NEF 6 mechanic. | view |
| N67MNAM12.30 | NEF 6 mechanic. | view |
| N67MNAM15.30 | NEF 6 mechanic. | view |
