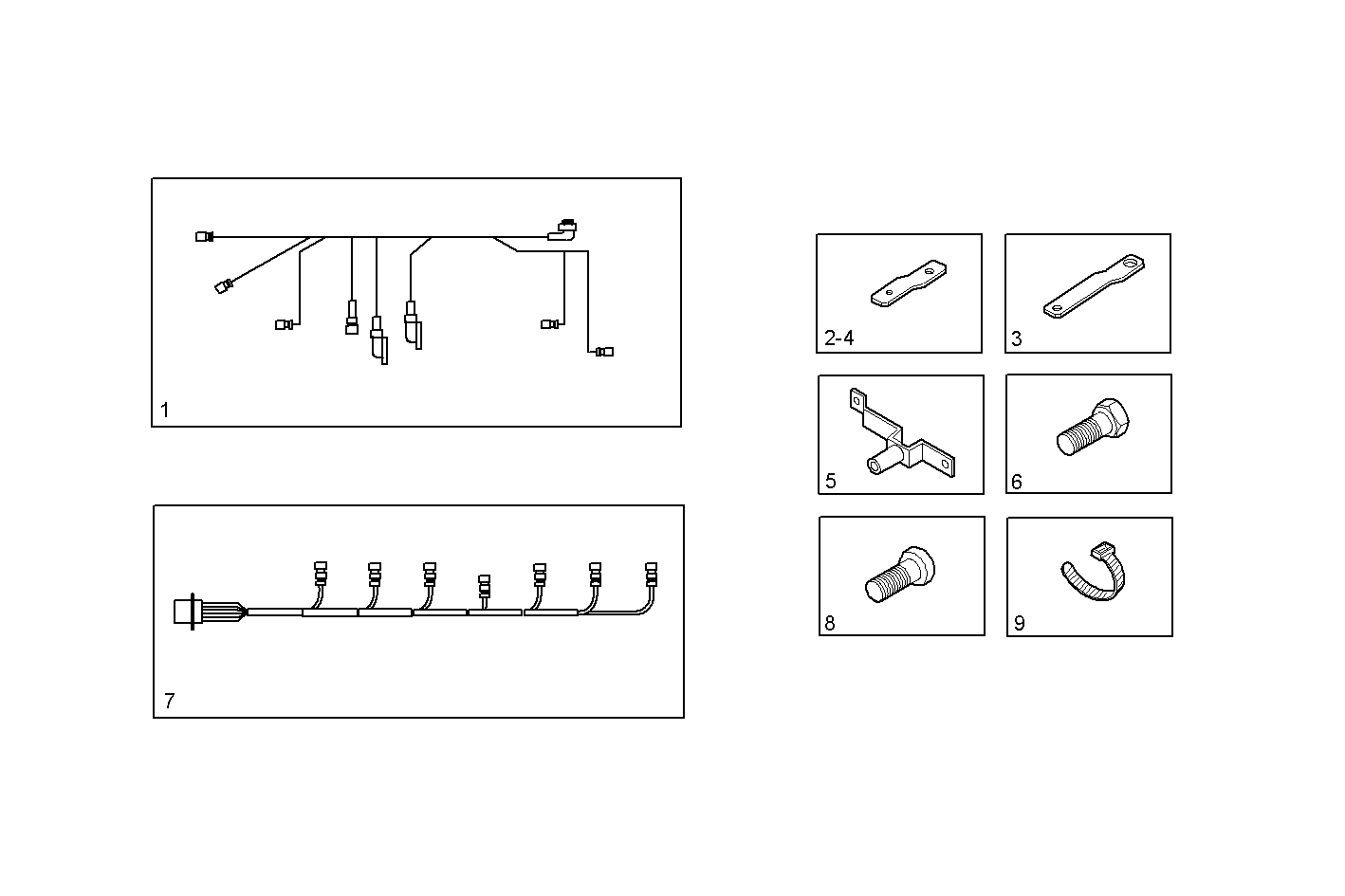

ENGINE CABLE
Assembly ID: 1730.077
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504343920 | ENGINE HARNESS | 1 | ||
| 2 | 504067009 | RETAINER | 1 | ||
| 3 | 504060889 | RETAINER | 1 | ||
| 4 | 504049754 | FASTENING BRACKET | 1 | ||
| 5 | 500371778 | FASTENING BRACKET | 4 | ||
| 6 | 16592225 | HEXAGON BOLT | 1 | ||
| 7 | 504149935 | WIRE/CABLE | 1 | ||
| 8 | 16689424 | SOCKET-HEAD SCREW | 4 | ||
| 9 | 42099097 | CABLE STRAP | 5 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
