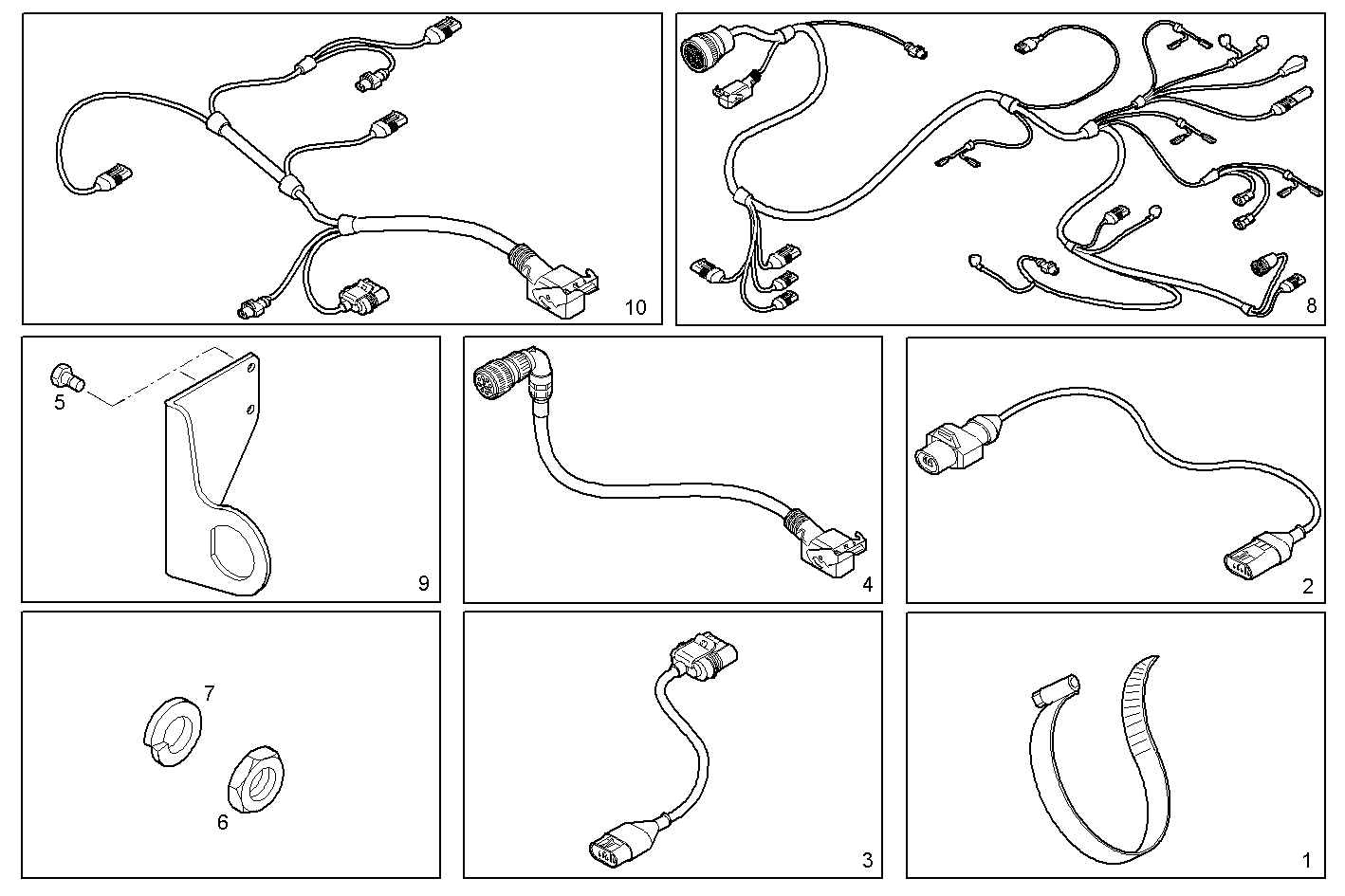

ENGINE CABLE
Assembly ID: 1730.081
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 14560187 | CABLE STRAP | 40 | ||
| 2 | 8039271 | WIRE/CABLE | 2 | ||
| 3 | 8039269 | WIRE/CABLE | 1 | ||
| 4 | 8046698 | WIRE/CABLE | 1 | ||
| 5 | 16585625 | HEXAGON BOLT | 2 | ||
| 6 | 8033873 | HEXAGON NUT | 1 | ||
| 7 | 8033874 | SPRING WASHER | 1 | ||
| 8 | 8046699 | ENGINE HARNESS | 1 | ||
| 9 | 8049183 | RETAINER | 1 | ||
| 10 | 8046697 | ENGINE HARNESS | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM55.12 | CURSOR 8 | view |
| C13ENTM50.12 | CURSOR 13 | view |
