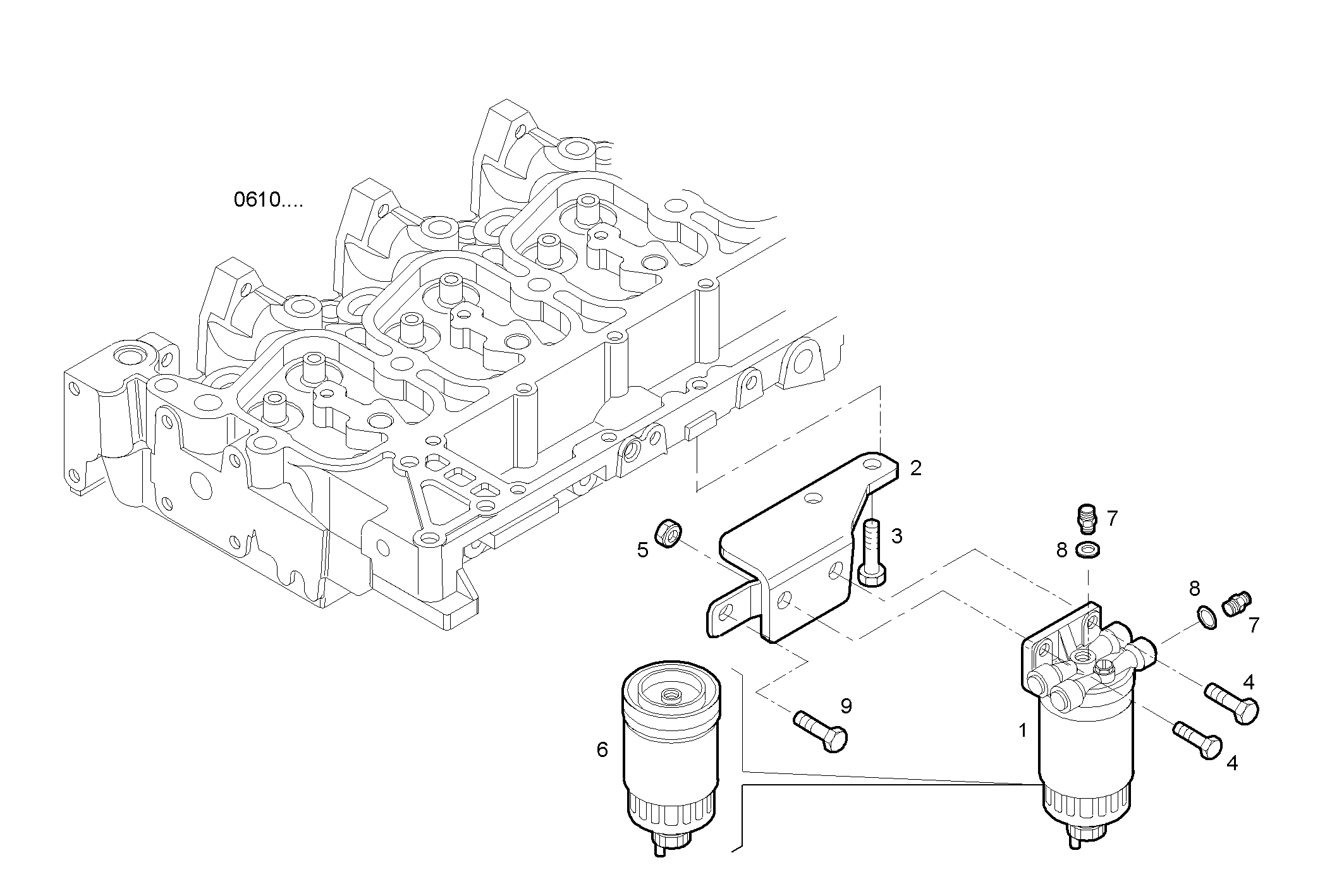

FUEL FILTER
Assembly ID: 2000.008
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504068696 | FUEL FILTER | 1 | ||
| 2 | 504273974 | FUEL FILT.SUPPORT | 1 | ||
| 3 | 2830411 | SCREW | 2 | ||
| 4 | 16587325 | HEXAGON BOLT | 2 | ||
| 5 | 4895166 | HEXAGON NUT | 2 | ||
| 6 | 504073234 | FUEL FILTER ELEM. | 1 | ||
| 7 | 8094525 | PIPE SOCKET | 2 | ||
| 8 | 746152 | GASKET | 2 | ||
| 9 | 4899068 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE9684K*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684N*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684P*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684J*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684H*J602 | NEF 6 mechanic. - TIER 3 | view |
