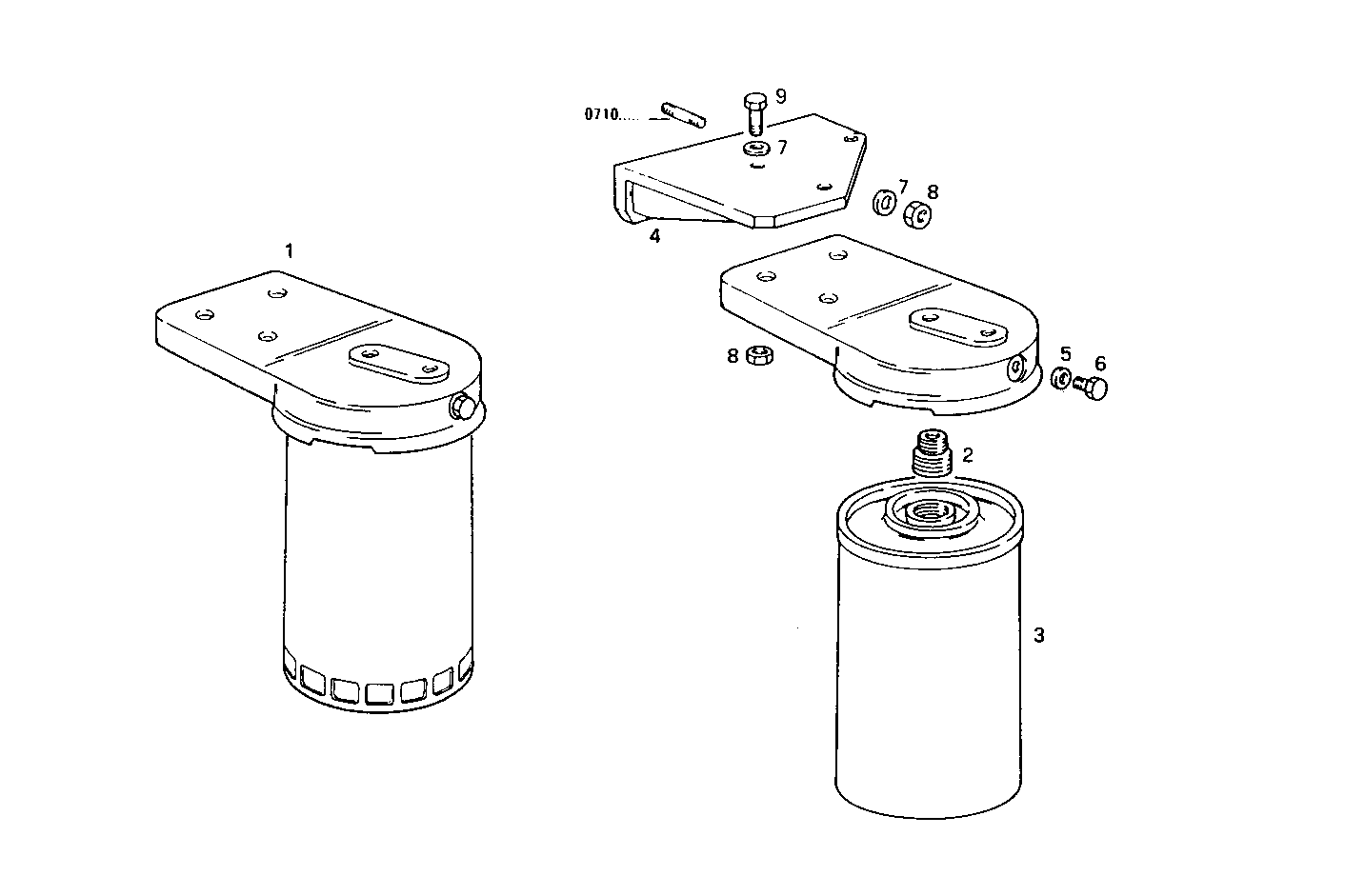

FUEL FILTER
Assembly ID: 2000.009
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4802377 | FUEL FILTER | 1 | ||
| 2 | 4626466 | THREADED UNION | 1 | ||
| 3 | 1901605 | FUEL FILTER ELEM. | 1 | ||
| 4 | 8111015 | RETAINER | 1 | ||
| 5 | 4626468 | SEAL GASKET | 1 | ||
| 6 | 4626467 | SCREW CAP/PLUG | 1 | ||
| 7 | 11198379 | SPRING WASHER | 5 | ||
| 8 | 12164711 | HEXAGON NUT | 5 | ||
| 9 | 15970921 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM27.10 | 8061SRM27 | view |
| 8061SRM24.00 | 8061SRM24 | view |
| 8061SRM24.10 | 8061SRM24 | view |
