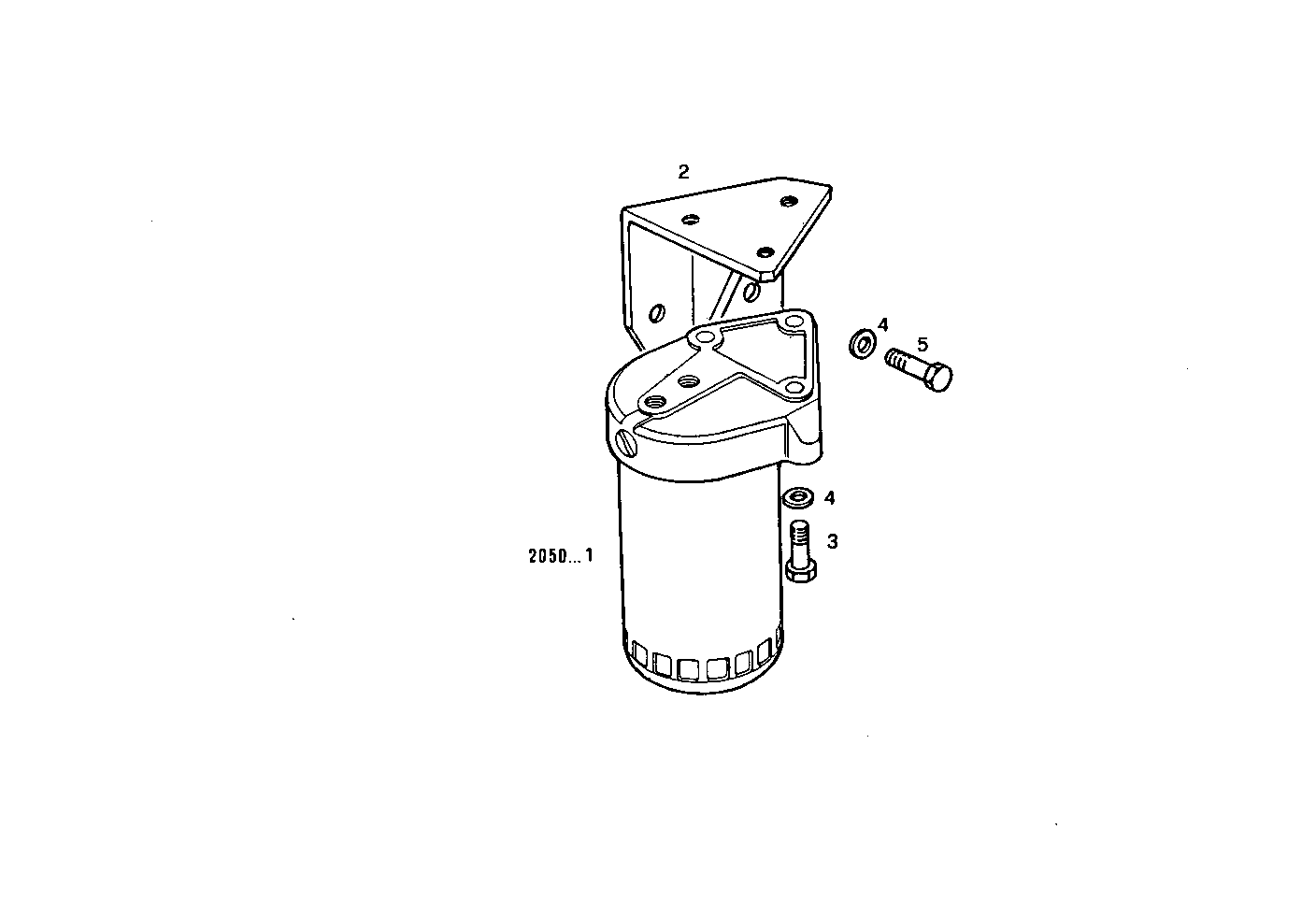

FUEL FILTER
Assembly ID: 2000.017
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4802377 | FUEL FILTER | 1 | ||
| 2 | 8104944 | RETAINER | 1 | ||
| 3 | 15970921 | HEXAGON BOLT | 3 | ||
| 4 | 17090274 | WASHER | 5 | ||
| 5 | 15004021 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRM38.10 | 8361SRM38 | view |
| 8361SRM38.11 | 8361SRM38 | view |
| 8361SRM40.00 | 8361SRM40 | view |
| 8361SRM40.01 | 8361SRM40 | view |
| 8361SM21.00 | 8361SM21 | view |
| 8361SRM32.00 | 8361SRM32 | view |
| 8361SRM32.40 | 8361SRM32 | view |
| 8361SRM40.10 | 8361SRM40 | view |
| 8361SRM40.40 | 8361SRM40 | view |
| 8361SM21.01 | 8361SM21 | view |
| 8361SRM32.01 | 8361SRM32 | view |
| 8361SRM32.41 | 8361SRM32 | view |
| 8361SRM40.11 | 8361SRM40 | view |
| 8361SRM40.41 | 8361SRM40 | view |
| 8361SM21.01A550 | 8361SM21 | view |
| 8361SM21.01A580 | 8361SM21 | view |
| 8361SRM32.01A550 | 8361SRM32 | view |
