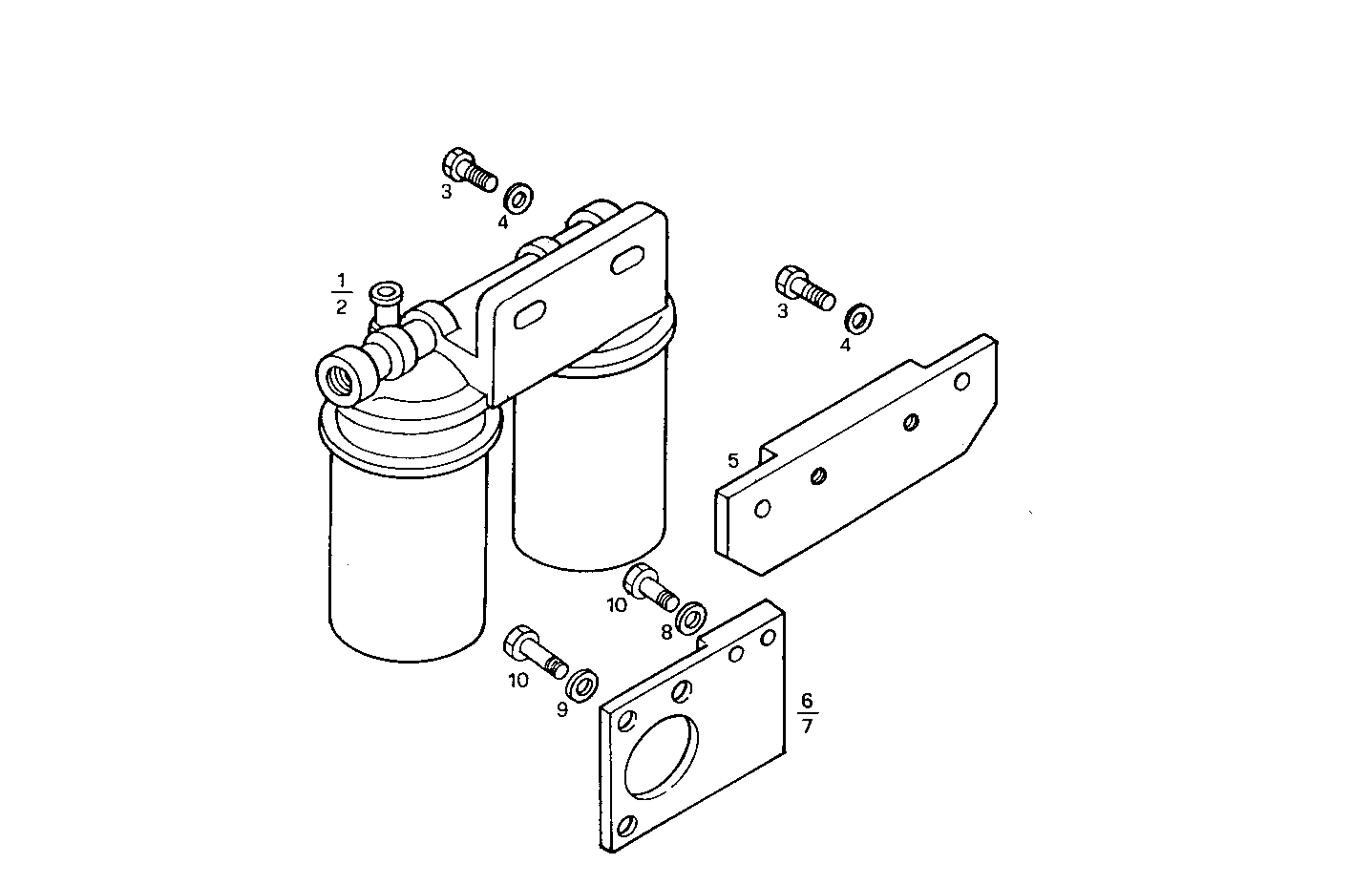

FUEL FILTER
Assembly ID: 2000.076
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98409998 | FUEL FILTER | 1 | ||
| 2 | 98409997 | FUEL FILTER | 1 | ||
| 3 | 11306921 | SCREW | 4 | ||
| 4 | 12642501 | WASHER | 2 | ||
| 5 | 98454421 | FILTER SUPPORT | 1 | ||
| 6 | 500305396 | FILTER SUPPORT | 1 | ||
| 7 | 98498547 | FILTER SUPPORT | 1 | ||
| 8 | 17095125 | WASHER | 2 | ||
| 9 | 17090174 | SPRING WASHER | 3 | ||
| 10 | 15004021 | HEXAGON BOLT | 5 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8280SRC21.00 | 8280SRC21 | view |
| 8280SRC21.10 | 8280SRC21 | view |
| 8280SRC20.00 | 8280SRC20 | view |
