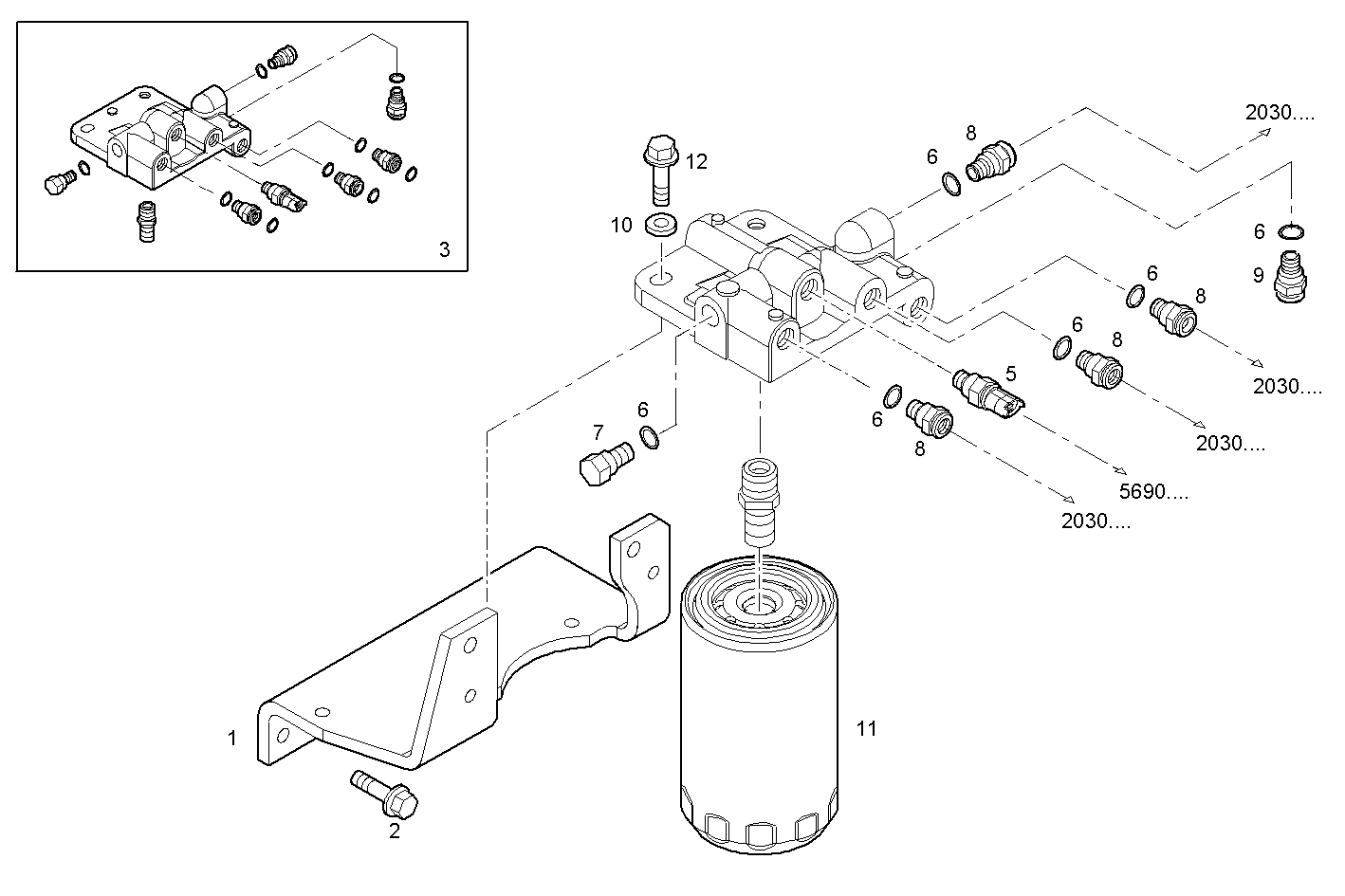

FUEL FILTER
Assembly ID: 2000.127
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504088307 | SUPPORT | 1 | ||
| 2 | 16673635 | HEXAGON BOLT | 4 | ||
| 3 | 504083906 | FUEL FILT.SUPPORT | 1 | ||
| 5 | 4897224 | SENSOR | 1 | ||
| 6 | 4894721 | WASHER | 6 | ||
| 7 | 4893464 | THREADED PLUG | 1 | ||
| 8 | 4890964 | THREADED UNION | 4 | ||
| 9 | 4896543 | THREADED UNION | 1 | ||
| 10 | 2830711 | WASHER | 2 | ||
| 11 | 504043765 | FUEL FILTER ELEM. | 1 | ||
| 12 | 2830733 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4HE0684E*D100 | NEF 6 electron. - TIER 2 | view |
| F4HE0684F*D100 | NEF 6 electron. - TIER 2 | view |
| F4HE0684B*D100 | NEF 6 electron. - TIER 2 | view |
| F4HE0684E*D102 | NEF 6 electron. - TIER 2 | view |
| F4HE0684B*D101 | NEF 6 electron. - TIER 2 | view |
| F4HE0684E*D103 | NEF 6 electron. - TIER 2 | view |
| F4HE9684A*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684X*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687E*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687B*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684A*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J102 | NEF 6 electron. - TIER 3 | view |
