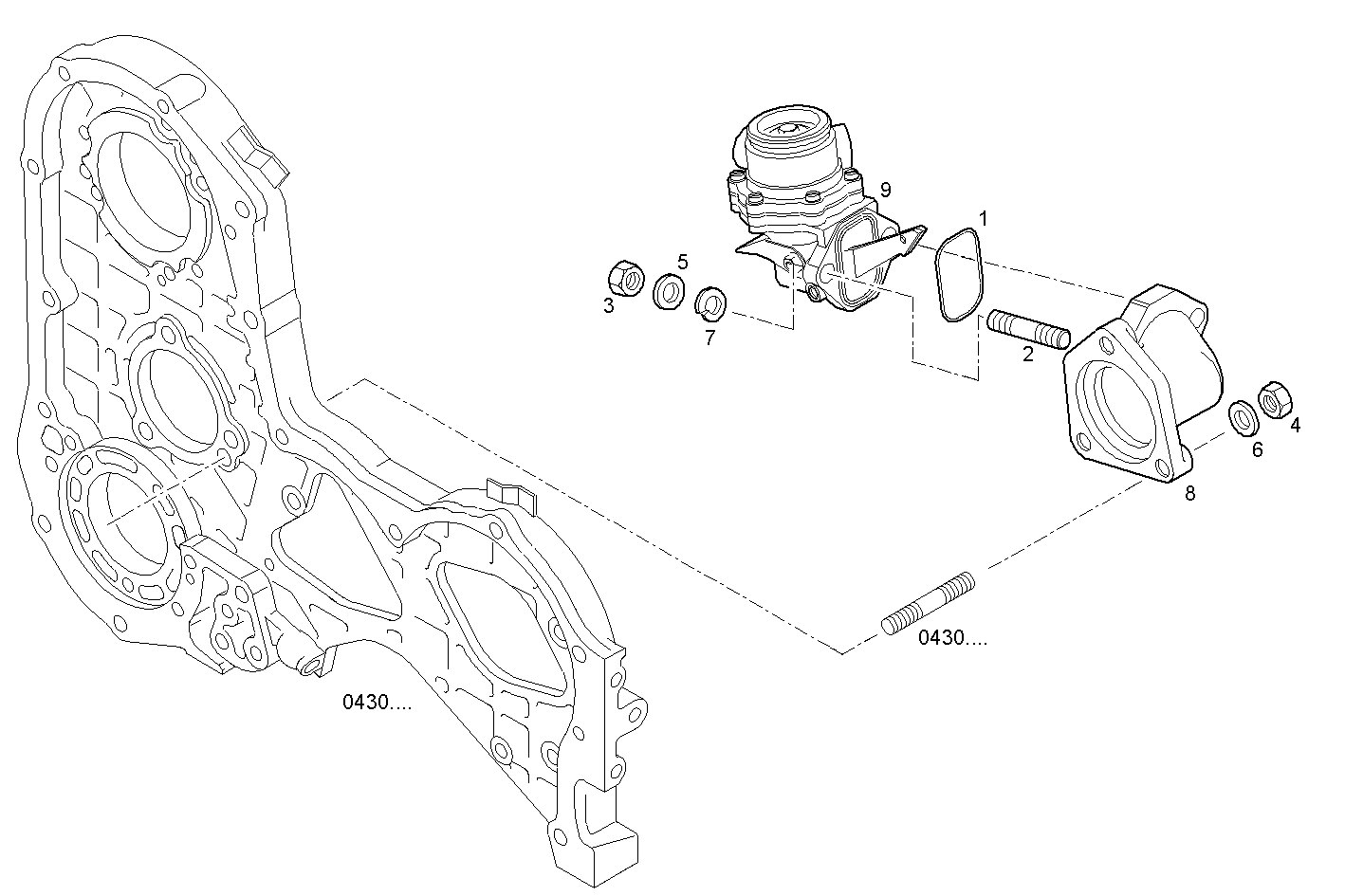

FUEL PUMP
Assembly ID: 2010.011
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4847092 | O-RING | 1 | ||
| 2 | 13516920 | STUD | 2 | ||
| 3 | 17037925 | HEXAGON NUT | 2 | ||
| 4 | 17038221 | HEXAGON NUT | 3 | ||
| 5 | 17094924 | WASHER | 2 | ||
| 6 | 17097124 | WASHER | 3 | ||
| 7 | 17798274 | SPRING WASHER | 2 | ||
| 8 | 98467028 | SUPPORT | 1 | ||
| 9 | 504090936 | FUEL PUMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8035.05M.940 | 8035.05 | view |
| 8035E00.01 | 8035E00 | view |
