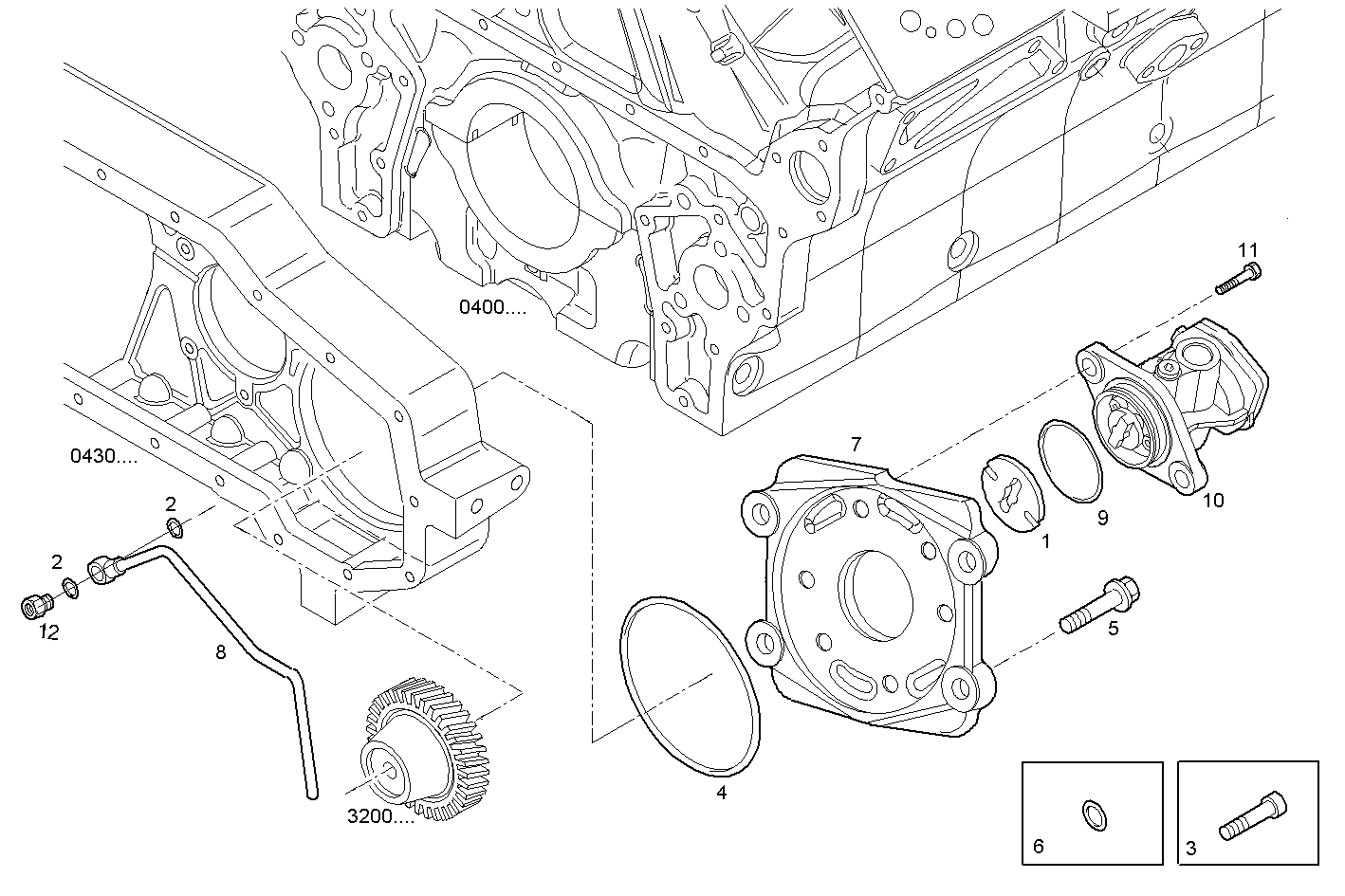

FUEL PUMP
Assembly ID: 2010.056
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504058399 | FLEXIBLE COUPLING | 1 | ||
| 2 | 98474305 | WASHER | 2 | ||
| 3 | 16596924 | HEXAGON BOLT | 1 | ||
| 4 | 17292581 | O-RING | 1 | ||
| 5 | 16588125 | HEXAGON BOLT | 4 | ||
| 6 | 17094724 | WASHER | 1 | ||
| 7 | 504088838 | SPACING BAR | 1 | ||
| 8 | 504101003 | OIL LINE | 1 | ||
| 9 | 504060288 | O-RING | 1 | ||
| 10 | 504129158 | FUEL PUMP | 1 | ||
| 11 | 16675735 | HEXAGON BOLT | 2 | ||
| 12 | 504049545 | THREADED UNION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVAE2885X*A100 | VECTOR 8 | view |
| VECTOR8TE2.A001 | VECTOR 8 | view |
| FVAE2884A*B201 | VECTOR 8 | view |
| FVAE2884X*B200 | VECTOR 8 | view |
| VECTOR8TE2.A002 | VECTOR 8 | view |
| GEVECTOR650E.A500 | GEVECTOR 8 - TIER 2 | view |
