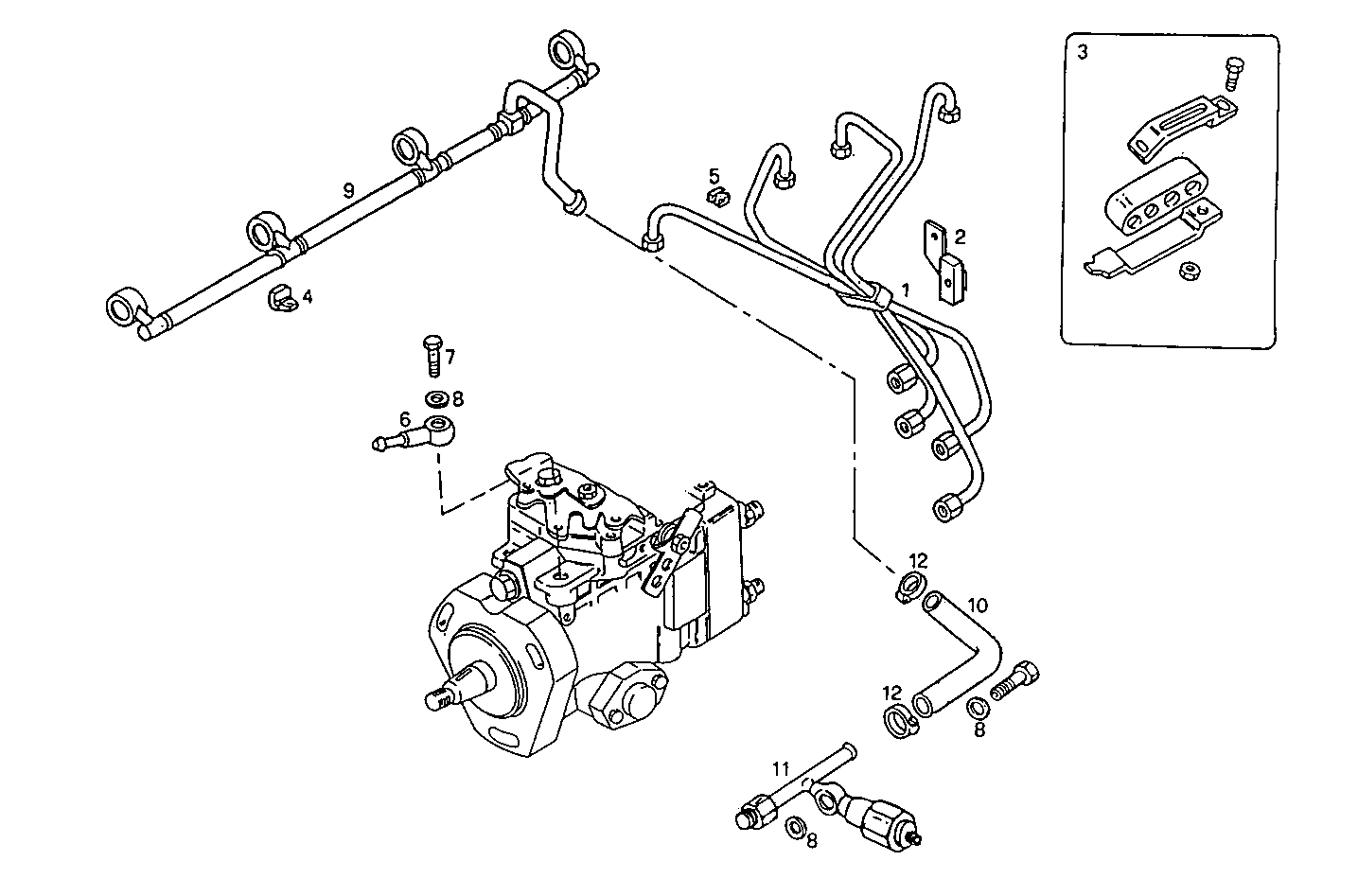

INJECTION PIPES
Assembly ID: 2020.077
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99443745 | INJECTION LINE SET | 1 | ||
| 2 | 99485478 | RETAINER | 1 | ||
| 3 | 500302833 | FASTENING BRACKET | 1 | ||
| 4 | 4734007 | RETAINER | 1 | ||
| 5 | 4734008 | RETAINER | 1 | ||
| 6 | 500327420 | THREADED UNION | 1 | ||
| 7 | 4864082 | BANJO BOLT | 1 | ||
| 8 | 4858607 | WASHER | 4 | ||
| 9 | 7303520 | FUEL LINE | 1 | ||
| 10 | 17724587 | RUBBER HOSE | 1 | ||
| 11 | 500332069 | FUEL LINE | 1 | ||
| 12 | 18088192 | CLIP | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRC21.00 | 8140SRC21 | view |
