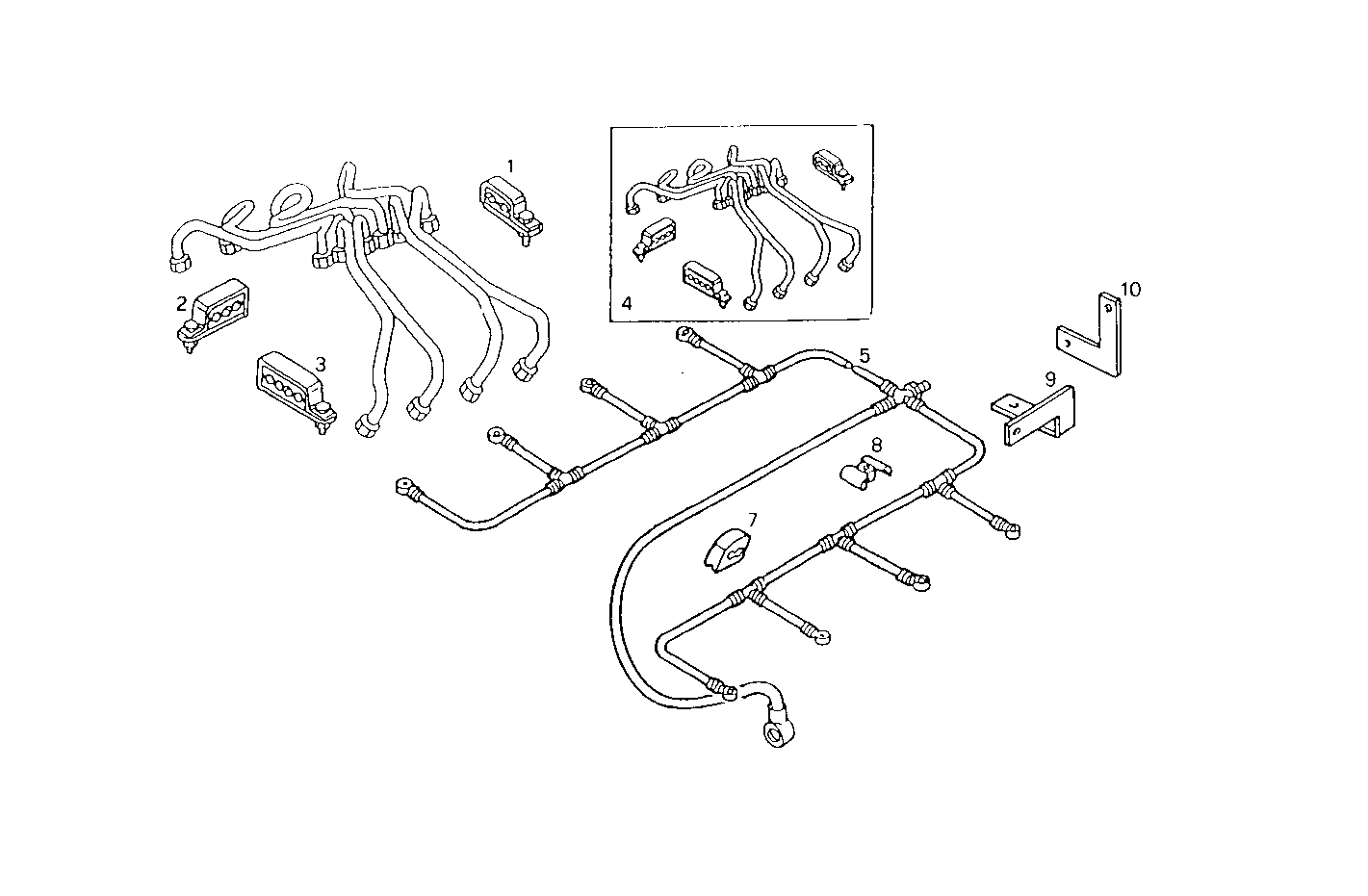

INJECTION PIPES
Assembly ID: 2020.111
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4806611 | FASTENING BRACKET | 4 | ||
| 2 | 4806612 | FASTENING BRACKET | 2 | ||
| 3 | 4806613 | RETAINER | 3 | ||
| 4 | 98438398 | INJECTION LINE SET | 1 | ||
| 5 | 99486290 | FUEL LINE | 1 | ||
| 7 | 4696015 | RUBBER PAD | 8 | ||
| 8 | 99434055 | SPRING CLAMP | 1 | ||
| 9 | 98498472 | FASTENING BRACKET | 1 | ||
| 10 | 98498473 | FASTENING BRACKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8280SRC21.10 | 8280SRC21 | view |
| 8280SRC20.00 | 8280SRC20 | view |
