| 1 |
8028936
|

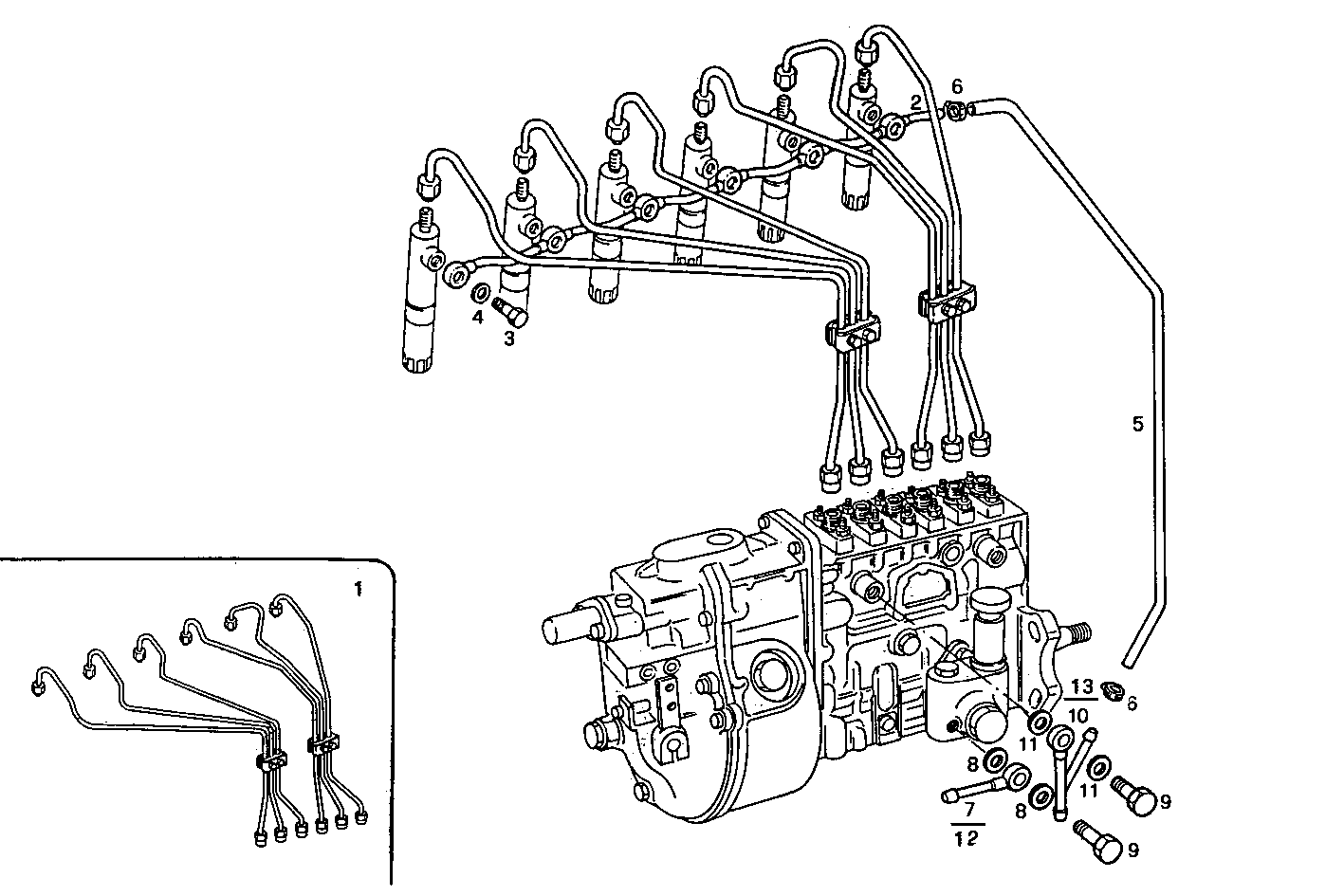

INJECTION LINE SET
|
|
1
|
|
| 2 |
4788070
|
INJECTION LINE
|
|
1
|
|
| 3 |
9982964
|
SCREW CONNECTOR
|
|
6
|
|
|
93190600 |
SCREW CONNECTOR |
|
6 |
|
| 4 |
1118641
|
WASHER
|
|
12
|
|
| 5 |
8006636
|
RUBBER SLEEVE
|
|
1
|
|
| 6 |
17764393
|
CLIP
|
|
2
|
|
|
18088294 |
CLIP |
|
2 |
|
| 7 |
79010214
|
PIPE SOCKET
|
|
1
|
|
| 8 |
4858608
|
SEAL GASKET
|
|
2
|
|
| 9 |
4864083
|
SCREW CONNECTOR
|
|
3
|
|
| 10 |
8010952
|
FUEL LINE
|
|
1
|
|
| 11 |
98474308
|
SEAL GASKET
|
|
2
|
|
|
5801696011 |
SEAL GASKET |
|
2 |
|
| 12 |
8030222
|
PIPE SOCKET
|
|
1
|
|
| 13 |
8034106
|
FUEL LINE
|
|
1
|
|
