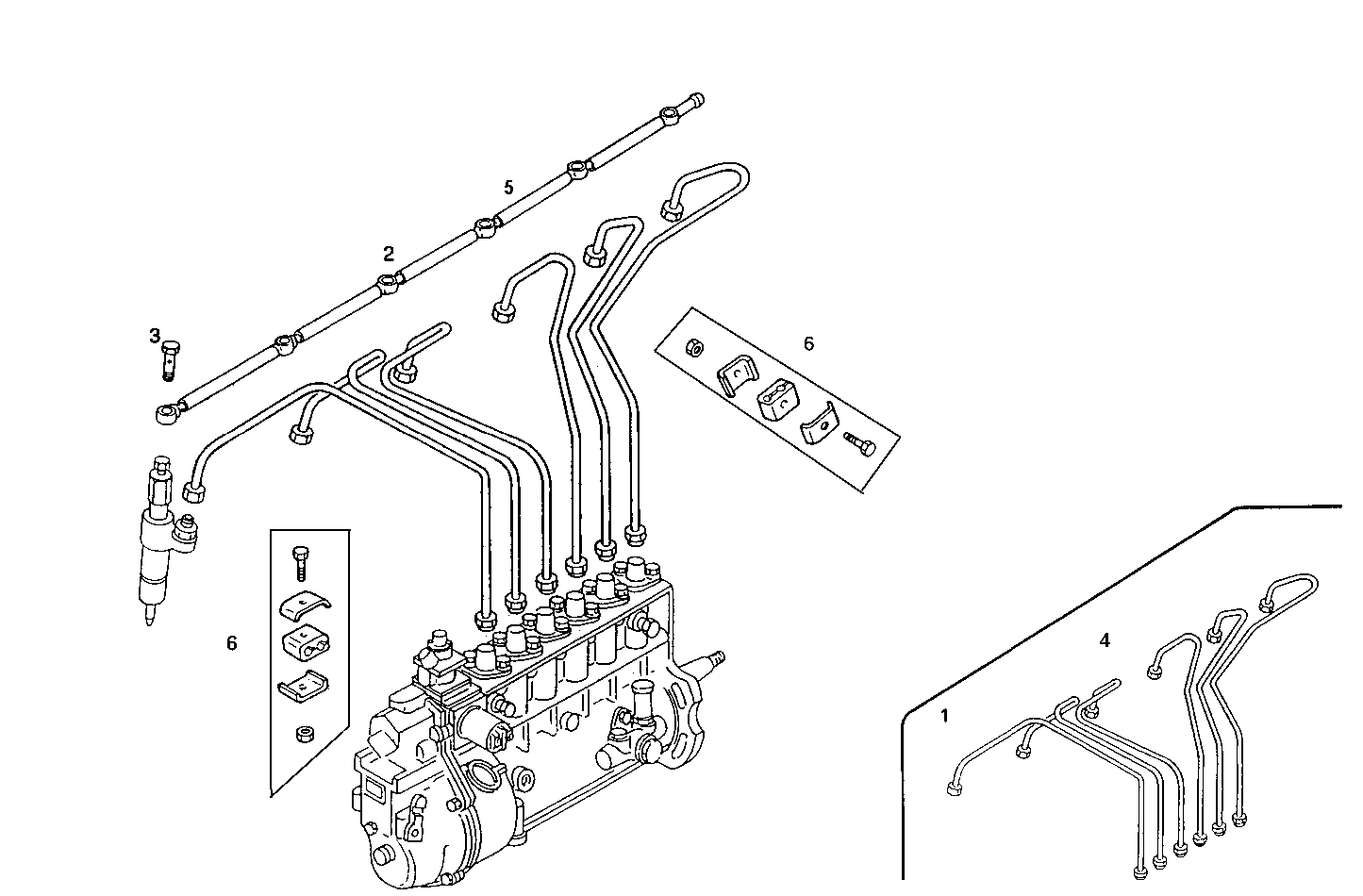

INJECTION PIPES
Assembly ID: 2020.129
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4806746 | INJECTION LINE SET | 1 | ||
| 2 | 4756418 | FUEL LINE | 1 | ||
| 3 | 93190600 | SCREW CONNECTOR | 6 | ||
| 4 | 8023118 | INJECTION LINE SET | 1 | ||
| 5 | 8018689 | FUEL LINE | 1 | ||
| 6 | 4806611 | FASTENING BRACKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SM21.01 | 8361SM21 | view |
| 8361SRM32.01 | 8361SRM32 | view |
| 8361SRM32.41 | 8361SRM32 | view |
| 8361SM21.01A550 | 8361SM21 | view |
| 8361SM21.01A580 | 8361SM21 | view |
| 8361SRM32.01A550 | 8361SRM32 | view |
