FUEL LINES

Assembly ID: 2030.021

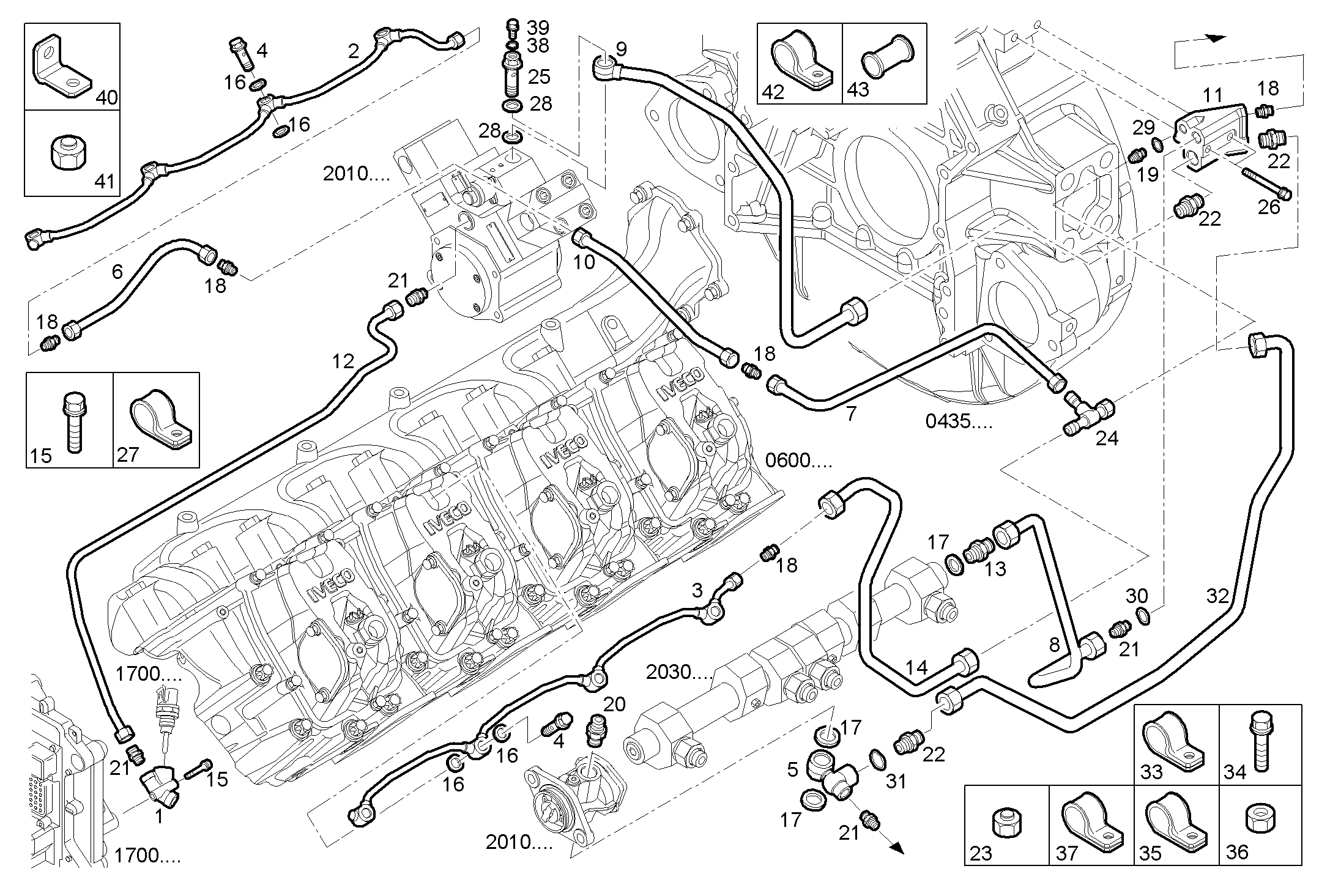

FUEL LINES

Parts

# Part number Description Note Quantity
1 504065705 PIPE SOCKET 1
2 504071550 FUEL LINE 1
3 504071551 FUEL LINE 1
4 504034362 SCREW CONNECTOR 8
5 504060320 PIPE SOCKET 1
6 504079220 FUEL LINE 1
7 504074221 FUEL LINE 1
8 504074227 FUEL LINE 1
9 504074230 FUEL LINE 1
10 504079223 FUEL LINE 1
11 504074653 CHOCK 1
12 504072853 FUEL LINE 1
13 504074830 PIPE SOCKET 1
14 504074224 FUEL LINE 1
15 16592225 HEXAGON BOLT 1
16 98474305 WASHER 16
17 99489020 SEAL GASKET 3
18 16501611 PIPE SOCKET 5
19 16500114 THREADED UNION 1
20 1244661 THREADED UNION 1
21 504081274 THREADED UNION 4
22 16500514 THREADED UNION 2
23 504157209 PLUG 1
24 16504614 T-COUPLING 1
25 504121629 SCREW CONNECTOR 1
26 16597925 HEXAGON BOLT 2
27 10450090 PIPE CLIP 2
28 99469378 WASHER 2
29 99489018 SEAL GASKET 1
30 99489019 WASHER 1
31 99489022 SEAL GASKET 1
32 504349565 FUEL LINE 1
33 17316592 PIPE CLIP 1
34 16597925 HEXAGON BOLT 2
35 17316899 CLIP 1
36 17044735 NUT 1
37 17316690 FASTENING BRACKET 2
38 99489017 SEAL GASKET 1
39 504144621 THREADED PLUG 1
40 504088502 RETAINER 1
41 504157222 PLUG 1
42 4760226 FASTENING BRACKET 1
43 4684880 RUBBER PAD 1

Applies to engines

Engine Family
FVQE2883Z*C200 VECTOR 8 view
