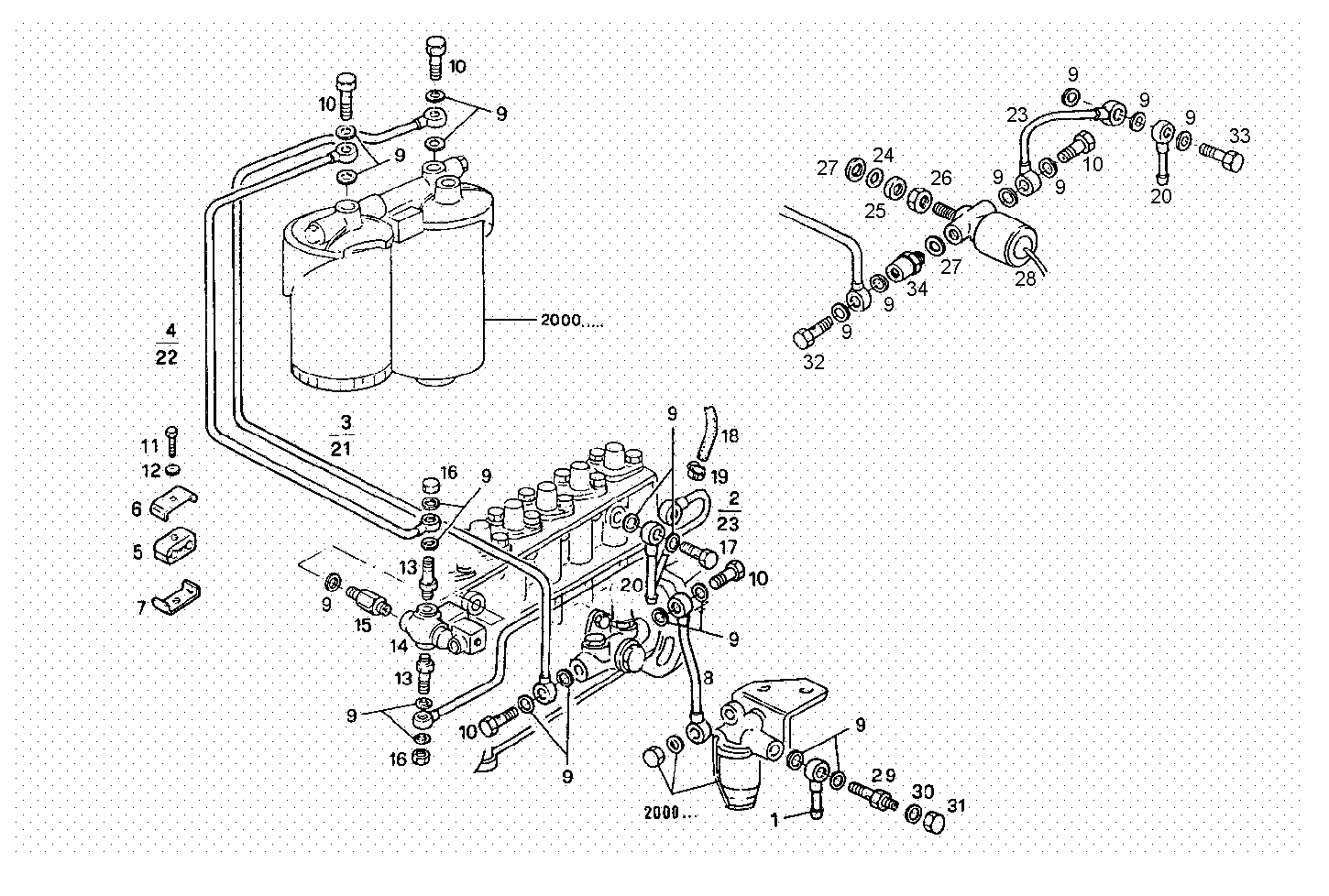

| 1 |
98404882
|
PIPE SOCKET
|
|
1
|
|
| 2 |
8012628
|
FUEL LINE
|
|
1
|
|
| 3 |
8012382
|
FUEL LINE
|
|
1
|
|
| 4 |
8012381
|
INJECTION LINE
|
|
1
|
|
| 5 |
4871771
|
RUBBER LUG
|
|
1
|
|
|
IVE4871771 |
RUBBER LUG |
|
1 |
|
| 6 |
4871773
|
RETAINER
|
|
1
|
|
| 7 |
4871774
|
RETAINER
|
|
1
|
|
| 8 |
8010748
|
FUEL LINE
|
|
1
|
|
| 9 |
98474308
|
SEAL GASKET
|
|
19
|
|
|
5801696011 |
SEAL GASKET |
|
19 |
|
| 10 |
4864083
|
SCREW CONNECTOR
|
|
3
|
|
| 11 |
16603824
|
SCREW
|
|
1
|
|
| 12 |
17088474
|
WASHER
|
|
1
|
|
| 13 |
4929627
|
PIPE SOCKET
|
|
2
|
|
|
FPT4929627 |
PIPE SOCKET |
|
2 |
|
| 14 |
8108944
|
ELECTROVALVE
|
|
1
|
|
| 15 |
4929626
|
PIPE SOCKET
|
|
1
|
|
|
FPT4929626 |
PIPE SOCKET |
|
1 |
|
| 16 |
10182817
|
LOCK PLUG
|
|
2
|
|
| 17 |
61320123
|
SCREW CONNECTOR
|
|
1
|
|
| 18 |
4934253
|
RUBBER SLEEVE
|
|
1
|
|
| 19 |
17764491
|
CLIP
|
|
2
|
|
|
18088392 |
CLIP |
|
2 |
|
| 20 |
8012659
|
FUEL LINE
|
|
1
|
|
| 21 |
8016444
|
FUEL LINE
|
|
1
|
|
| 22 |
8018345
|
FUEL LINE
|
|
1
|
|
| 23 |
8018344
|
FUEL LINE
|
|
1
|
|
| 24 |
17281581
|
O-RING
|
|
1
|
|
| 25 |
8006339
|
CAP
|
|
1
|
|
| 26 |
16508711
|
NUT
|
|
1
|
|
| 27 |
4858608
|
SEAL GASKET
|
|
1
|
|
| 28 |
8017500
|
ELECTROVALVE
|
|
1
|
|
| 29 |
4724015
|
SCREW CONNECTOR
|
|
1
|
|
| 30 |
4858606
|
GASKET
|
|
1
|
|
| 31 |
4753563
|
PLUG
|
|
1
|
|
| 32 |
8020609
|
SCREW CONNECTOR
|
|
1
|
|
| 33 |
61608319
|
SCREW CONNECTOR
|
|
1
|
|
| 34 |
8102465
|
VALVE
|
|
1
|
|
