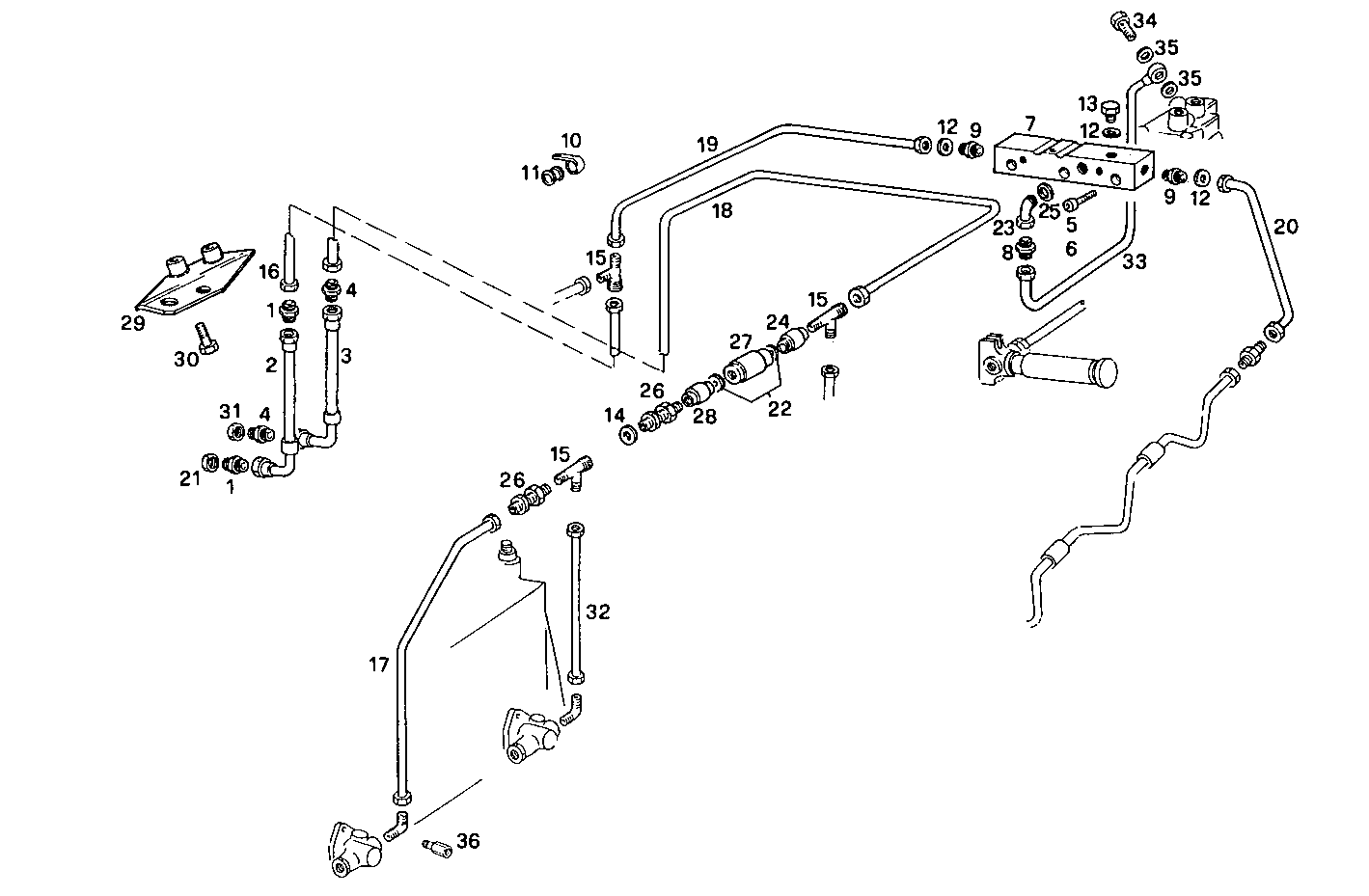

FUEL LINES

Assembly ID: 2030.083-01

FUEL LINES

Parts

# Part number Description Note Quantity
1 8011138 PIPE SOCKET 2
2 8112285 FUEL LINE 1
3 8010406 FUEL LINE 1
4 8010502 PIPE SOCKET 1
5 16691324 CYLIND-HEAD SCREW 2
6 16691224 CYLIND-HEAD SCREW 1
7 8018178 DISTRIBUTOR 1
8 16500011 PIPE SOCKET 2
9 16500214 THREADED UNION 4
10 4763804 FASTENING BRACKET 1
11 4757122 RUBBER PAD 4
12 4858608 SEAL GASKET 9
13 16992311 LOCK PLUG 1
14 11270260 SEAL GASKET 2
15 8011303 PIPE SOCKET 3
16 8020666 FUEL LINE 1
17 8018184 FUEL LINE 1
18 8020660 FUEL LINE 1
19 8018188 FUEL LINE 1
20 8018189 FUEL LINE 1
21 16508911 NUT 1
22 11271460 GASKET 2
23 16503811 ELBOW COUPLING 2
24 8018215 PIPE SOCKET 1
25 4858606 GASKET 2
26 8018203 PIPE SOCKET 2
27 8018220 VALVE 1
28 8011304 PIPE SOCKET 1
29 8014474 SUPPORT 1
30 16605924 SCREW 2
31 16509011 NUT 1
32 8018837 FUEL LINE 1
33 8021334 FUEL LINE 1
34 4864083 SCREW CONNECTOR 2
35 98474308 SEAL GASKET 4
36 8017715 PIPE SOCKET 1

Applies to engines

Engine Family
8291SRM75.12 8291SRM75 view
8291SRM75.32 8291SRM75 view
8291SRM85.12 8291SRM85 view
8291SRM75.32A003 8291SRM75 view
8291SRM75.32A005 8291SRM75 view
8291SRM75.32A007 8291SRM75 view
