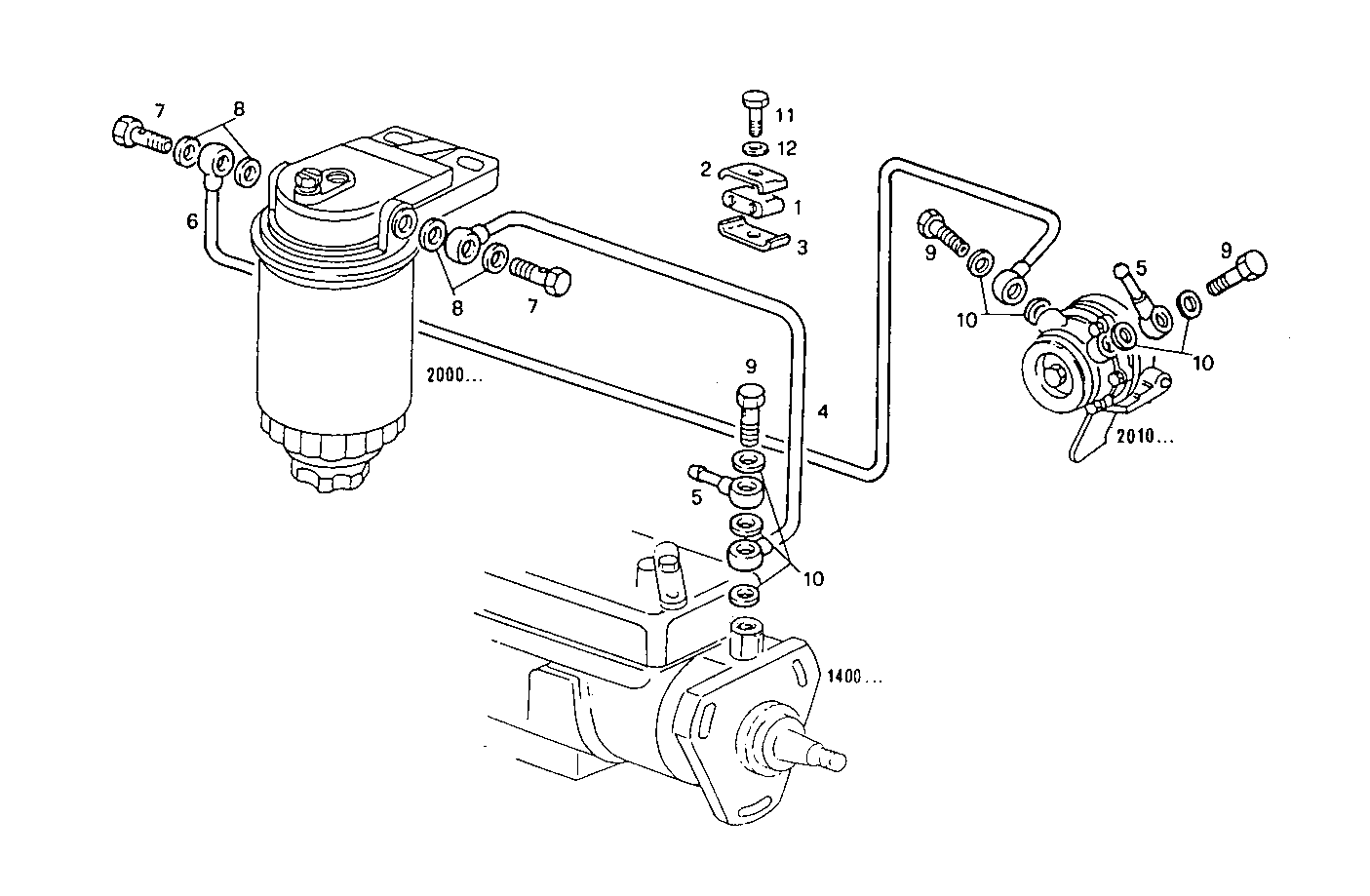

FUEL LINES
Assembly ID: 2030.096
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4659217 | DOWEL | 1 | ||
| 2 | 4659218 | CLIP | 1 | ||
| 3 | 4659219 | PLATE | 1 | ||
| 4 | 98419864 | FUEL LINE | 1 | ||
| 5 | 98416591 | SWIVEL COUPLING | 2 | ||
| 6 | 98419958 | FUEL LINE | 1 | ||
| 7 | 4864083 | SCREW CONNECTOR | 2 | ||
| 8 | 4858608 | SEAL GASKET | 4 | ||
| 9 | 4864082 | BANJO BOLT | 3 | ||
| 10 | 4858607 | WASHER | 7 | ||
| 11 | 10978221 | HEXAGON BOLT | 1 | ||
| 12 | 17494631 | SPRING WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8031i05.05A900 | GE8031i05 | view |
| GE8031i05.05A901 | GE8031i05 | view |
| GE8031i05.05A905 | GE8031i05 | view |
| GE8031i05.05A906 | GE8031i05 | view |
| GE8031i05.05A955 | GE8031i05 | view |
| GS8031i05.05 | GS8031i05 | view |
| GS8031i05.05A060 | GS8031i05 | view |
| GS8031i05.05A061 | GS8031i05 | view |
| GS8031i05.05A066 | GS8031i05 | view |
| GS8031i05.05A601 | GS8031i05 | view |
| GS8031i05.05A602 | GS8031i05 | view |
| GS8031i05.05A603 | GS8031i05 | view |
| GS8031i05.05A604 | GS8031i05 | view |
| GS8031i05.05A606 | GS8031i05 | view |
| GS8031i05.05A607 | GS8031i05 | view |
| GS8031i05.05A608 | GS8031i05 | view |
| GS8031i05.05A651 | GS8031i05 | view |
| GS8031i05.05A653 | GS8031i05 | view |
| GS8031i05.05A654 | GS8031i05 | view |
| GS8031i05.05A655 | GS8031i05 | view |
| 8031i05.05 | 8031i05 | view |
| 8031M06.01 | 8031M06 | view |
| 8031M06.21 | 8031M06 | view |
| PU8031i05.05A100 | PU8031i05 | view |
| 8031i05.05A500 | 8031i05 | view |
| 8031i05.05A520 | 8031i05 | view |
| 8031i05.05A652 | 8031i05 | view |
