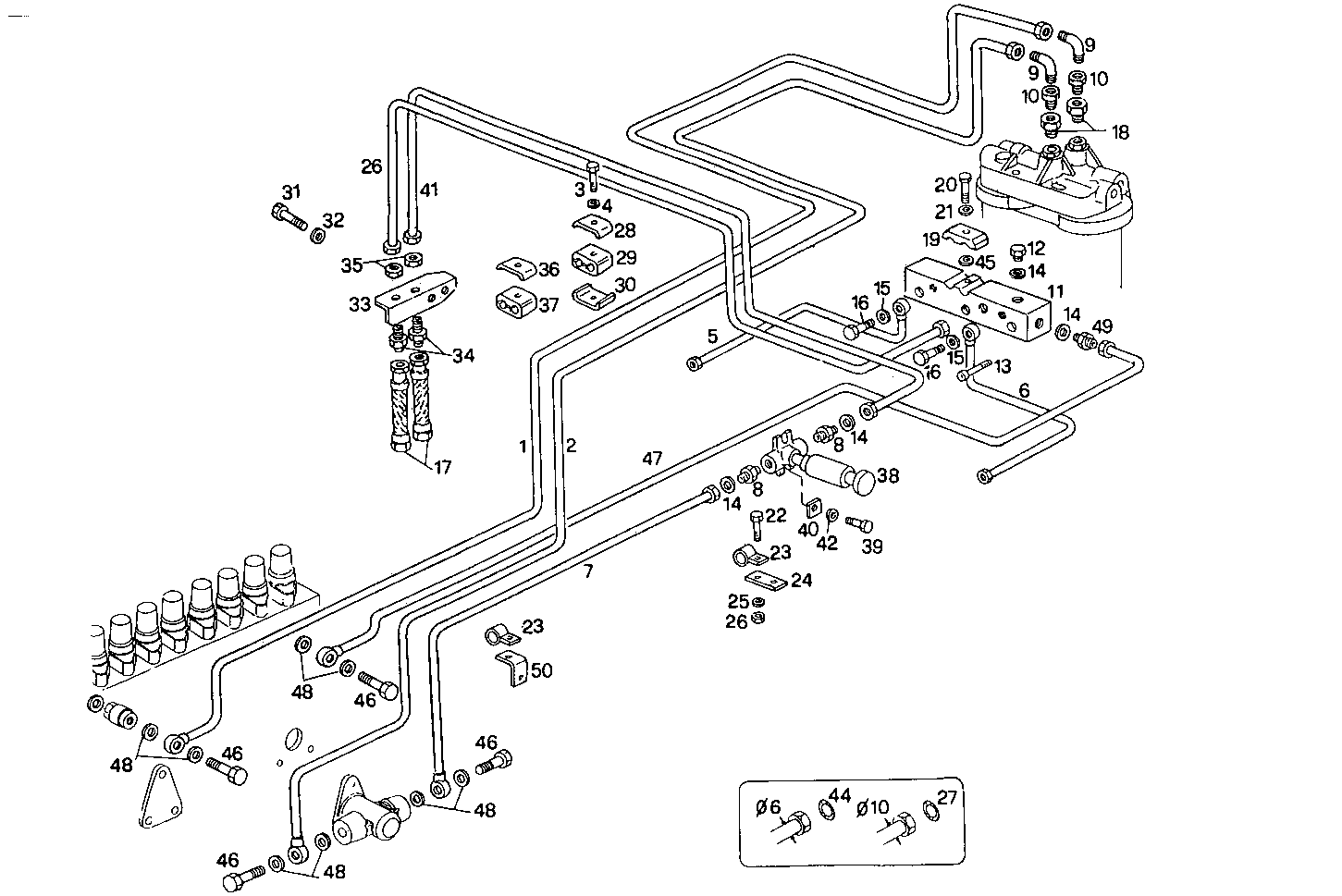

FUEL LINES

Assembly ID: 2030.110

FUEL LINES

Parts

# Part number Description Note Quantity
1 8030269 FUEL LINE 1
2 8030268 FUEL LINE 1
3 16603924 HEXAGON BOLT 2
4 17088974 SPRING WASHER 2
5 8030272 FUEL LINE 1
6 8030271 FUEL LINE 1
7 8030267 FUEL LINE 1
8 16500214 THREADED UNION 3
9 8025927 ELBOW COUPLING 2
10 8112283 PIPE SOCKET 2
11 8018178 DISTRIBUTOR 1
12 16992311 LOCK PLUG 2
13 16991324 SCREW 3
14 4858608 SEAL GASKET 5
15 98474305 WASHER 2
16 4864079 SCREW CONNECTOR 2
17 8112285 FUEL LINE 2
18 8112284 PIPE SOCKET 4
19 8010505 CLAMP 1
20 16605824 HEXAGON BOLT 1
21 17094904 WASHER 1
22 16605734 HEXAGON BOLT 2
23 17316490 CLIP 2
24 4929652 RETAINER 1
25 17089474 SPRING WASHER 2
26 8030275 FUEL LINE 1
27 8024646 O-RING 6
28 4644288 CLIP 2
29 4871771 RUBBER LUG 2
30 4644289 CLIP 2
31 15970521 HEXAGON BOLT 2
32 17090474 SPRING WASHER 2
33 8026306 RETAINER 1
34 8011138 PIPE SOCKET 2
35 16508811 NUT 2
36 4641551 CLAMP 1
37 4761451 RUBBER PAD 1
38 4797319 HAND PUMP 1
39 10902621 SCREW 2
40 7300648 LOCKING PLATE 2
41 8026469 FUEL LINE 1
42 16665404 WASHER 2
43 17037931 HEXAGON NUT 2
44 8024645 O-RING 2
45 8030277 SPACING BAR 2
46 4864083 SCREW CONNECTOR 4
47 8030270 FUEL LINE 1
48 98474308 SEAL GASKET 8
49 16500214 THREADED UNION 2
50 8110294 RETAINER 1

Applies to engines

Engine Family
8281SRM70.12 8281SRM70 view
8281SRM50.12 8281SRM50 view
8281SRM50.32 8281SRM50 view
