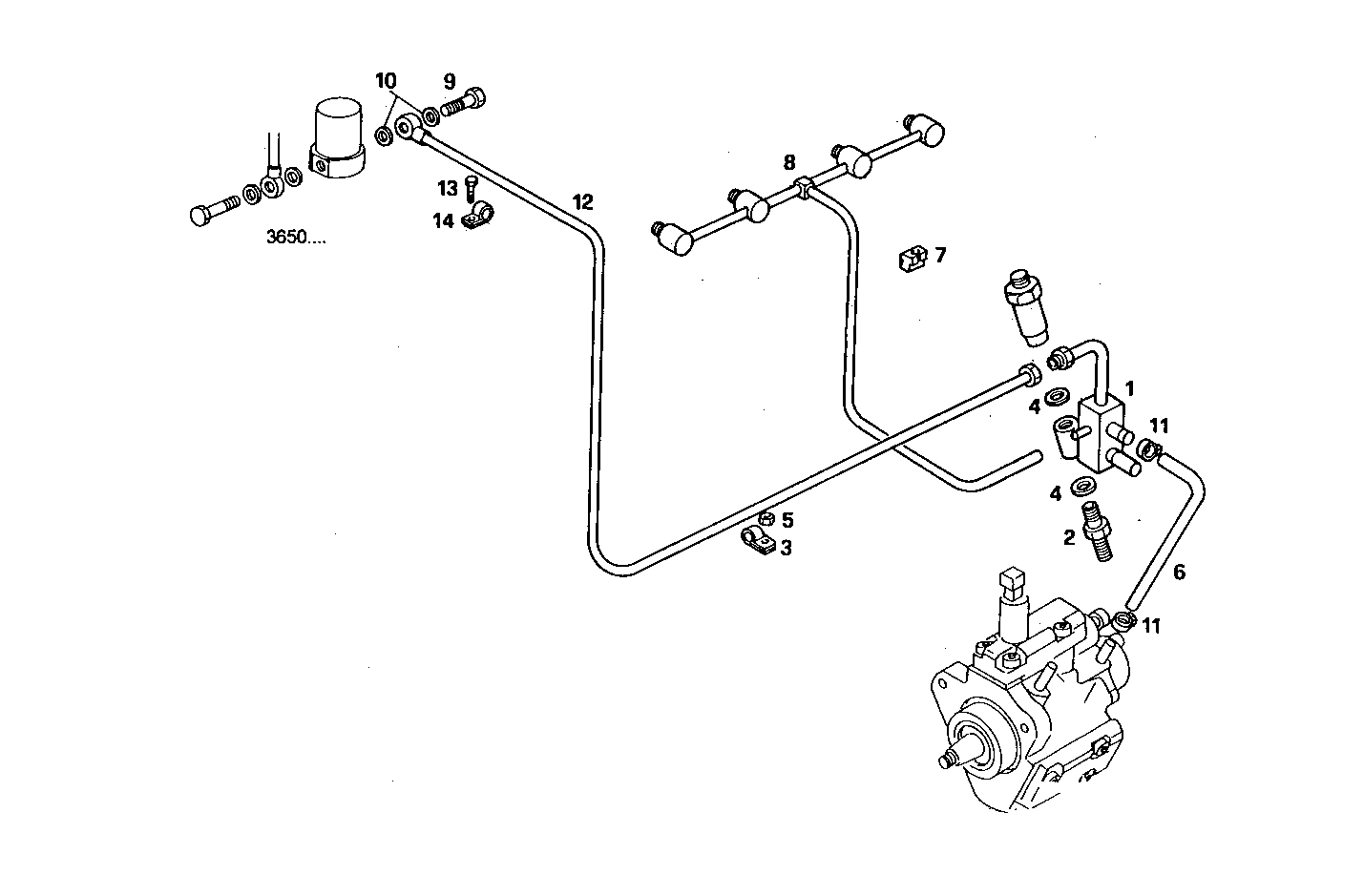

| 1 |
500335993
|
FUEL LINE
|
|
1
|
|
| 2 |
500335996
|
SCREW CONNECTOR
|
|
1
|
|
| 3 |
17316190
|
PIPE CLIP
|
|
1
|
|
| 4 |
4858609
|
WASHER
|
|
2
|
|
| 5 |
17044731
|
HEXAGON NUT
|
|
1
|
|
| 6 |
500332712
|
RUBBER SLEEVE
|
|
1
|
|
| 7 |
500326922
|
CHOCK
|
|
1
|
|
| 8 |
500322331
|
FUEL LINE
|
|
1
|
|
|
504007621 |
FUEL LINE |
|
1 |
|
| 9 |
7303136
|
SCREW CONNECTOR
|
|
1
|
|
| 10 |
10260160
|
SEAL GASKET
|
|
2
|
|
| 11 |
18088192
|
CLIP
|
|
2
|
|
| 12 |
8032413
|
FUEL LINE
|
|
1
|
|
| 13 |
16596924
|
HEXAGON BOLT
|
|
2
|
|
| 14 |
17314590
|
RETAINER
|
|
2
|
|
