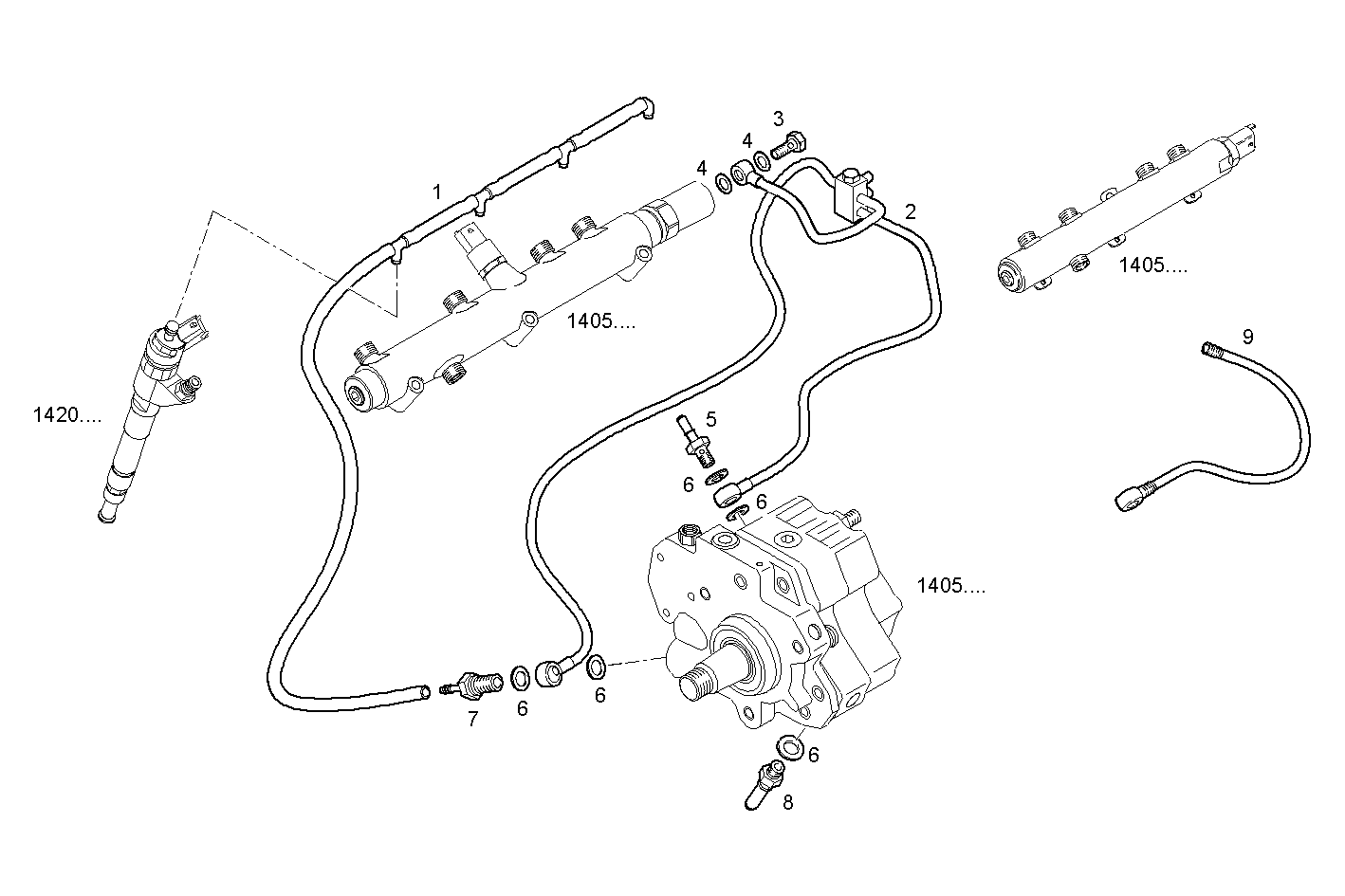

FUEL LINES
Assembly ID: 2030.254
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500392262 | FUEL LINE | 1 | ||
| 2 | 504023669 | FUEL LINE | 1 | ||
| 3 | 16511414 | SCREW CONNECTOR | 1 | ||
| 4 | 4858609 | WASHER | 2 | ||
| 5 | 504017300 | SCREW CONNECTOR | 1 | ||
| 6 | 10296160 | SEAL GASKET | 5 | ||
| 7 | 500391535 | SCREW CONNECTOR | 1 | ||
| 8 | 500398308 | SCREW CONNECTOR | 1 | ||
| 9 | 504088125 | FUEL LINE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
| S23ENSC24.20A001 | SOFIM HPI 2.3L - TIER 2 | view |
