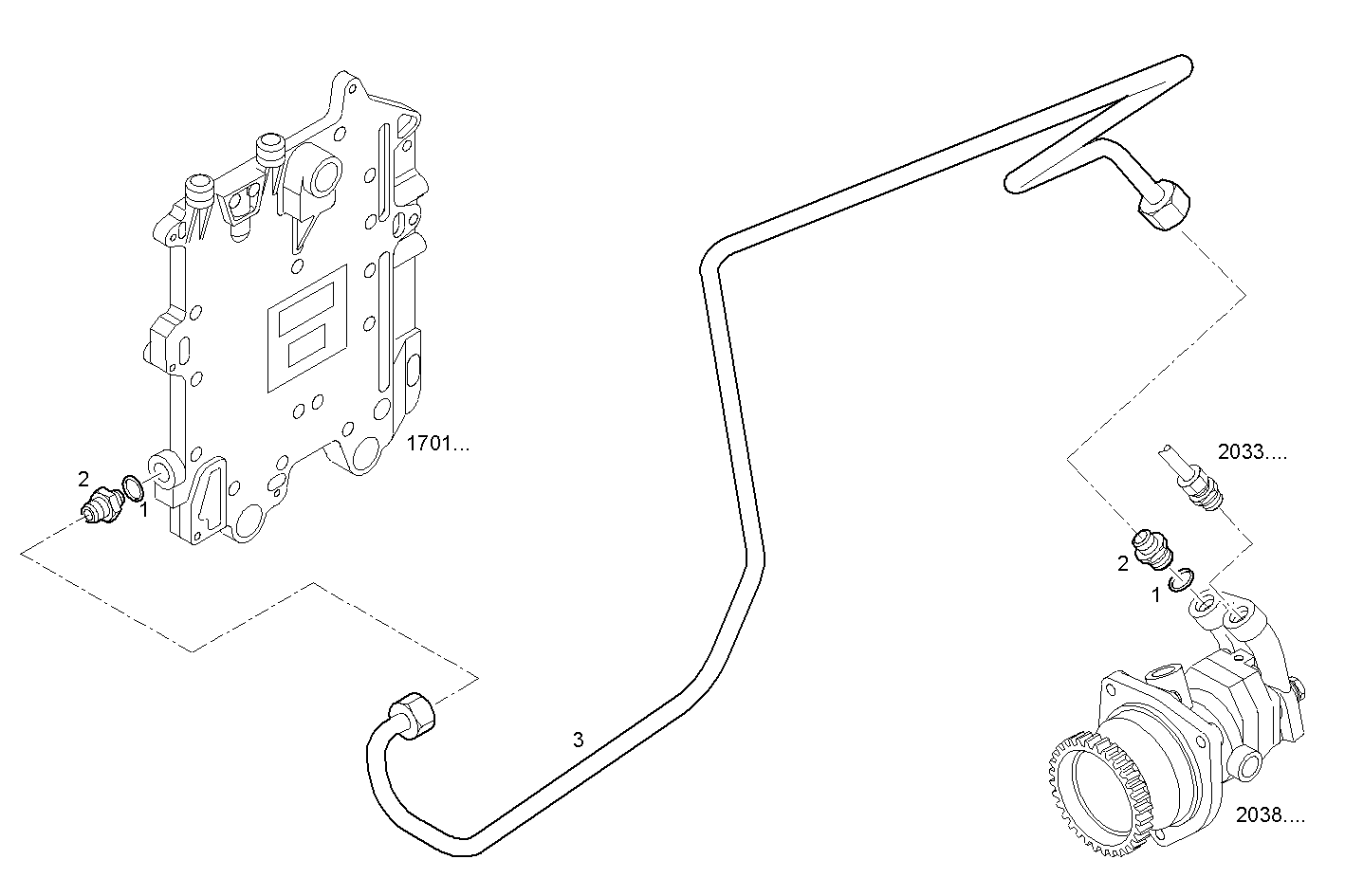

FUEL LINES - INLET TO FUEL PUMP
Assembly ID: 2031.021
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99489019 | WASHER | 2 | ||
| 2 | 504081274 | THREADED UNION | 2 | ||
| 3 | 504036036 | FUEL LINE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0681D*B315 | CURSOR 10 - EURO 3 | view |
| C10ENTC23.00A002 | CURSOR 10 - EURO 3 | view |
