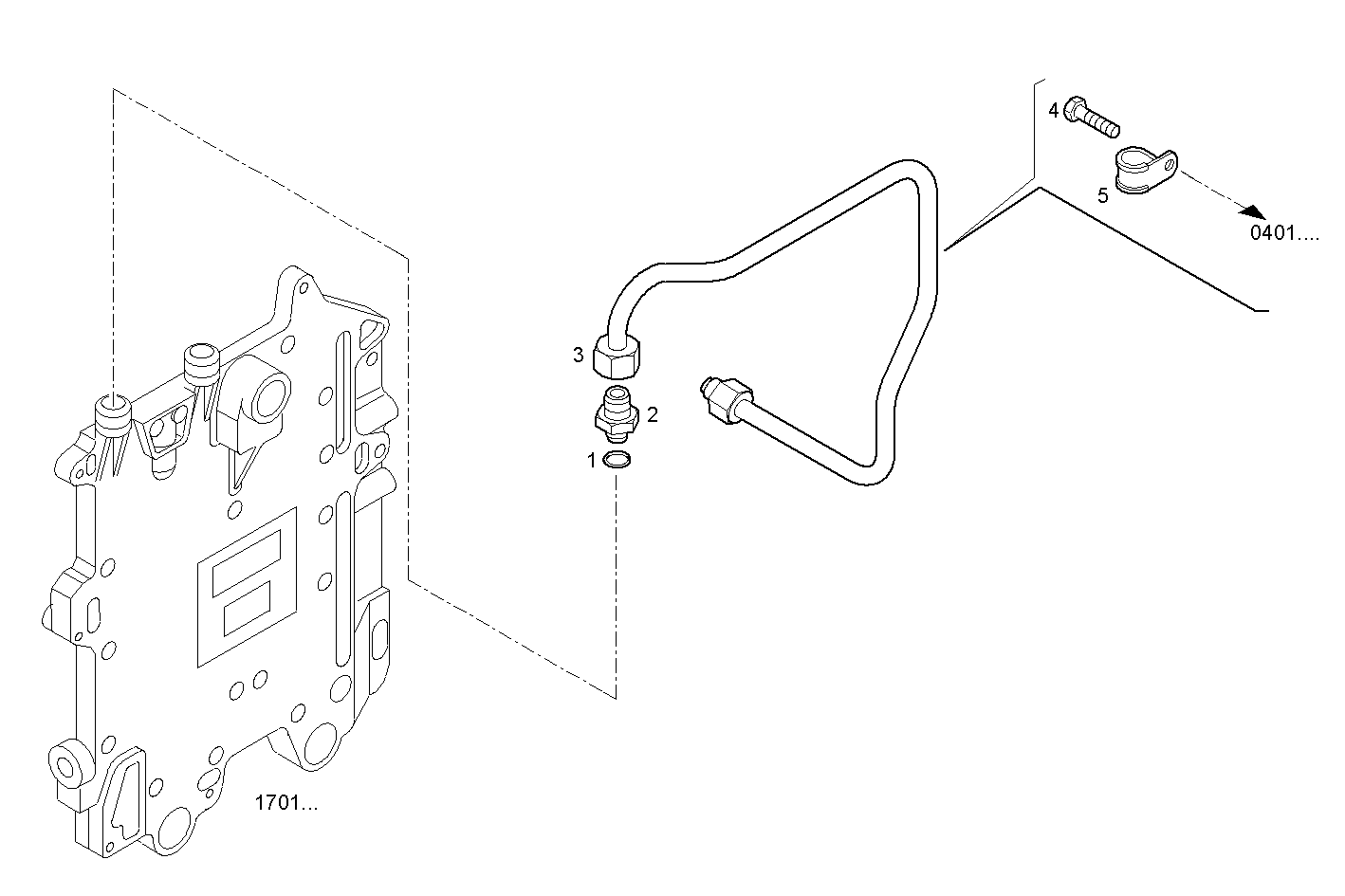

FUEL LINES - INLET TO E.C.U.

Assembly ID: 2032.001

FUEL LINES - INLET TO E.C.U.

Parts

# Part number Description Note Quantity
1 99489019 WASHER 1
2 504081274 THREADED UNION 1
3 504146524 FUEL LINE 1
4 16597925 HEXAGON BOLT 1
5 17316592 PIPE CLIP 2

Applies to engines

Engine Family
F3AE9687A*E001 CURSOR 10 - TIER 3 view
C10ENTX20.00 CURSOR 10 - TIER 3 view
C10ENTX20.00A800 CURSOR 10 - TIER 3 view
C10ENTX20.00A801 CURSOR 10 - TIER 3 view
F3AE9685A*E001 CURSOR 10 - 2002/88/CE TIER 3 view
C10ENTX60.00 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.X001 CURSOR 10 - 2002/88/CE TIER 3 view
F3AE9687B*E001 CURSOR 10 - TIER 3 view
F3AE9687C*E001 CURSOR 10 - TIER 3 view
CURSOR10TE1D.R991 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.R990 GECURSOR 10 - 2002/88/CE-TIER3 view
C10ENTX20.00A802 CURSOR 10 - TIER 3 view
CURSOR10TE1D.S550 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.A559 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.A551 GECURSOR 10 - 2002/88/CE-TIER3 view
GECURSOR300ED.A71M GECURSOR 10 - 2002/88/CE-TIER3 view
C10ENTX20.00A008 CURSOR 10 - TIER 3 view
CURSOR10TE1D.A001 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.A008 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1.X001 CURSOR 10 - 2002/88/CE TIER 3 view
