FUEL LINES -INLET TO FILTER

Assembly ID: 2033.011

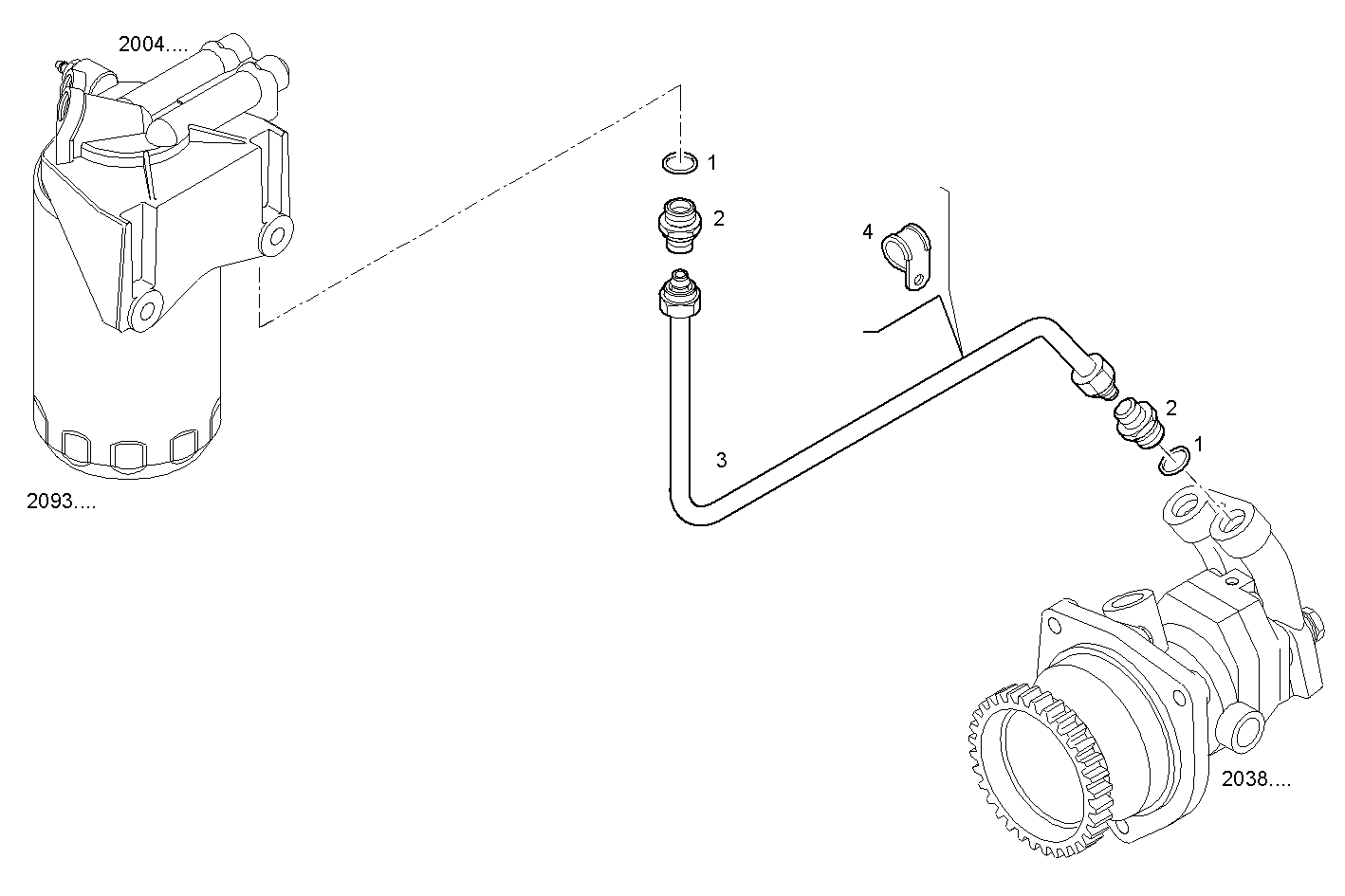

FUEL LINES -INLET TO FILTER

Parts

# Part number Description Note Quantity
1 99489019 WASHER 2
2 16500314 THREADED UNION 2
3 504194537 FUEL LINE 1
4 17316599 PIPE CLIP 1

Applies to engines

Engine Family
GECURSOR400ES.R990 GECURSOR 13 - 2002/88/CE view
F3BE0685A*B001 CURSOR 13 - TIER 2 view
C13ENTE60.00 CURSOR 13 - TIER 2 view
GECURSOR400E.R990 GECURSOR 13 - TIER 2 view
CURSOR13TE3.A003 CURSOR 13 - TIER 2 view
C13ENTE61.00 CURSOR 13 - TIER 2 view
C13ENTE62.00 CURSOR 13 - TIER 2 view
CURSOR13TE2.A001 CURSOR 13 - TIER 2 view
CURSOR13TE2.A002 CURSOR 13 - TIER 2 view
CURSOR13TE3.A001 CURSOR 13 - TIER 2 view
CURSOR13TE3.A002 CURSOR 13 - TIER 2 view
CURSOR13TE1.A001 CURSOR 13 - TIER 2 view
CURSOR13TE1.A002 CURSOR 13 - TIER 2 view
GECURSOR300E.R990 GECURSOR 13 - TIER 2 view
GECURSOR350E.R990 GECURSOR 13 - TIER 2 view
CURSOR13TE1.A003 CURSOR 13 - TIER 2 view
F3BE9685A*E001 CURSOR 13 - TIER 3 view
C13ENTX60.00 CURSOR 13 - TIER 3 view
C13ENTX61.00 CURSOR 13 - TIER 3 view
C13ENTX62.00 CURSOR 13 - TIER 3 view
CURSOR13TE1.A559 CURSOR 13 - TIER 2 view
GECURSOR300E.A551 GECURSOR 13 - TIER 2 view
GECURSOR300E.A71M GECURSOR 13 - TIER 2 view
CURSOR13TE2.A559 CURSOR 13 - TIER 2 view
GECURSOR350E.A551 GECURSOR 13 - TIER 2 view
GECURSOR350E.A71M GECURSOR 13 - TIER 2 view
CURSOR13TE3.A559 CURSOR 13 - TIER 2 view
GECURSOR400E.A551 GECURSOR 13 - TIER 2 view
GECURSOR400E.A71M GECURSOR 13 - TIER 2 view
CURSOR13TE3X.R991 CURSOR 13 - TIER 3 view
GECURSOR350ES.R990 GECURSOR 13 - 2002/88/CE view
GECURSOR350ES.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR350ES.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR350ES.A001 GECURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A004 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A001 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.A001 CURSOR 13 - 2002/88/CE view
F3BE0685A*B101 CURSOR 13 - 2002/88/CE view
C13ENTA60.00 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A001 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.S550 CURSOR 13 - 2002/88/CE view
GECURSOR400EA.A001 GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.R990 GECURSOR 13 - 2002/88/CE view
C13ENTA61.00 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A001 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A004 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.S550 CURSOR 13 - 2002/88/CE view
GECURSOR350EA.A001 GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.R990 GECURSOR 13 - 2002/88/CE view
CURSOR13TE3X.A001 CURSOR 13 - TIER 3 view
CURSOR13TE2S.S550 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.S550 CURSOR 13 - 2002/88/CE view
F3BE0685C*B001 CURSOR 13 - TIER 2 view
CURSOR13TE3X.A008 CURSOR 13 - TIER 3 view
GECURSOR300E.A001 GECURSOR 13 - TIER 2 view
GECURSOR350E.A001 GECURSOR 13 - TIER 2 view
GECURSOR400E.A001 GECURSOR 13 - TIER 2 view
CURSOR13TE2.A003 CURSOR 13 - TIER 2 view
CURSOR13TE3S.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE3X.A011 CURSOR 13 - TIER 3 view
CURSOR13TE3S.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.S550 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.A559 CURSOR 13 - 2002/88/CE view
