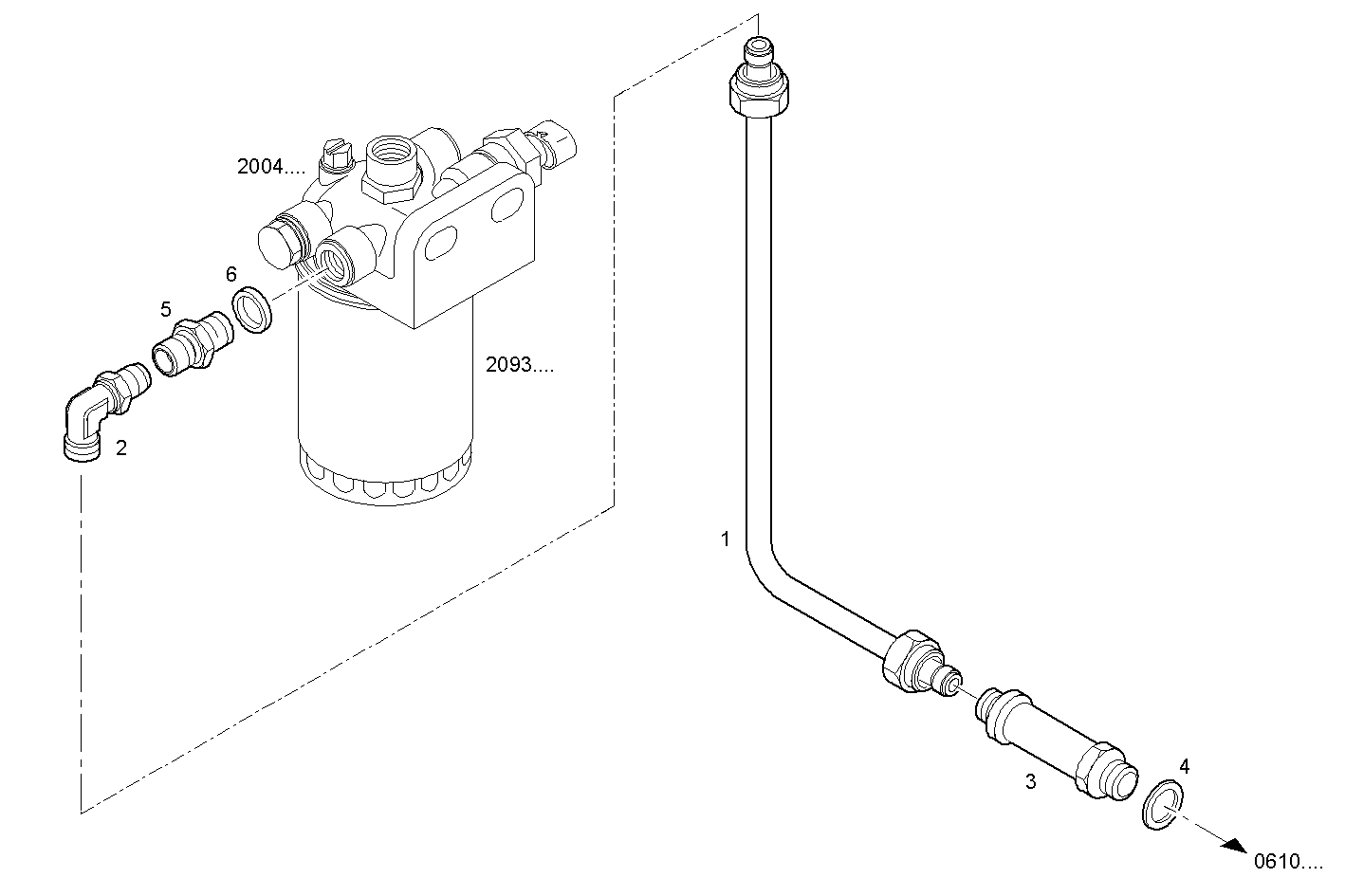

FUEL LINES - FILTER TO CYLINDER HEAD
Assembly ID: 2034.004
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500363366 | FUEL LINE | 1 | ||
| 2 | 16504114 | ELBOW COUPLING | 1 | ||
| 3 | 99455350 | CONNECTION PIPE | 1 | ||
| 4 | 99489019 | WASHER | 1 | ||
| 5 | 1245715 | THREADED UNION | 1 | ||
| 6 | 99489018 | SEAL GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0682F*B403 | CURSOR 8 - EURO 3 | view |
| C78ENTC25.00A003 | CURSOR 8 - EURO 3 | view |
