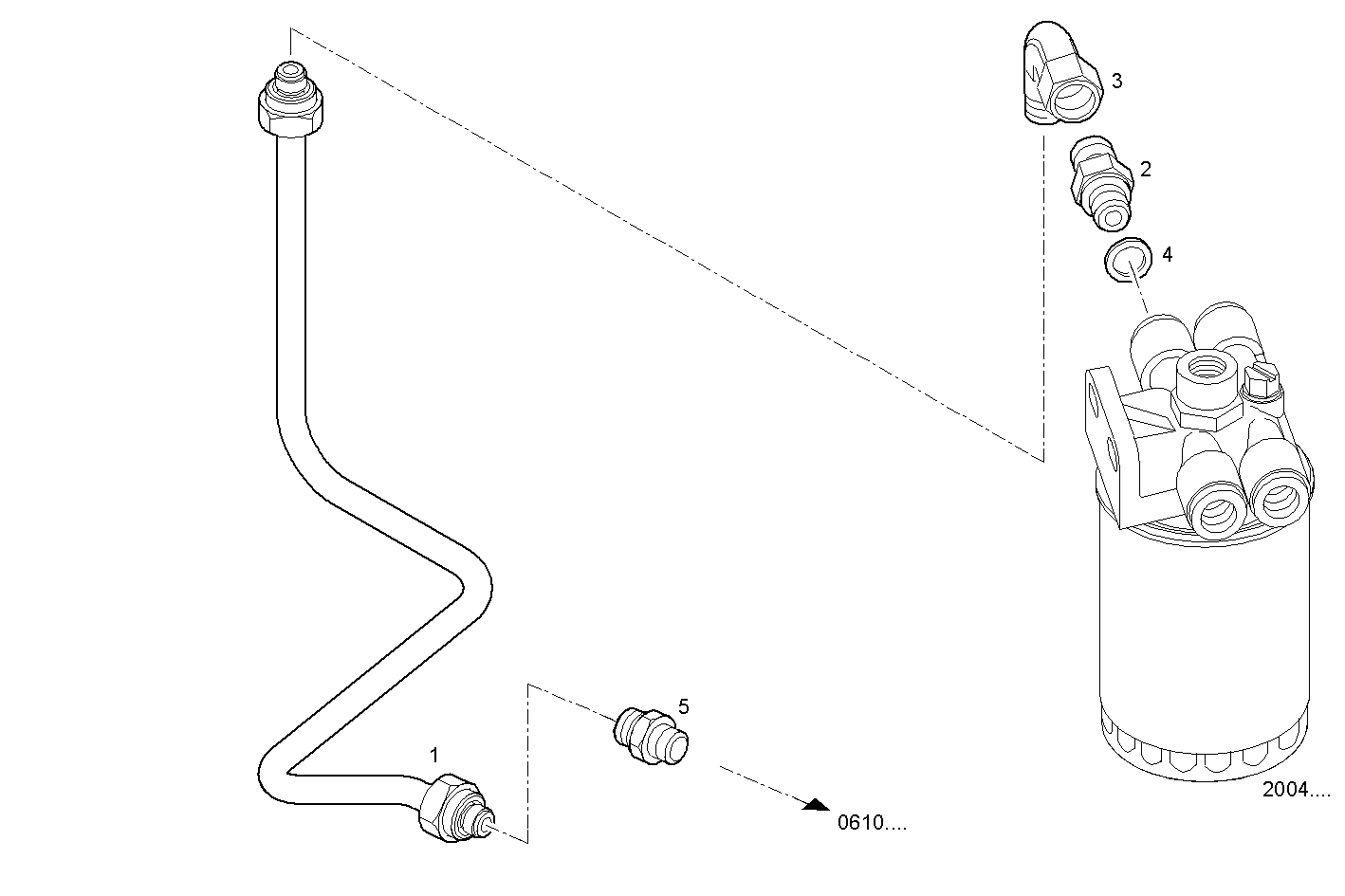

FUEL LINES - FILTER TO CYLINDER HEAD
Assembly ID: 2034.016
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8047167 | FUEL LINE | 1 | ||
| 2 | 8014143 | PIPE SOCKET | 1 | ||
| 3 | 16504114 | ELBOW COUPLING | 1 | ||
| 4 | 99489018 | SEAL GASKET | 1 | ||
| 5 | 504081274 | THREADED UNION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTF40.00 | CURSOR 8 - TIER 2 | view |
| C78ENTF41.00 | CURSOR 8 - TIER 2 | view |
