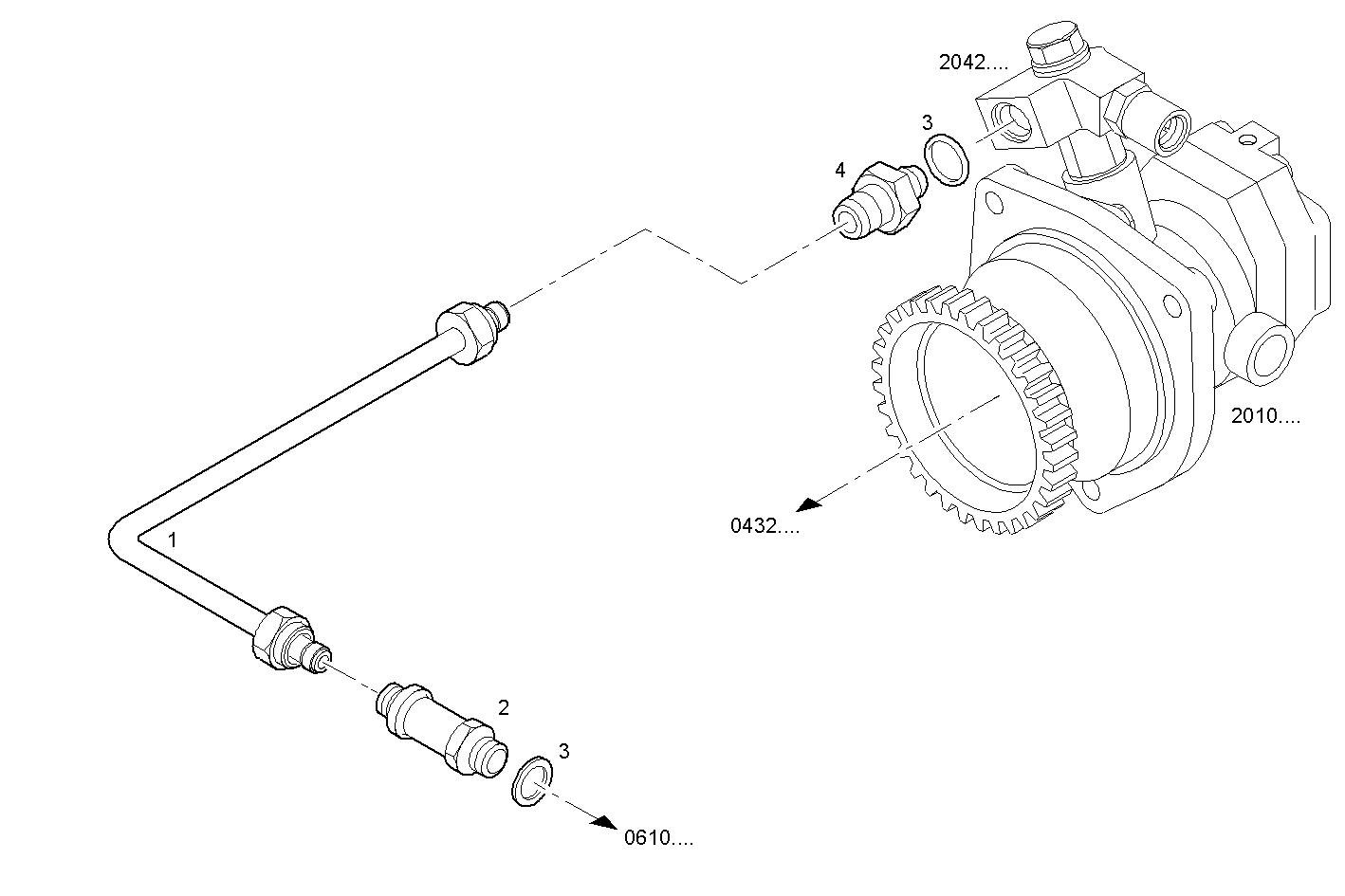

FUEL LINES - RETURN TO FUEL PUMP
Assembly ID: 2036.002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8040684 | FUEL LINE | 1 | ||
| 2 | 500310076 | PIPE SOCKET | 1 | ||
| 3 | 99489019 | WASHER | 2 | ||
| 4 | 16500315 | THREADED UNION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
| C13ENTM50.10 | CURSOR 13 | view |
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENAM19.00 | CURSOR 13 | view |
| C13ENSM33.30 | CURSOR 13 | view |
| C13ENTM50.30 | CURSOR 13 | view |
| C13ENTM50.12 | CURSOR 13 | view |
