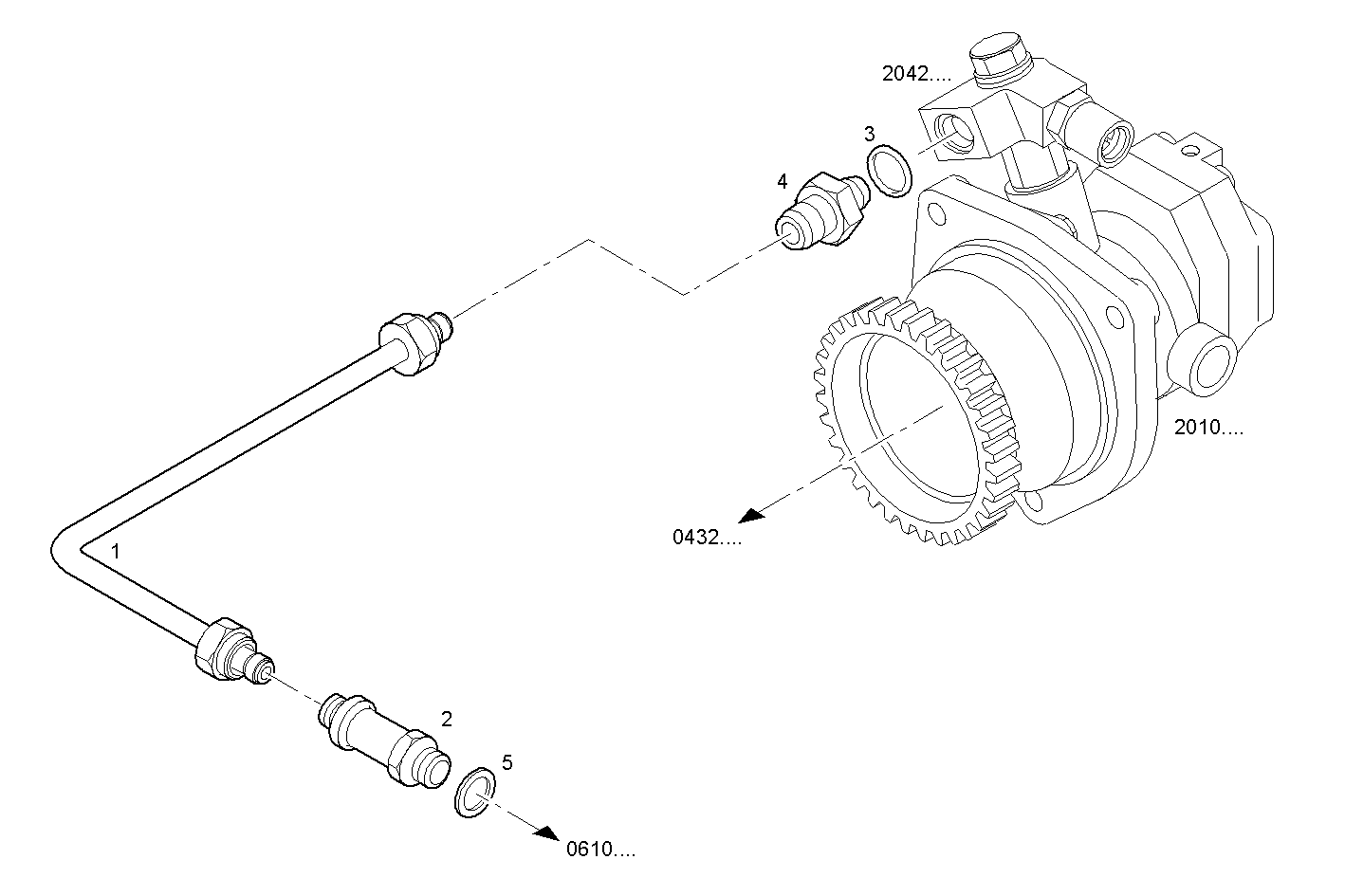

FUEL LINES - RETURN TO FUEL PUMP
Assembly ID: 2036.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8045017 | FUEL LINE | 1 | ||
| 2 | 500346225 | PIPE SOCKET | 1 | ||
| 3 | 98474308 | SEAL GASKET | 1 | ||
| 4 | 41905554 | PIPE SOCKET | 1 | ||
| 5 | 99489019 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENAM19.00 | CURSOR 13 | view |
