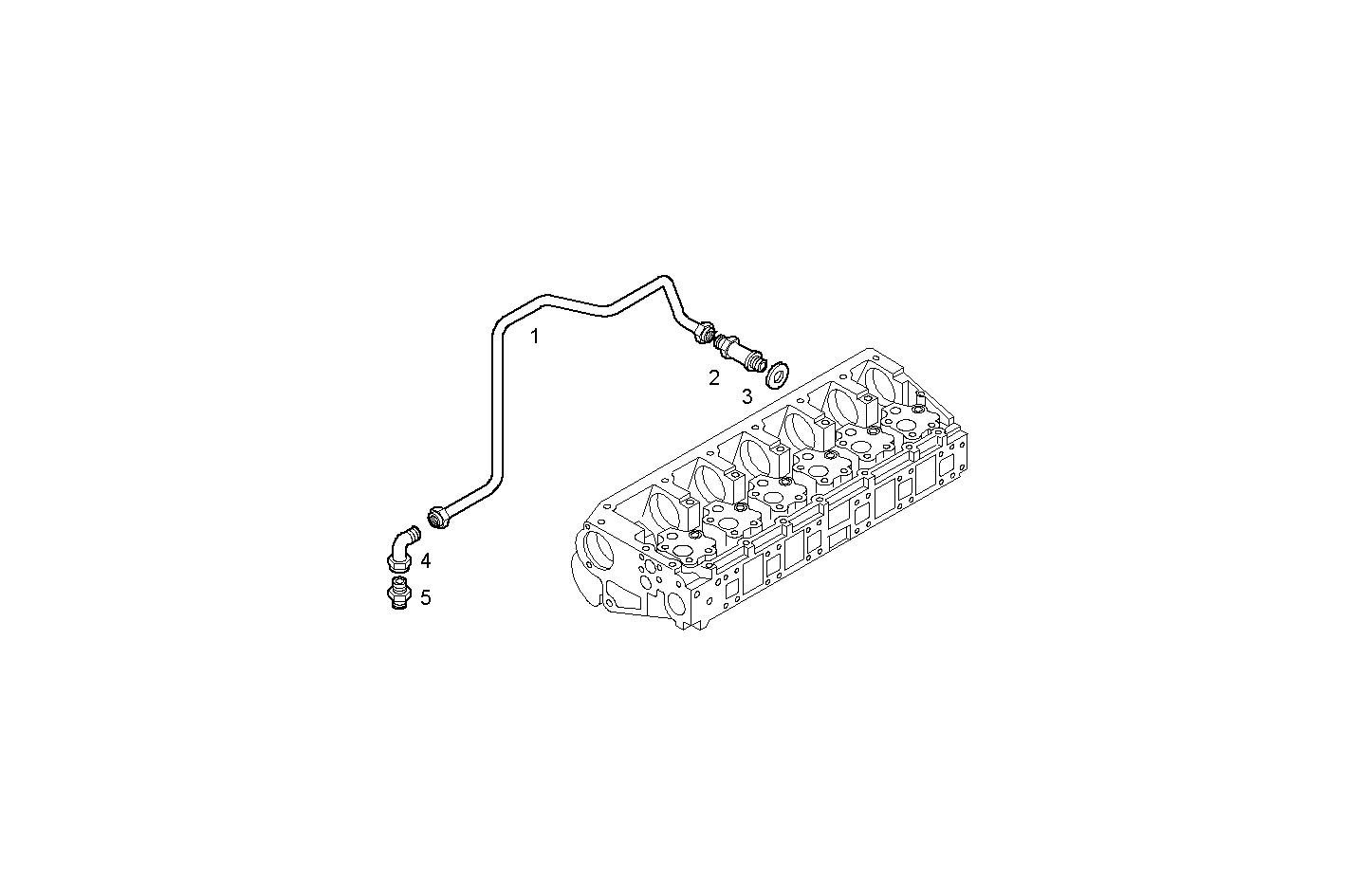

FUEL LINES - RETURN TO FUEL PUMP
Assembly ID: 2036.010
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504007954 | FUEL LINE | 1 | ||
| 2 | 99455351 | CONNECTION PIPE | 1 | ||
| 3 | 99489018 | SEAL GASKET | 1 | ||
| 4 | 16504114 | ELBOW COUPLING | 1 | ||
| 5 | 504081274 | THREADED UNION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0685A*B301 | CURSOR 8 - TIER 2 | view |
| C78ENTE60.00 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A850 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.R990 | GECURSOR 8 - TIER 2 | view |
| F2BE0685A*B302 | CURSOR 8 - TIER 2 | view |
| C78ENTE60.10 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1R990 | GECURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A559 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A551 | GECURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A71M | GECURSOR 8 - TIER 2 | view |
| GECURSOR250ES.R990 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A001 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A551 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A71M | GECURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A001 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A002 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A559 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.S550 | CURSOR 8 - 2002/88/CE | view |
