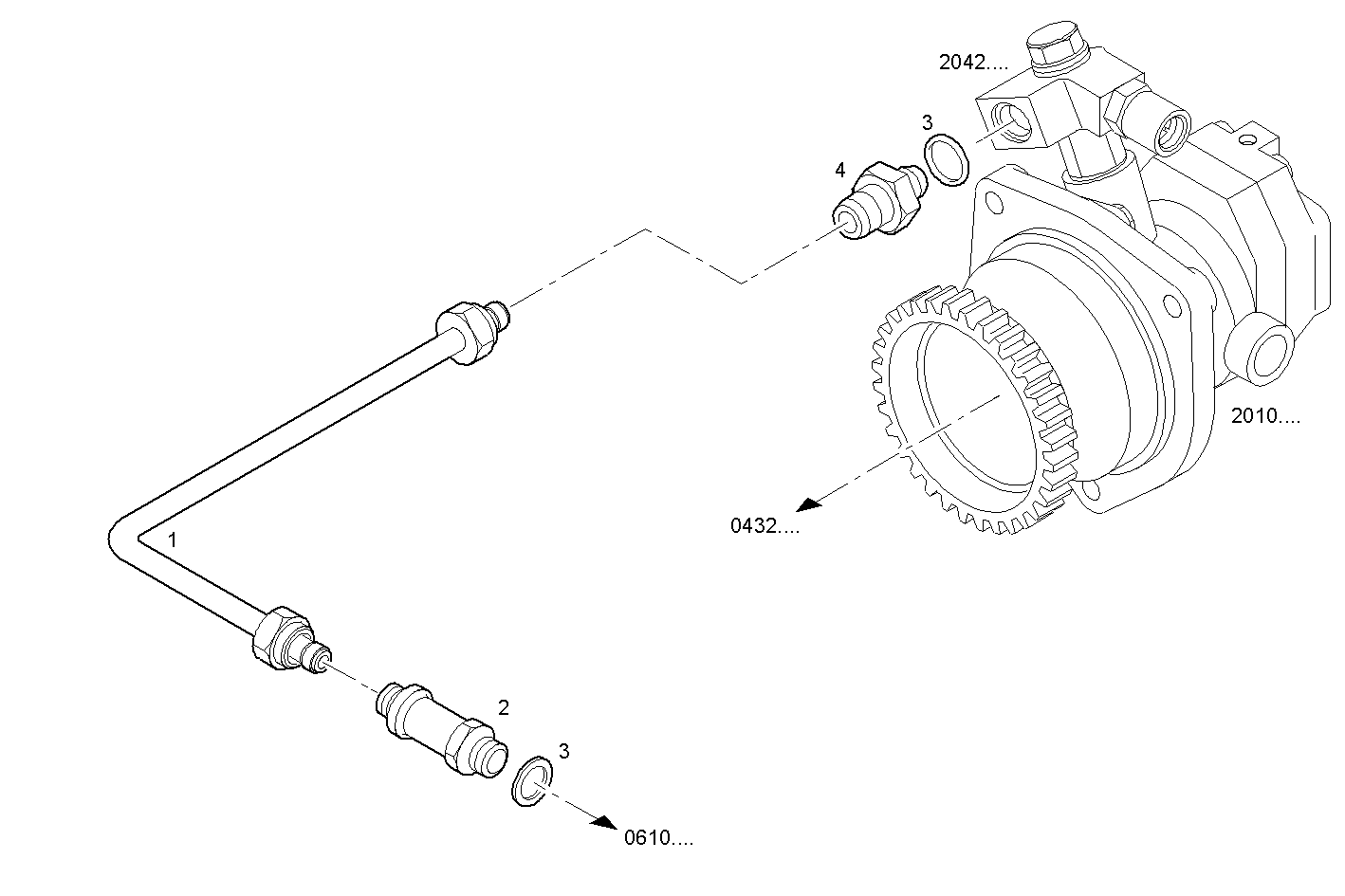

FUEL LINES - RETURN TO FUEL PUMP
Assembly ID: 2036.011
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500352447 | FUEL LINE | 1 | ||
| 2 | 500310076 | PIPE SOCKET | 1 | ||
| 3 | 99489019 | WASHER | 2 | ||
| 4 | 504081274 | THREADED UNION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684A*B002 | CURSOR 13 - TIER 2 | view |
| F3BE0684E*B003 | CURSOR 13 - TIER 2 | view |
| F3BE0687A*B301 | CURSOR 13 - TIER 2 | view |
| C13ENTD20.00 | CURSOR 13 - TIER 2 | view |
| C13ENTE20.00 | CURSOR 13 - TIER 2 | view |
| GECURSOR400ES.R990 | GECURSOR 13 - 2002/88/CE | view |
| F3BE0684E*B101 | CURSOR 13 - TIER 2 | view |
| F3BE0685A*B001 | CURSOR 13 - TIER 2 | view |
| C13ENTE60.00 | CURSOR 13 - TIER 2 | view |
| GECURSOR400E.R990 | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE3.A003 | CURSOR 13 - TIER 2 | view |
| C13ENTE61.00 | CURSOR 13 - TIER 2 | view |
| C13ENTE62.00 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE2.A001 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE2.A002 | CURSOR 13 - TIER 2 | view |
| C13ENTD20.00A800 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE3.A001 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE3.A002 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE1.A001 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE1.A002 | CURSOR 13 - TIER 2 | view |
| GECURSOR300E.R990 | GECURSOR 13 - TIER 2 | view |
| GECURSOR350E.R990 | GECURSOR 13 - TIER 2 | view |
| C13ENTI20.00 | CURSOR 13 - TIER 2 | view |
| C13ENTI20.00A100 | CURSOR 13 - TIER 2 | view |
| F3BE0684G*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E902 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE1.A003 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE1.A559 | CURSOR 13 - TIER 2 | view |
| GECURSOR300E.A551 | GECURSOR 13 - TIER 2 | view |
| GECURSOR300E.A71M | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE2.A559 | CURSOR 13 - TIER 2 | view |
| GECURSOR350E.A551 | GECURSOR 13 - TIER 2 | view |
| GECURSOR350E.A71M | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE3.A559 | CURSOR 13 - TIER 2 | view |
| GECURSOR400E.A551 | GECURSOR 13 - TIER 2 | view |
| GECURSOR400E.A71M | GECURSOR 13 - TIER 2 | view |
| F3BE0684H*E901 | CURSOR 13 - TIER 3 | view |
| F3BE9687A*E001 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A800 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A801 | CURSOR 13 - TIER 3 | view |
| F3BE0684J*E902 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A802 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| C13ENTX20.00A005 | CURSOR 13 - TIER 3 | view |
| F3CE0684A*E001 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684N*E904 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E903 | CURSOR 13 - TIER 3 | view |
| PUC13ENTD20.00 | CURSOR 13 - TIER 2 | view |
| PUC13ENTD20.00A100 | CURSOR 13 - TIER 2 | view |
| GECURSOR350ES.R990 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350ES.A71M | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350ES.A551 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350ES.A001 | GECURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A559 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A004 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A003 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A002 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A001 | CURSOR 13 - 2002/88/CE | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| CURSOR13TE3S.A001 | CURSOR 13 - 2002/88/CE | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3CE0684E*E004 | CURSOR 13 TCD - TIER 3 | view |
| CURSOR13TE2S.S550 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3S.S550 | CURSOR 13 - 2002/88/CE | view |
| F3BE0687A*B302 | CURSOR 13 - TIER 2 | view |
| C13ENTD20.20 | CURSOR 13 - TIER 2 | view |
| F3BE0684N*E906 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| GECURSOR300E.A001 | GECURSOR 13 - TIER 2 | view |
| GECURSOR350E.A001 | GECURSOR 13 - TIER 2 | view |
| GECURSOR400E.A001 | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE2.A003 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE3S.A003 | CURSOR 13 - 2002/88/CE | view |
| PUC13ENTD20.20A100 | CURSOR 13 - TIER 2 | view |
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
| CURSOR13TE3S.A002 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3S.S550 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3S.A559 | CURSOR 13 - 2002/88/CE | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
