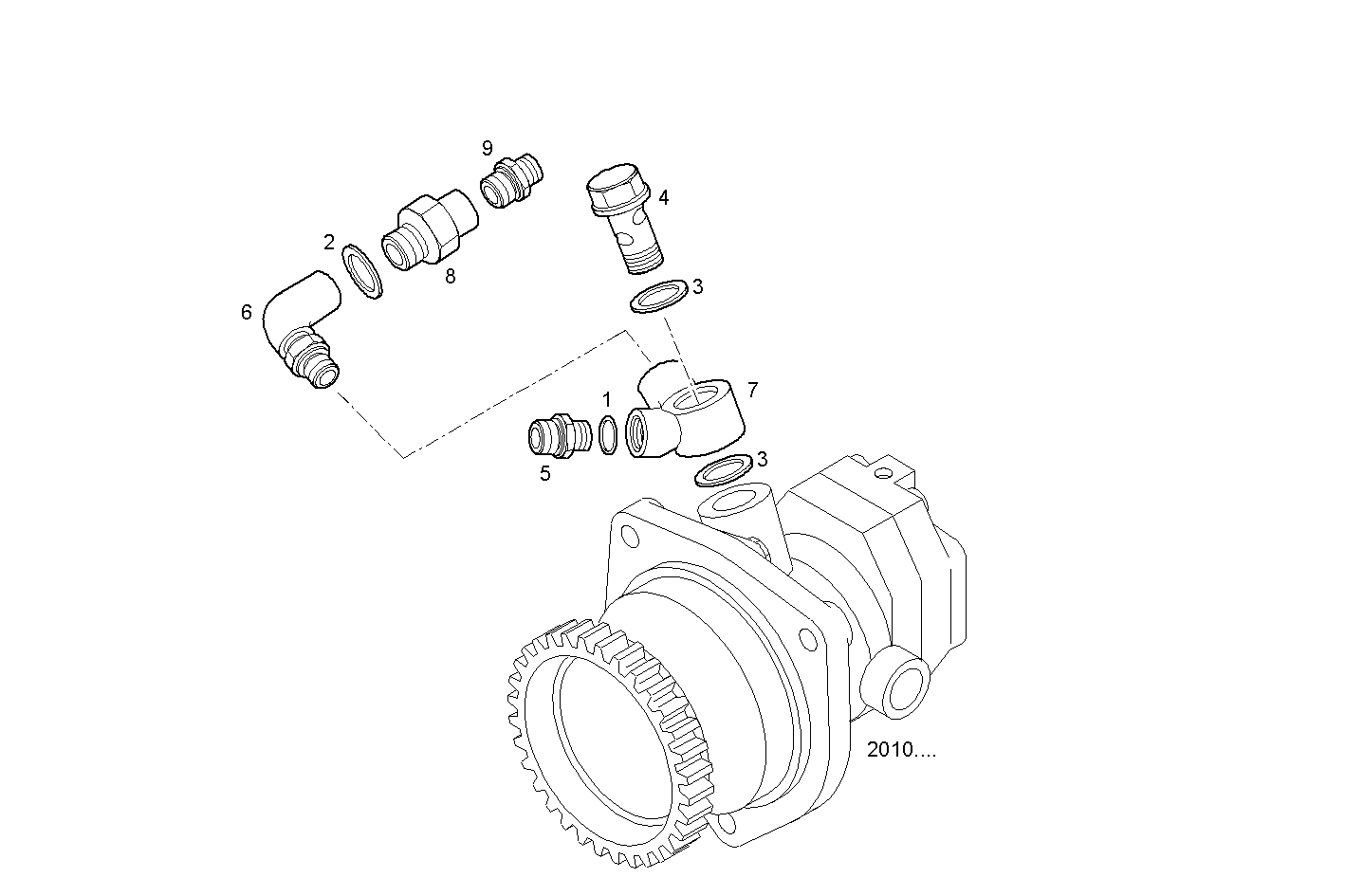

EXCESS PRESSURE RELIEF VALVE
Assembly ID: 2042.007
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99489019 | WASHER | 1 | ||
| 2 | 99489018 | SEAL GASKET | 1 | ||
| 3 | 98474309 | WASHER | 2 | ||
| 4 | 4864084 | BANJO BOLT | 1 | ||
| 5 | 16500314 | THREADED UNION | 1 | ||
| 6 | 500350162 | ELBOW COUPLING | 1 | ||
| 7 | 500348306 | PIPE SOCKET | 1 | ||
| 8 | 500328251 | VALVE | 1 | ||
| 9 | 41031567 | THREADED UNION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0684D*B102 | CURSOR 10 - TIER 2 | view |
| F3BE0684E*B101 | CURSOR 13 - TIER 2 | view |
| C10ENTC23.00A004 | CURSOR 10 - TIER 2 | view |
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
