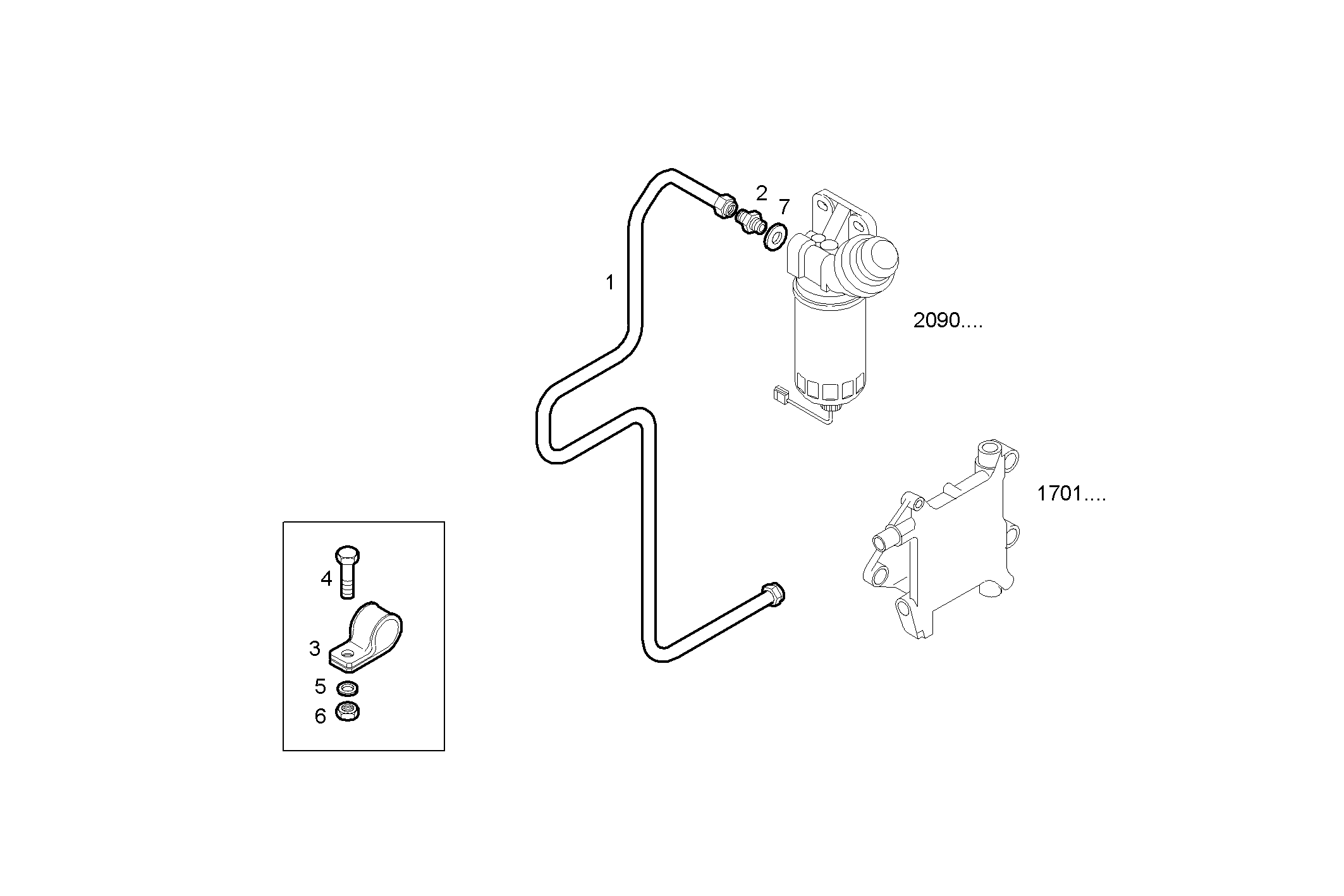

FUEL LINES - PREFILTER TO E.C.U.
Assembly ID: 2052.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8042301 | FUEL LINE | 1 | ||
| 2 | 504081274 | THREADED UNION | 1 | ||
| 3 | 17316490 | CLIP | 1 | ||
| 4 | 16605424 | SCREW | 1 | ||
| 5 | 17089474 | SPRING WASHER | 1 | ||
| 6 | 16506915 | NUT | 1 | ||
| 7 | 16507614 | WASHER | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTE60.10 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1R990 | GECURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A559 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A551 | GECURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A71M | GECURSOR 8 - TIER 2 | view |
| GECURSOR250ES.R990 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A001 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A551 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A71M | GECURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A001 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A002 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A559 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.S550 | CURSOR 8 - 2002/88/CE | view |
