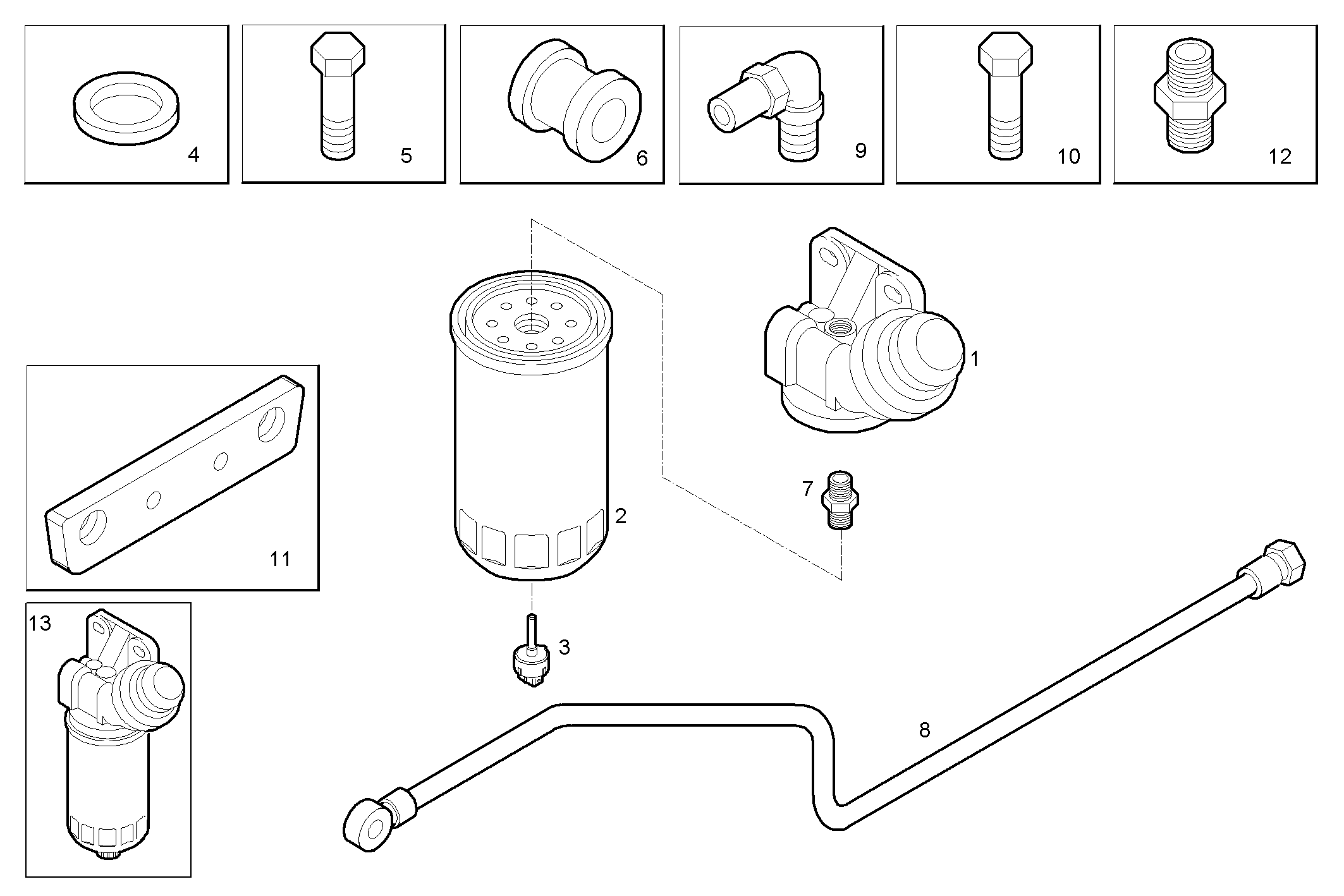

FUEL PREFILTER
Assembly ID: 2090.007
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 42545573 | FUEL FILT.SUPPORT | 1 | ||
| 2 | 2992662 | FUEL FILTER ELEM. | 1 | ||
| 3 | 42540203 | SENSOR | 1 | ||
| 4 | 98474308 | SEAL GASKET | 3 | ||
| 5 | 16675835 | HEXAGON BOLT | 2 | ||
| 6 | 4899791 | RUBBER PAD | 2 | ||
| 7 | 42545574 | THREADED UNION | 1 | ||
| 8 | 8019054 | HOSE | 1 | ||
| 9 | 8025927 | ELBOW COUPLING | 1 | ||
| 10 | 16586825 | HEXAGON BOLT | 2 | ||
| 11 | 8035659 | RETAINER | 1 | ||
| 12 | 8035773 | THREADED UNION | 1 | ||
| 13 | 504057743 | PREFILTER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67ENTX67.00 | NEF 6 electron. - TIER 3 | view |
| N67ENTX68.00 | NEF 6 electron. - TIER 3 | view |
| NEF67TE2.X001 | NEF 6 electron. - TIER 3 | view |
| NEF67TE1X.A001 | NEF 6 electron. - TIER 3 | view |
| NEF67TE2X.R981 | NEF 6 electron. - TIER 3 | view |
| NEF67TE1X.R981 | NEF 6 electron. - TIER 3 | view |
| NEF67TE1X.A008 | NEF 6 electron. - TIER 3 | view |
| NEF67TE2X.A008 | NEF 6 electron. - TIER 3 | view |
| NEF67TE2X.A570 | NEF 6 electron. - TIER 3 | view |
