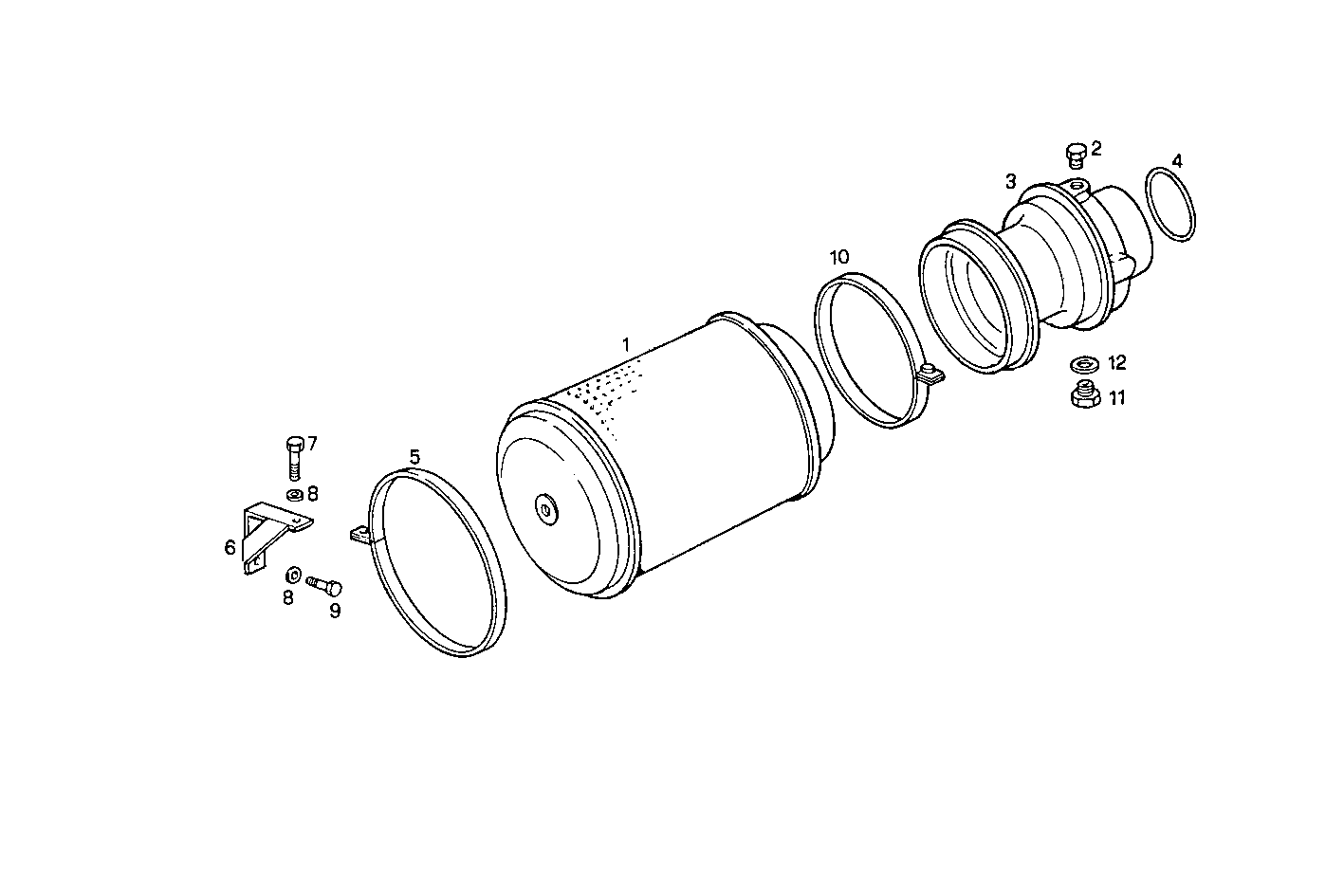

AIR CLEANER
Assembly ID: 2210.043
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8015887 | AIR CLEANER | 1 | ||
| 2 | 8105144 | PLUG | 1 | ||
| 3 | 8017059 | INTAKE ELBOW | 1 | ||
| 4 | 17290481 | O-RING | 1 | ||
| 5 | 8017225 | CLIP | 1 | ||
| 6 | 8017075 | RETAINER | 1 | ||
| 7 | 16605824 | HEXAGON BOLT | 1 | ||
| 8 | 17089474 | SPRING WASHER | 3 | ||
| 9 | 16605424 | SCREW | 2 | ||
| 10 | 8017274 | CLIP | 1 | ||
| 11 | 16992211 | THREADED PLUG | 1 | ||
| 12 | 4858607 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM25.12 | 8061SRM25 | view |
| 8061SRM33.10 | 8061SRM33 | view |
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
| 8061SRM33.12 | 8061SRM33 | view |
| 8060SM21.10 | 8060SM21 | view |
| 8060SRM25.10 | 8060SRM25 | view |
| 8060SRM25.11 | 8060SRM25 | view |
| 8060SRM33.10 | 8060SRM33 | view |
| 8060SRM33.10A001 | 8060SRM33 | view |
| 8060SRM33.10A002 | 8060SRM33 | view |
