| 1 |
8039480
|

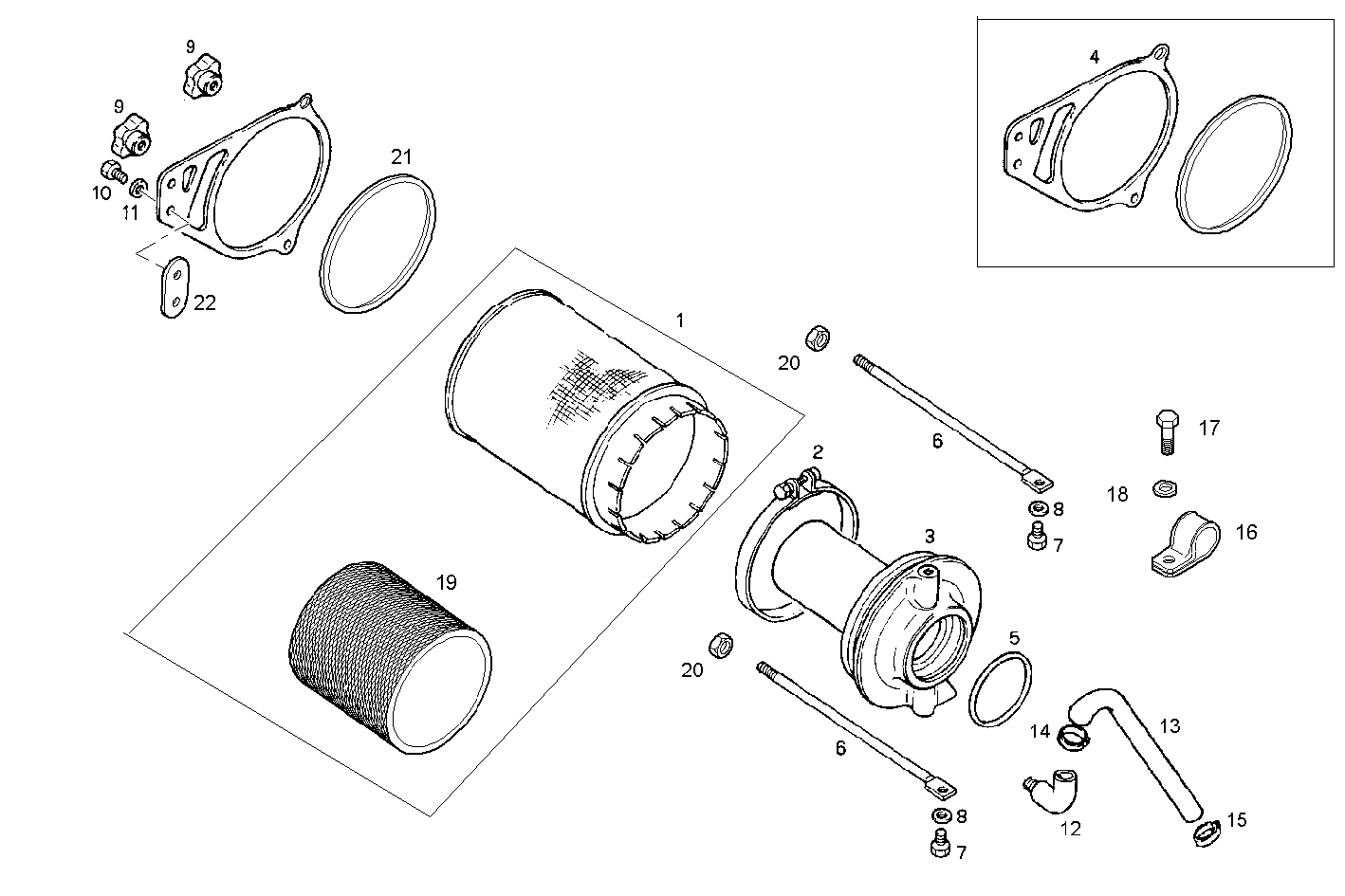

AIR CLEANER
|
|
1
|
|
| 2 |
8017374
|
CLIP
|
|
1
|
|
| 3 |
8042451
|
AIR MANIFOLD
|
|
1
|
|
| 4 |
8042464
|
FASTENING BRACKET
|
|
1
|
|
| 5 |
17292281
|
O-RING
|
|
2
|
|
| 6 |
8040219
|
STUD
|
|
2
|
|
| 7 |
16603677
|
HEXAGON BOLT
|
|
2
|
|
| 8 |
17088474
|
WASHER
|
|
2
|
|
| 9 |
8030569
|
HANDWHEEL
|
|
2
|
|
| 10 |
16605624
|
HEXAGON BOLT
|
|
2
|
|
|
16605635 |
HEXAGON BOLT |
|
2 |
|
| 11 |
17089474
|
SPRING WASHER
|
|
2
|
|
| 12 |
4527314
|
PIPE SOCKET
|
|
1
|
|
| 13 |
8040558
|
AIR HOSE
|
|
1
|
|
| 14 |
17764693
|
CLIP
|
|
1
|
|
| 15 |
17764593
|
CLIP
|
|
1
|
|
| 16 |
17317390
|
FASTENING BRACKET
|
|
1
|
|
| 17 |
16605424
|
SCREW
|
|
1
|
|
| 18 |
17089474
|
SPRING WASHER
|
|
1
|
|
| 19 |
8040501
|
AIR FILTER ELEMENT
|
|
1
|
|
| 20 |
17037821
|
HEXAGON NUT
|
|
2
|
|
| 21 |
8042413
|
RUBBER GASKET
|
|
1
|
|
| 22 |
8047963
|
CONNECTING PLATE
|
|
1
|
|
