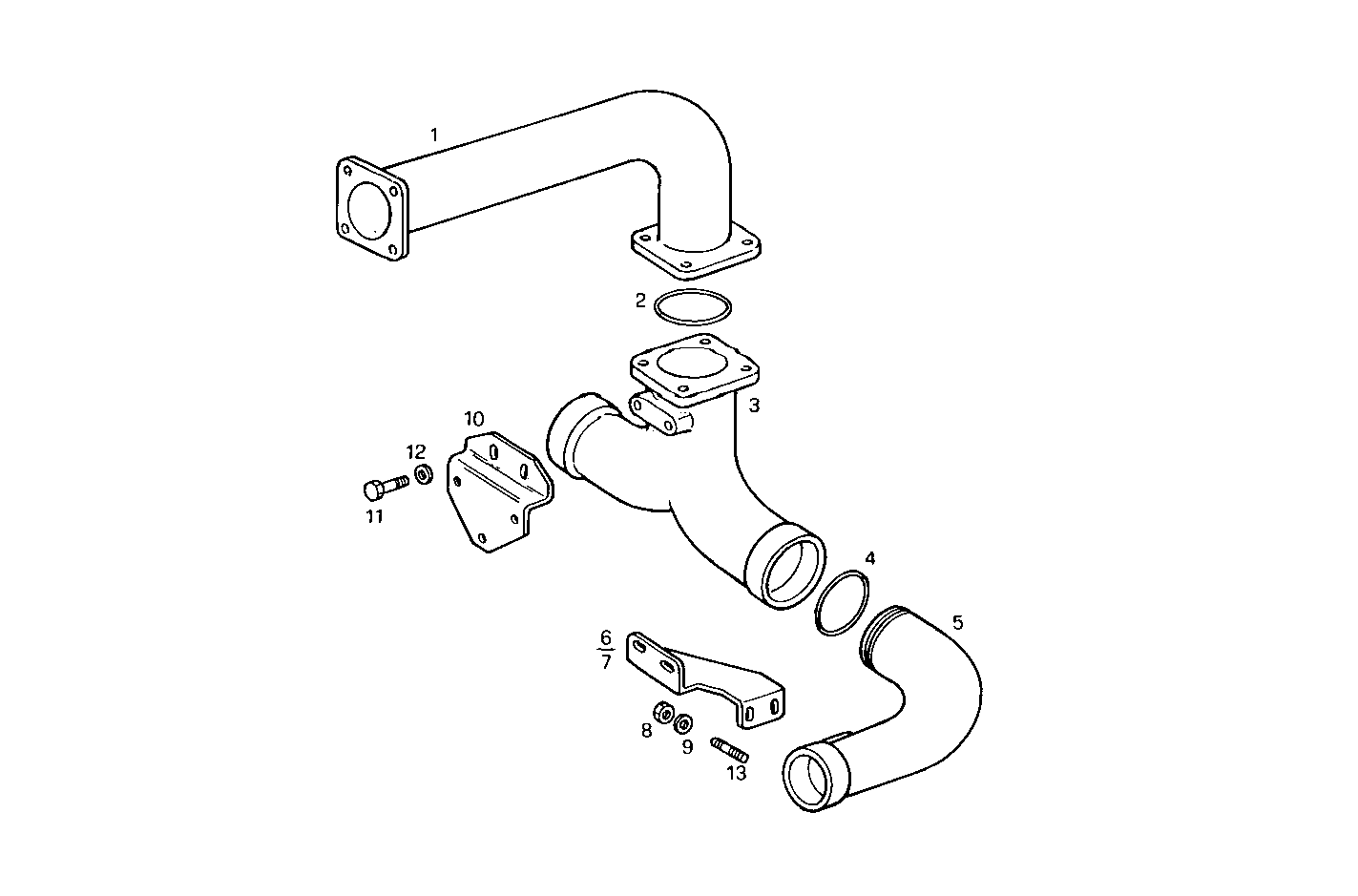

AIR LINES
Assembly ID: 2220.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8022951 | AIR MANIFOLD | 1 | ||
| 2 | 17292181 | O-RING | 1 | ||
| 3 | 8022817 | AIR MANIFOLD | 1 | ||
| 4 | 17291281 | O-RING | 2 | ||
| 5 | 8022672 | AIR MANIFOLD | 2 | ||
| 6 | 8022209 | RETAINER | 1 | ||
| 7 | 8022211 | RETAINER | 1 | ||
| 8 | 17037931 | HEXAGON NUT | 4 | ||
| 9 | 17089674 | SPRING WASHER | 4 | ||
| 10 | 8022212 | RETAINER | 1 | ||
| 11 | 16607624 | SCREW | 5 | ||
| 12 | 17090174 | SPRING WASHER | 5 | ||
| 13 | 16729224 | STUD | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8291SRG75.10A80S | GE8291SRG75 | view |
| GE8291SRG75.10A85S | GE8291SRG75 | view |
| GE8291SRG85.10A80S | GE8291SRG85 | view |
| GE8291SRG85.10A85S | GE8291SRG85 | view |
| 8291SRG75.10 | 8291SRG75 | view |
| 8291SRG85.10 | 8291SRG85 | view |
| 8291SRG75.10A500 | 8291SRG75 | view |
| 8291SRG85.10A500 | 8291SRG85 | view |
| 8291SRG75.10A510 | 8291SRG75 | view |
| 8291SRG85.10A510 | 8291SRG85 | view |
