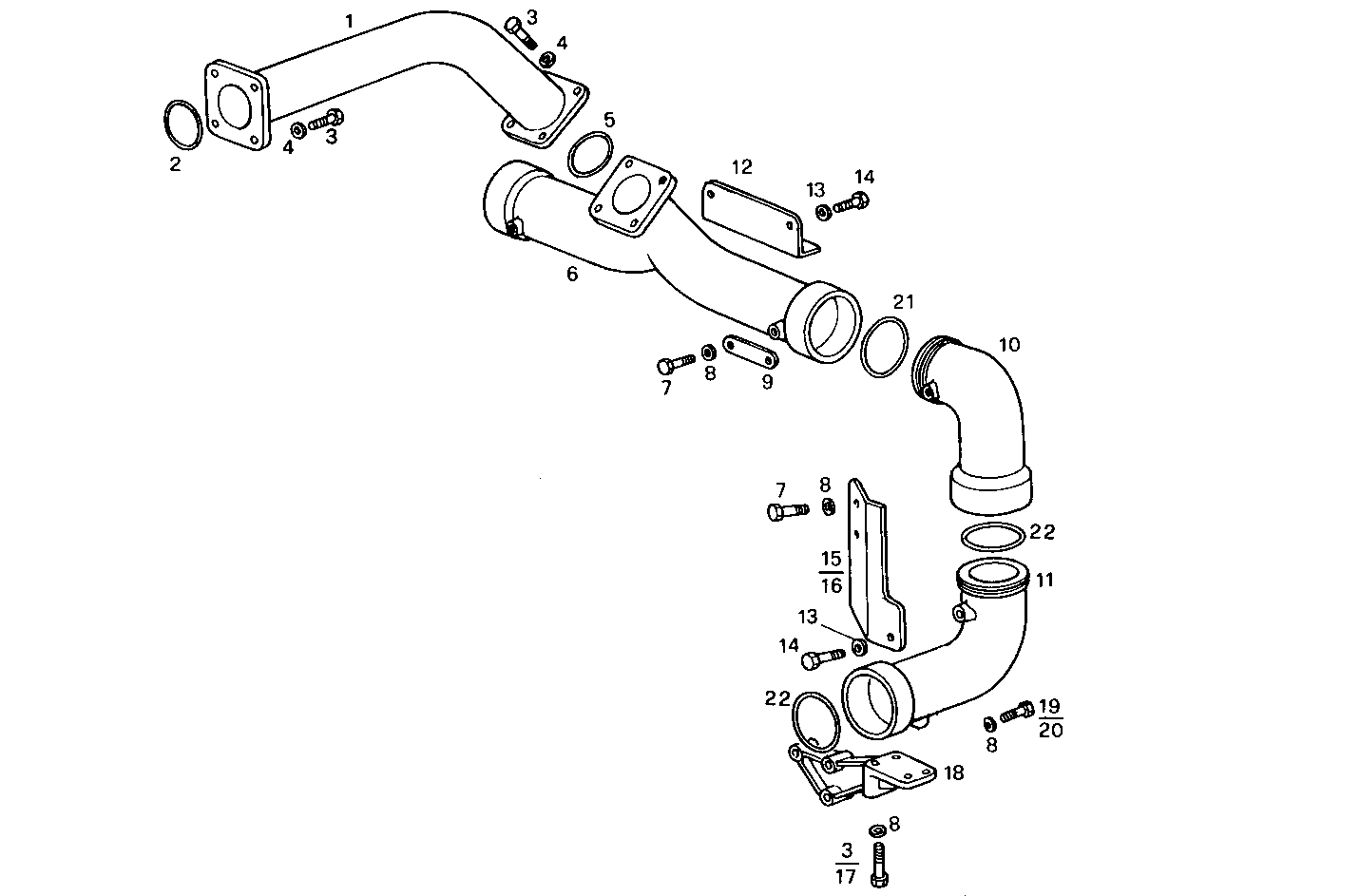

| 1 |
8024392
|
AIR PIPE/DUCT
|
|
1
|
|
| 2 |
17292181
|
O-RING
|
|
2
|
|
| 3 |
16605624
|
HEXAGON BOLT
|
|
10
|
|
|
16605635 |
HEXAGON BOLT |
|
10 |
|
| 4 |
17089774
|
SPRING WASHER
|
|
8
|
|
| 5 |
17291481
|
O-RING
|
|
1
|
|
| 6 |
8022706
|
AIR PIPE/DUCT
|
|
1
|
|
| 7 |
16605524
|
HEXAGON BOLT
|
|
10
|
|
| 8 |
17089474
|
SPRING WASHER
|
|
20
|
|
| 9 |
8022707
|
RETAINER
|
|
2
|
|
| 10 |
8022672
|
AIR MANIFOLD
|
|
2
|
|
| 11 |
8022704
|
AIR PIPE/DUCT
|
|
2
|
|
| 12 |
8022677
|
RETAINER
|
|
1
|
|
| 13 |
17090174
|
SPRING WASHER
|
|
6
|
|
| 14 |
16607624
|
SCREW
|
|
6
|
|
| 15 |
8022852
|
RETAINER
|
|
1
|
|
| 16 |
8022853
|
RETAINER
|
|
1
|
|
| 17 |
16606324
|
HEXAGON BOLT
|
|
2
|
|
| 18 |
8113863
|
SUPPORT
|
|
2
|
|
| 19 |
16046021
|
HEXAGON BOLT
|
|
4
|
|
| 20 |
16606024
|
SCREW
|
|
2
|
|
| 21 |
17291281
|
O-RING
|
|
2
|
|
| 22 |
17290481
|
O-RING
|
|
4
|
|
