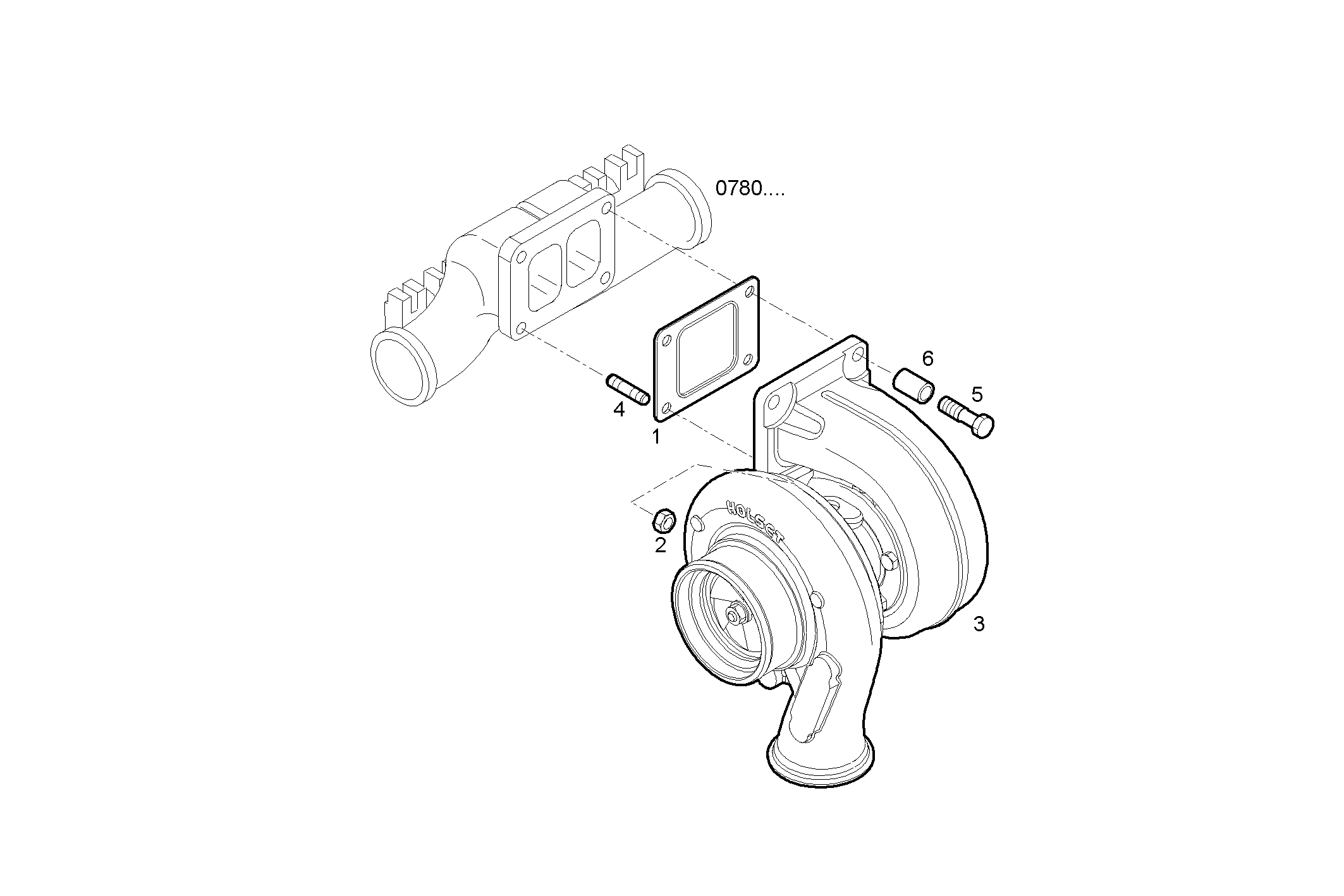

TURBOCHARGER
Assembly ID: 2400.004
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98451118 | GASKET | 1 | ||
| 2 | 500300795 | HEXAGON NUT | 2 | ||
| 3 | 504171476 | TURBOCHARGER | 1 | ||
| 4 | 504137528 | STUD | 2 | ||
| 5 | 504078465 | SCREW | 2 | ||
| 6 | 504301056 | SPACING BAR | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684E*E004 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
