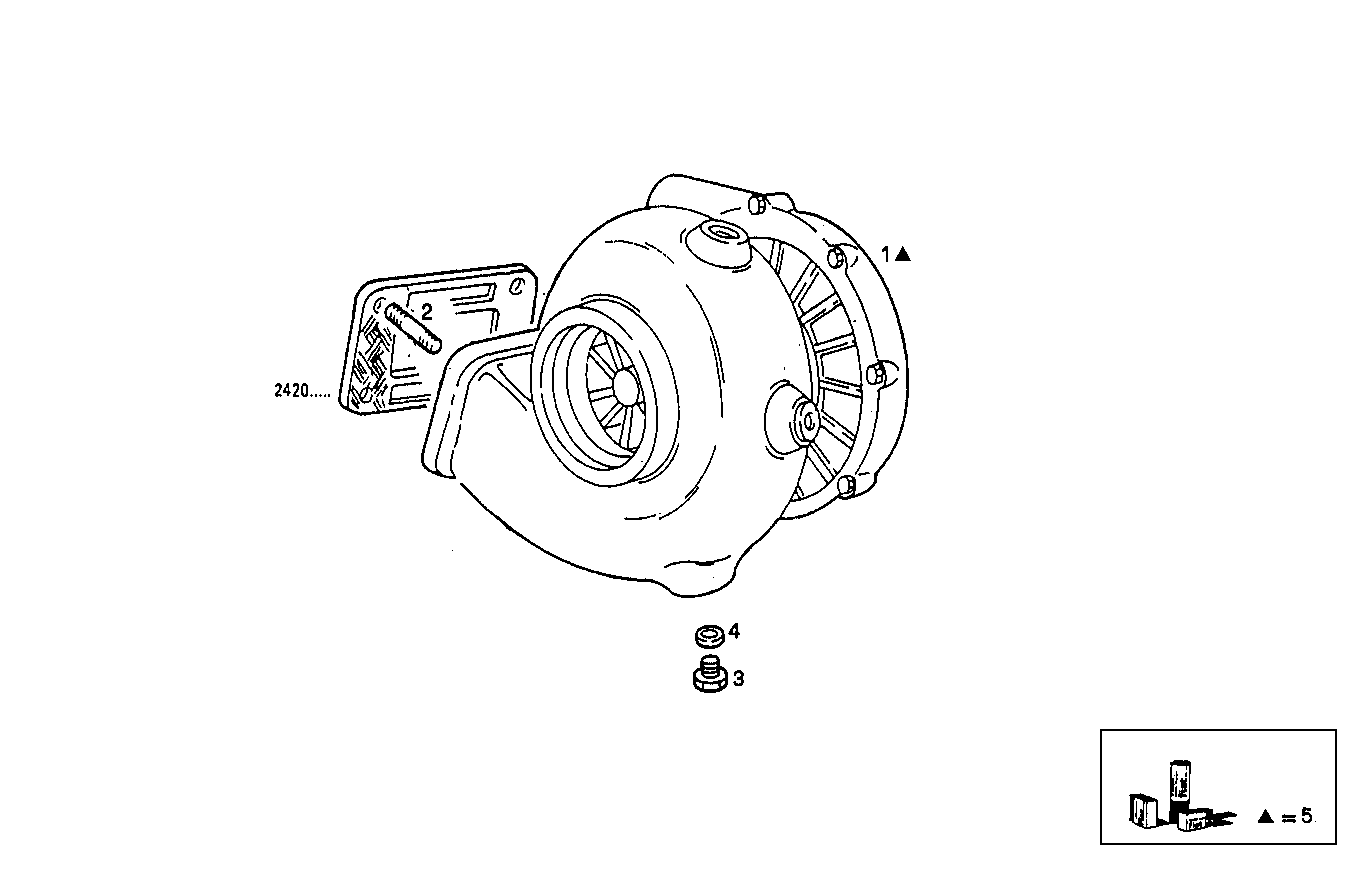

TURBOCHARGER
Assembly ID: 2400.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8110701 | WATER COOL.TURBOCHARGER | 1 | ||
| 2 | 8109009 | STUD | 4 | ||
| 3 | 4753563 | PLUG | 1 | ||
| 4 | 4858606 | GASKET | 1 | ||
| 5 | 8092079 | KIT-TURBOCHARGER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8041SRM15.10 | 8041SRM15 | view |
| 8040SRM16.10 | 8040SRM16 | view |
