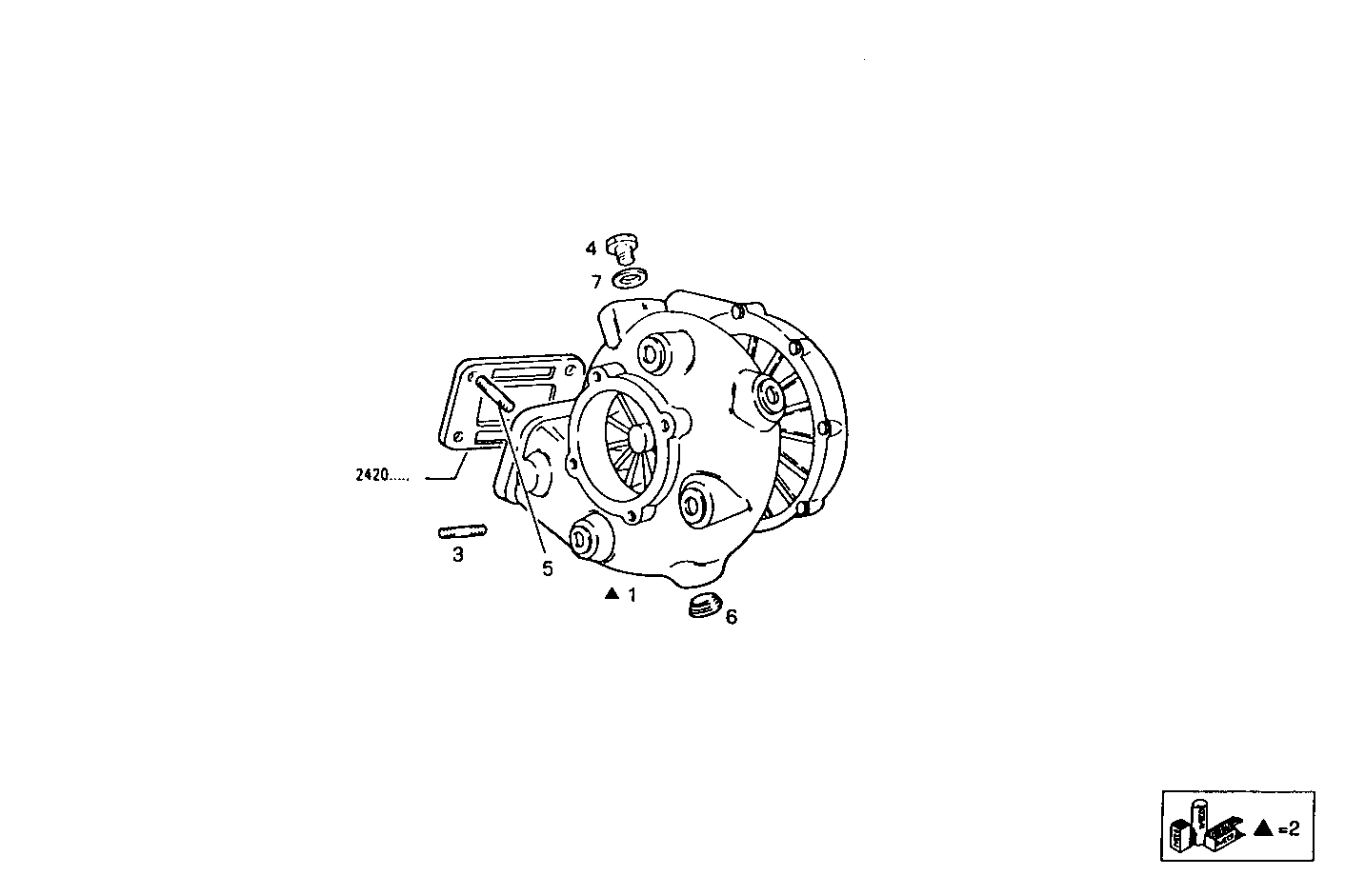

TURBOCHARGER
Assembly ID: 2400.008
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8113320 | WATER COOL.TURBOCHARGER | 1 | ||
| 2 | 8092079 | KIT-TURBOCHARGER | 1 | ||
| 3 | 4667393 | STUD | 4 | ||
| 4 | 8113358 | PIPE SOCKET | 1 | ||
| 5 | 8109009 | STUD | 4 | ||
| 6 | 10275040 | LOCK PLUG | 4 | ||
| 7 | 10263460 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM24.10 | 8061SRM24 | view |
