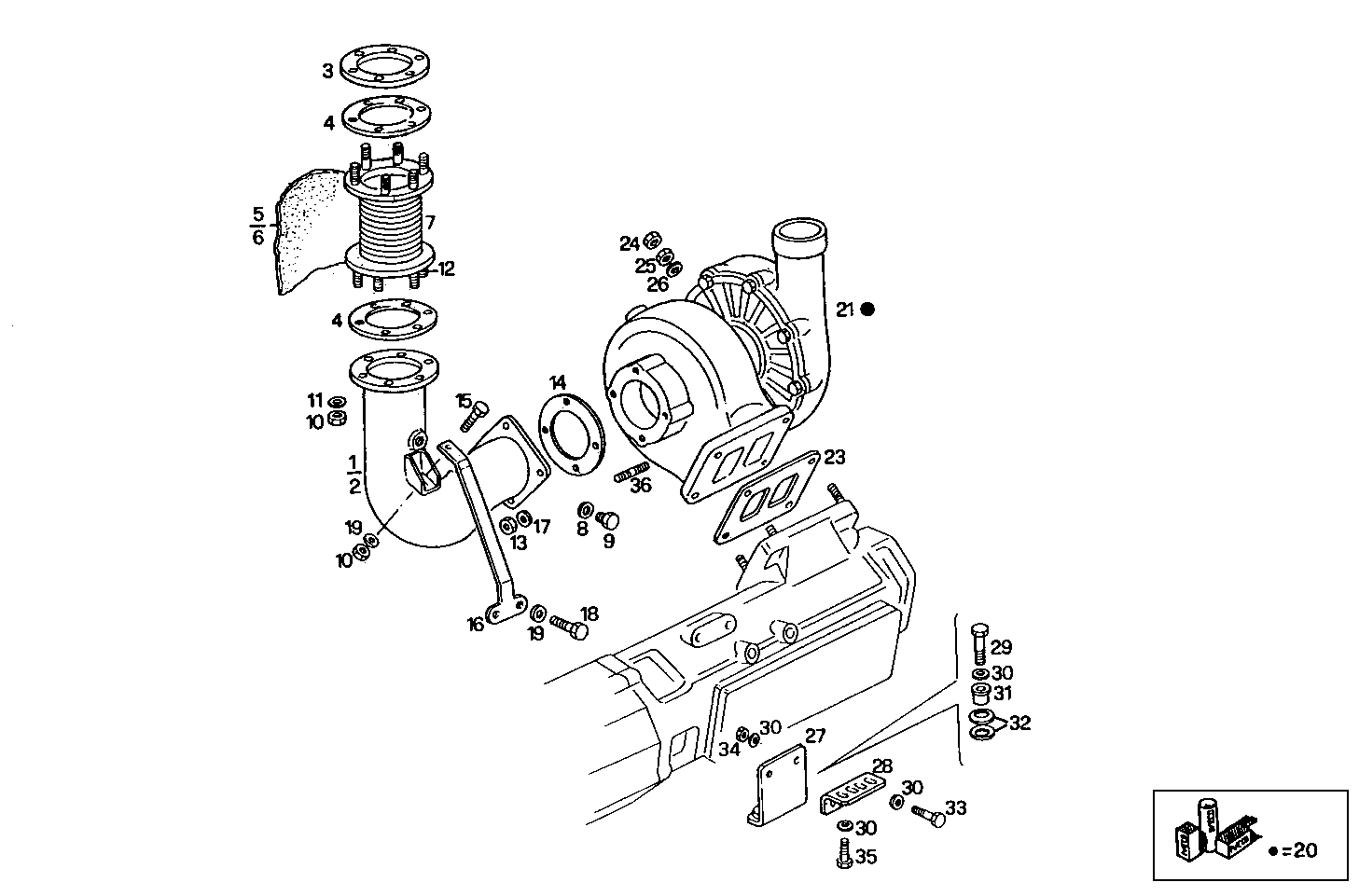

TURBOCHARGER

Assembly ID: 2400.010

TURBOCHARGER

Parts

# Part number Description Note Quantity
1 8110580 EXHAUST ELBOW 1
2 8110581 EXHAUST ELBOW 1
3 8103591 FLANGE 2
4 8009600 GASKET 4
5 8104111 PROTECTION 1
6 8104112 PROTECTION 1
7 8024880 EXHAUST BELLOWS 2
8 4858607 WASHER 2
9 16992211 THREADED PLUG 2
10 17038131 HEXAGON NUT 26
11 17090174 SPRING WASHER 24
12 16731234 STUD 12
13 17037931 HEXAGON NUT 8
14 8111833 GASKET 2
15 16607524 HEXAGON BOLT 2
16 8106127 RETAINER 2
17 17089474 SPRING WASHER 8
18 15003921 HEXAGON BOLT 4
19 17090174 SPRING WASHER 6
20 8090770 KIT-TURBOCHARGER 2
21 8110129 WATER COOL.TURBOCHARGER 2
23 8027510 FLAT ENGINE GASKET 2
24 16979731 NUT 8
25 17038221 HEXAGON NUT 8
26 16665604 WASHER 8
27 8112566 RETAINER 2
28 8112565 RETAINER 2
29 11307021 HEXAGON BOLT 4
30 11190579 SPRING WASHER 16
31 8110050 BUSH 4
32 8110051 SPRING 16
33 15004021 HEXAGON BOLT 4
34 17153021 HEXAGON NUT 4
35 15970524 HEXAGON BOLT 4
36 16729424 STUD 8

Applies to engines

Engine Family
GE8281SRM44.10A60E GE8281SRM44 view
GE8281SRM44.10A61E GE8281SRM44 view
GE8281SRM44.10A62E GE8281SRM44 view
GE8281SRM44.10A67E GE8281SRM44 view
GE8281SRM44.30A60E GE8281SRM44 view
8281SRM44.10 8281SRM44 view
8281SRM44.30 8281SRM44 view
