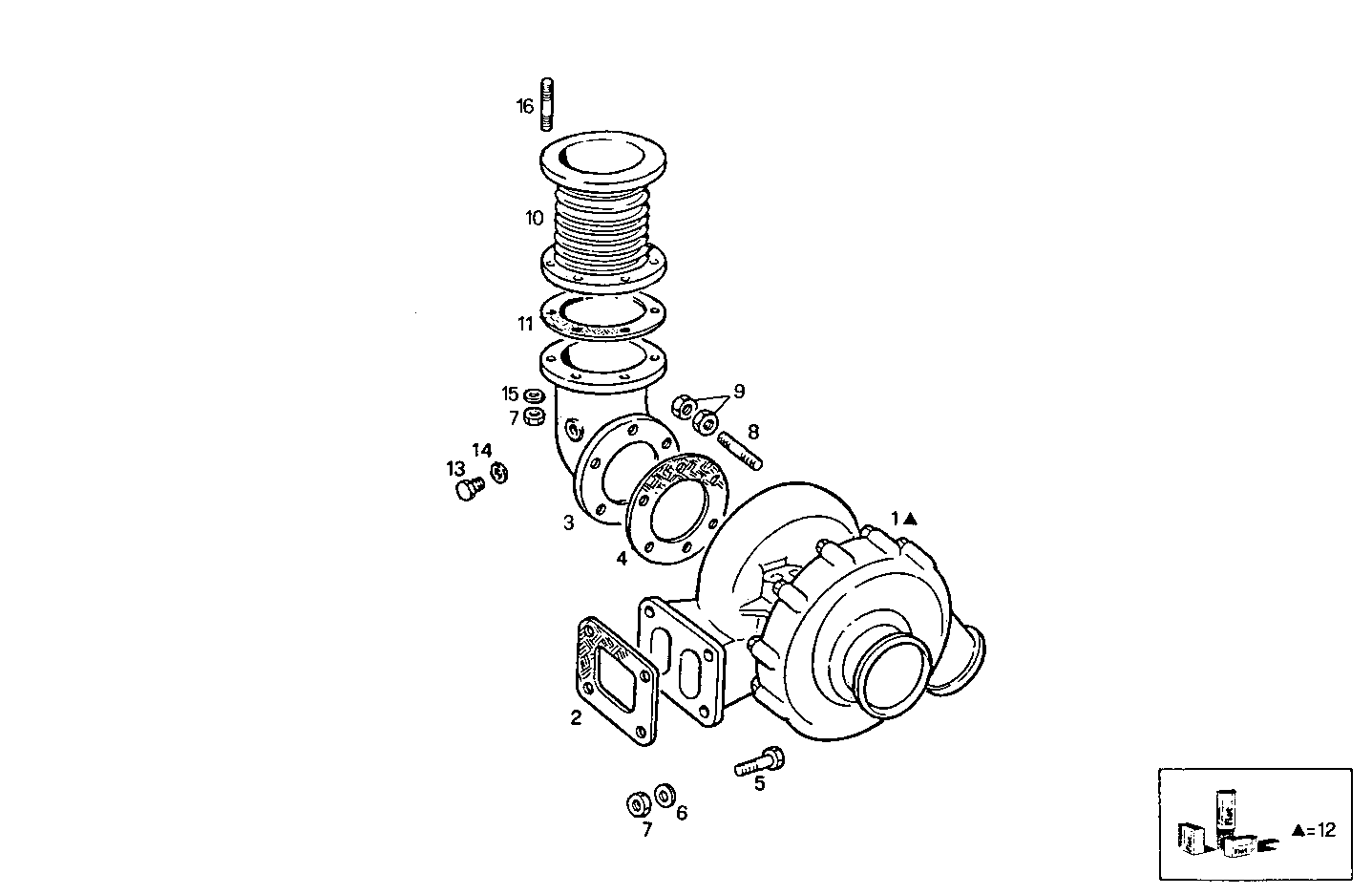

TURBOCHARGER
Assembly ID: 2400.024
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8113994 | TURBOCHARGER | 1 | ||
| 2 | 4512366 | GASKET | 1 | ||
| 3 | 8104510 | EXHAUST ELBOW | 1 | ||
| 4 | 42075987 | GASKET | 1 | ||
| 5 | 4786751 | SCREW | 4 | ||
| 6 | 16665604 | WASHER | 16 | ||
| 7 | 17038221 | HEXAGON NUT | 14 | ||
| 8 | 4731721 | STUD | 6 | ||
| 9 | 8100961 | NUT | 12 | ||
| 10 | 8101671 | EXHAUST BELLOWS | 1 | ||
| 11 | 8009600 | GASKET | 1 | ||
| 12 | 8090852 | KIT-TURBOCHARGER | 1 | ||
| 13 | 16992211 | THREADED PLUG | 1 | ||
| 14 | 4858607 | WASHER | 1 | ||
| 15 | 16665604 | WASHER | 6 | ||
| 16 | 13449524 | STUD | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8210SRi26.01A50L | GE8210SRi26 | view |
| GE8210SRi26.01A50S | GE8210SRi26 | view |
| GE8210SRi26.01A51L | GE8210SRi26 | view |
| GE8210SRi26.01A51S | GE8210SRi26 | view |
| GE8210SRi26.01A52S | GE8210SRi26 | view |
| GE8210SRi26.01A70L | GE8210SRi26 | view |
| GE8210SRi26.01A70S | GE8210SRi26 | view |
| GE8210SRi26.01A71L | GE8210SRi26 | view |
| GE8210SRi26.02A955 | GE8210SRi26 | view |
| GS8210SRi26.02 | GS8210SRi26 | view |
| GS8210SRi26.02A601 | GS8210SRi26 | view |
| GS8210SRi26.02A602 | GS8210SRi26 | view |
| GS8210SRi26.02A651 | GS8210SRi26 | view |
| 8210SRi26.00 | 8210SRi26 | view |
| 8210SRi26.01 | 8210SRi26 | view |
| 8210SRi26.02 | 8210SRi26 | view |
| 8210SRi26.03 | 8210SRi26 | view |
| 8210SRi26.02A550 | 8210SRi26 | view |
| 8210SRi26.02A580 | 8210SRi26 | view |
| 8210SRi26.00A550 | 8210SRi26 | view |
| 8210SRi26.00A580 | 8210SRi26 | view |
| 8210SRi26.01A550 | 8210SRi26 | view |
| 8210SRi26.01A580 | 8210SRi26 | view |
| 8210SRi26.03A550 | 8210SRi26 | view |
| 8210SRi26.03A580 | 8210SRi26 | view |
| 8210SRi26.03A602 | 8210SRi26 | view |
| 8210SRi27.01A603 | 8210SRi27 | view |
| GE8210SRi26.03R970 | GE8210SRi26 | view |
| GE8210SRi26.03A71M | GE8210SRi26 | view |
