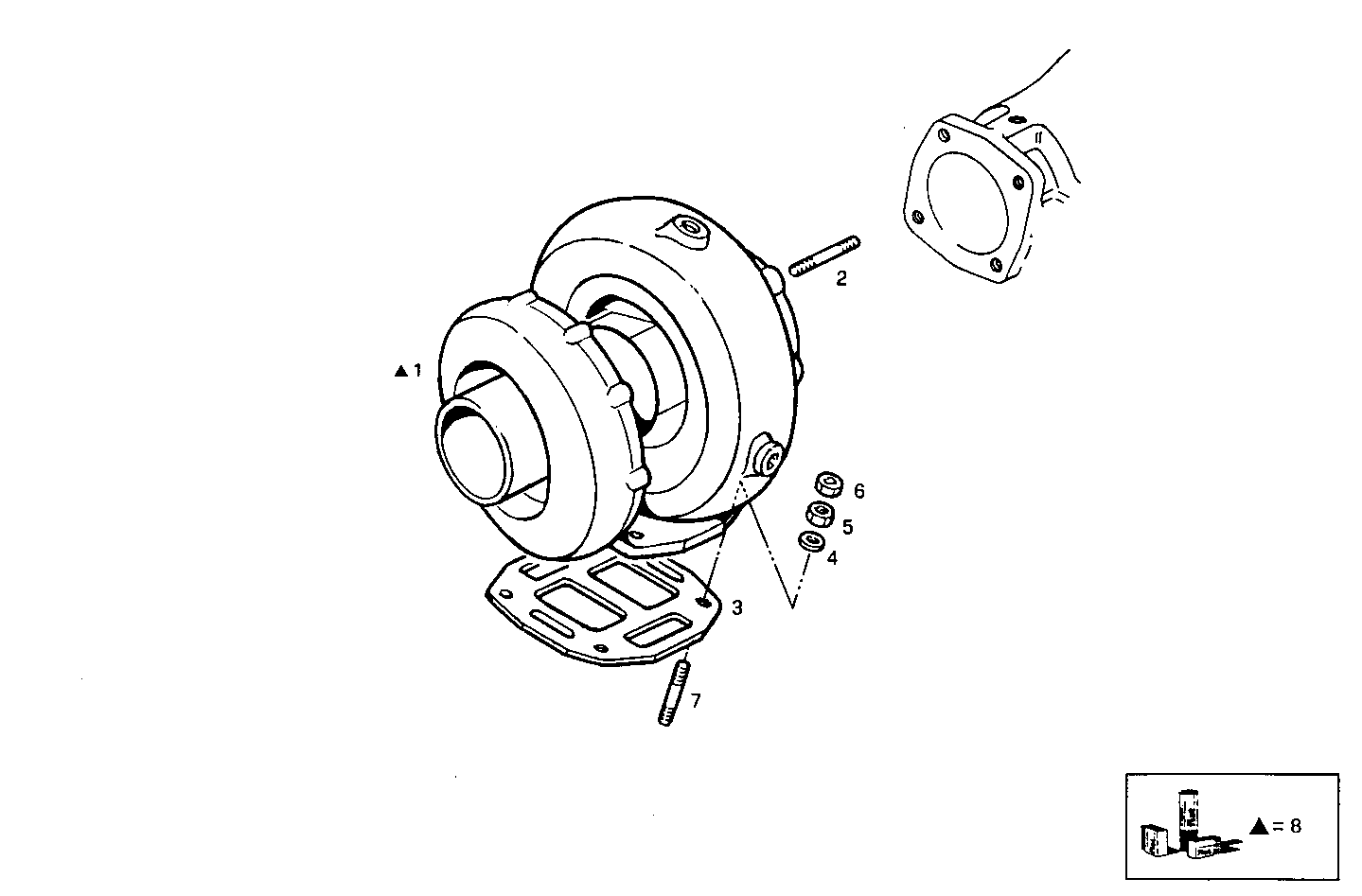

TURBOCHARGER
Assembly ID: 2400.038
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8110129 | WATER COOL.TURBOCHARGER | 1 | ||
| 2 | 16729424 | STUD | 4 | ||
| 3 | 8008697 | GASKET | 1 | ||
| 4 | 17095104 | WASHER | 4 | ||
| 5 | 17038221 | HEXAGON NUT | 4 | ||
| 6 | 16979731 | NUT | 4 | ||
| 7 | 13449824 | STUD | 4 | ||
| 8 | 8009770 | OIL LINE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SM19.12 | 8460SM19 | view |
| 8460SM22.12 | 8460SM22 | view |
| 8460SRM28.12 | 8460SRM28 | view |
| 8460SM19.13 | 8460SM19 | view |
| 8460SRM28.13 | 8460SRM28 | view |
| 8460SM19.13A001 | 8460SM19 | view |
