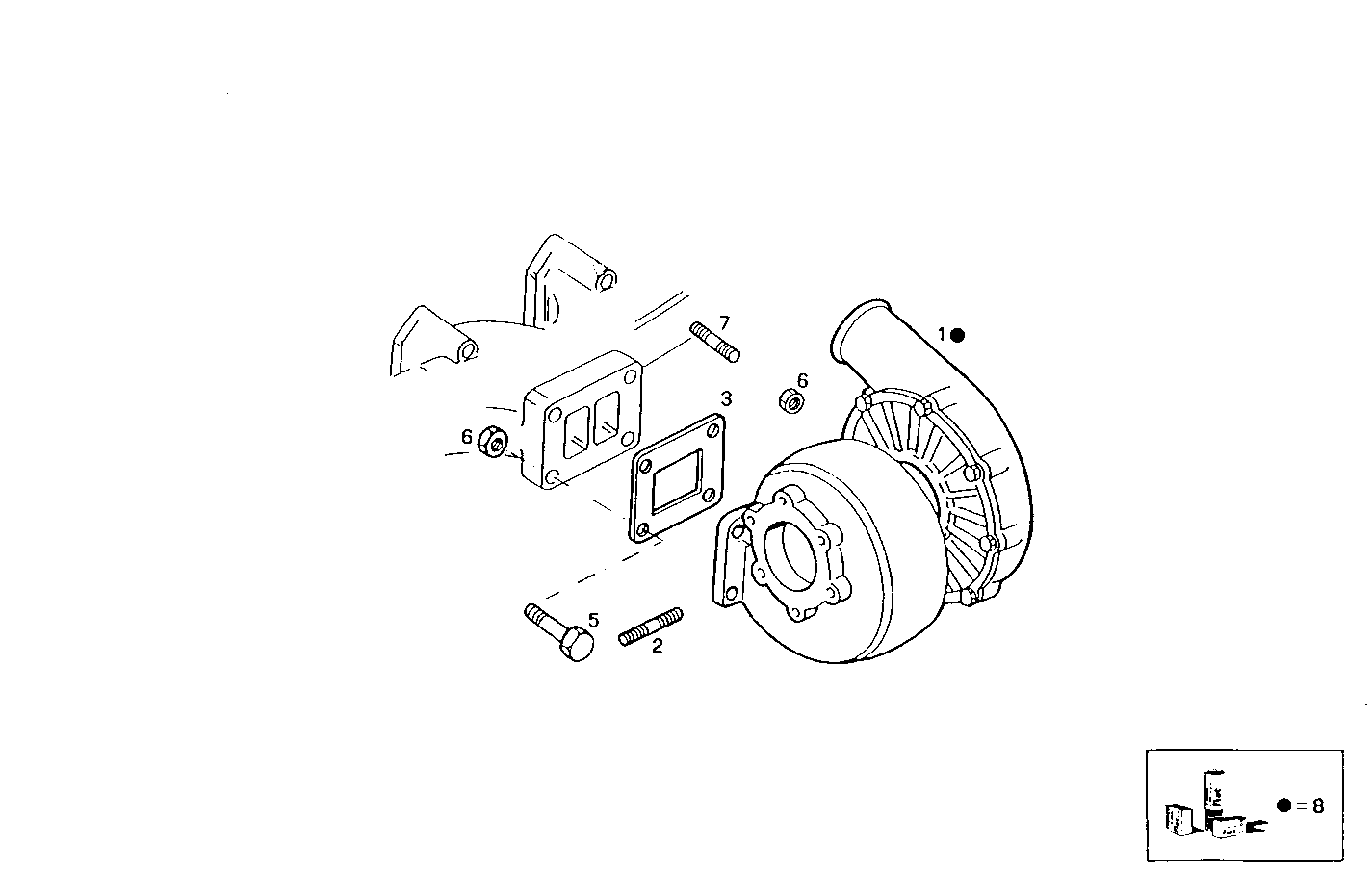

TURBOCHARGER
Assembly ID: 2400.062
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61318802 | TURBOCHARGER | 1 | ||
| 2 | 16729524 | STUD | 6 | ||
| 3 | 61317796 | FLAT ENGINE GASKET | 1 | ||
| 5 | 61318963 | HEXAGON BOLT | 3 | ||
| 6 | 17783791 | NUT | 4 | ||
| 7 | 61321158 | STUD | 1 | ||
| 8 | 93161398 | KIT-TURBOCHARGER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRi10.00 | 8460SRi10 | view |
| 8460SRi10.00A016 | 8460SRi10 | view |
| 8460SRE10.00 | 8460SRE10 | view |
| 8460SRi10.00A020 | 8460SRi10 | view |
| 8460SRE10.00A003 | 8460SRE10 | view |
